Keysight Technologies Data Acquisition Module for Use with 34934A Quad 4 x 32 Reed Matrix Terminal Block
- RS Stock No.:
- 195-3146
- Distrelec Article No.:
- 301-64-417
- Mfr. Part No.:
- 34934T-001
- Manufacturer:
- Keysight Technologies
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 195-3146
- Distrelec Article No.:
- 301-64-417
- Mfr. Part No.:
- 34934T-001
- Manufacturer:
- Keysight Technologies
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Keysight Technologies | |
| Product Type | Data Acquisition Module | |
| Accessory Type | Terminal Block | |
| For Use With | 34934A Quad 4 x 32 Reed Matrix | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand Keysight Technologies | ||
Product Type Data Acquisition Module | ||
Accessory Type Terminal Block | ||
For Use With 34934A Quad 4 x 32 Reed Matrix | ||
Standards/Approvals No | ||

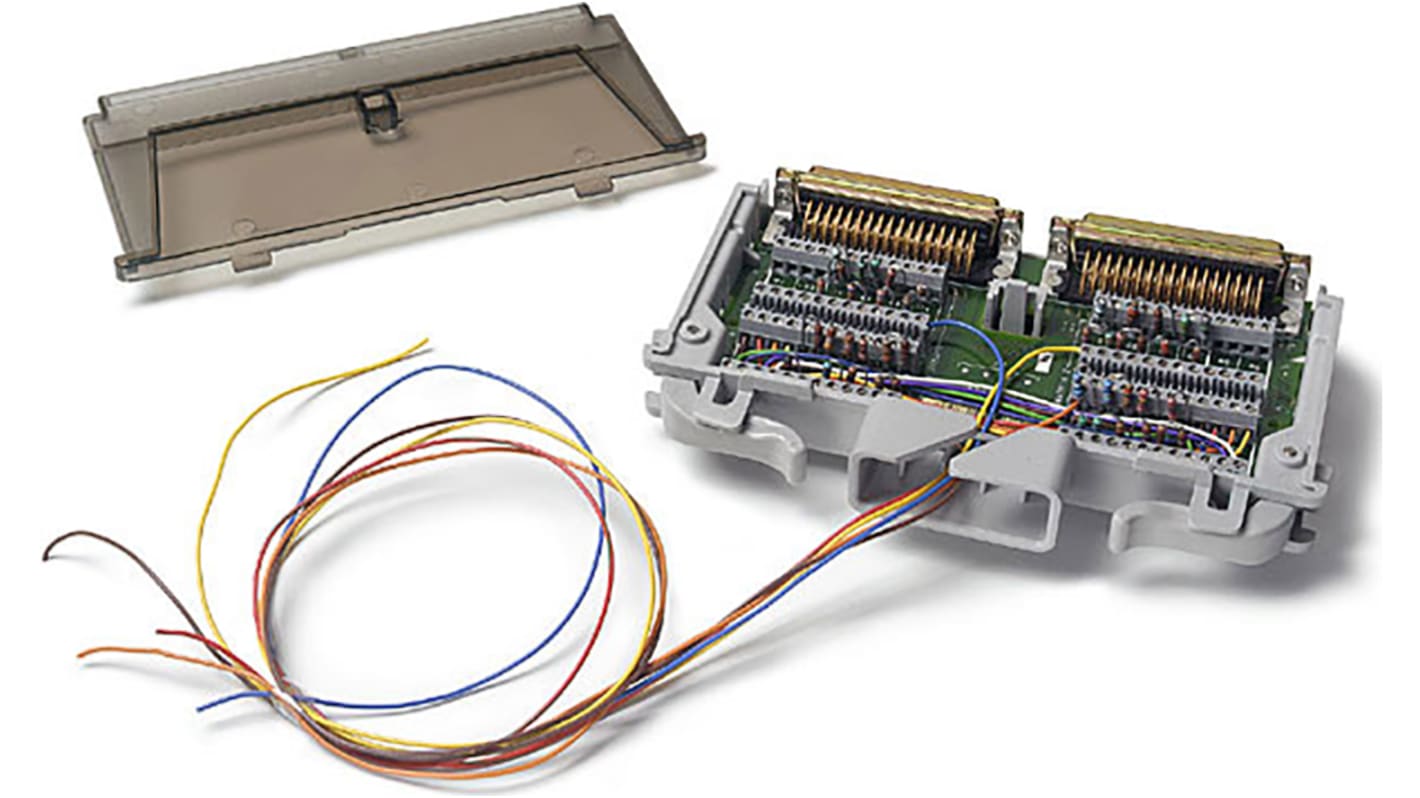

This terminal block is used for discrete wiring. A fully loaded terminal blocks supports up to 20 AWG wire size typical or 24 AWG if all 144 lines are used. Terminal block 34934T-001 can be used for 4x128 1-wire, 4x64 2-wire, or dual/quad 4x32. Terminal block 34934T-002 can be used for 8x64 1-wire, 8x32 2-wire, or 16x32 1-wire. Expansion headers are also provided for creating larger matrices.
