Units	Per Unit	Per Reel**
3000 - 3000	MYR1.443	MYR4,329.00
6000 - 9000	MYR1.411	MYR4,233.00
12000 +	MYR1.385	MYR4,155.00

Select all	Attribute	Value
	Brand	DiodesZetex
	Transistor Type	NPN
	Maximum Continuous Collector Current	1 A
	Maximum Collector Emitter Voltage	120 V
	Maximum Emitter Base Voltage	10 V
	Package Type	SOT-23F
	Mounting Type	Surface Mount
	Pin Count	3
	Transistor Configuration	Single
	Number of Elements per Chip	2
	Minimum DC Current Gain	1000
	Maximum Base Emitter Saturation Voltage	1.7 V
	Maximum Collector Base Voltage	140 V
	Maximum Collector Emitter Saturation Voltage	1.5 V
	Maximum Collector Cut-off Current	0.01mA
	Dimensions	3 x 1.7 x 1mm
	Minimum Operating Temperature	-55 °C
	Height	1mm
	Width	1.7mm
	Maximum Power Dissipation	2 W
	Length	3mm
	Maximum Operating Temperature	+150 °C

	Select all
	Brand DiodesZetex
	Transistor Type NPN
	Maximum Continuous Collector Current 1 A
	Maximum Collector Emitter Voltage 120 V
	Maximum Emitter Base Voltage 10 V
	Package Type SOT-23F
	Mounting Type Surface Mount
	Pin Count 3
	Transistor Configuration Single
	Number of Elements per Chip 2
	Minimum DC Current Gain 1000
	Maximum Base Emitter Saturation Voltage 1.7 V
	Maximum Collector Base Voltage 140 V
	Maximum Collector Emitter Saturation Voltage 1.5 V
	Maximum Collector Cut-off Current 0.01mA
	Dimensions 3 x 1.7 x 1mm
	Minimum Operating Temperature -55 °C
	Height 1mm
	Width 1.7mm
	Maximum Power Dissipation 2 W
	Length 3mm
	Maximum Operating Temperature +150 °C

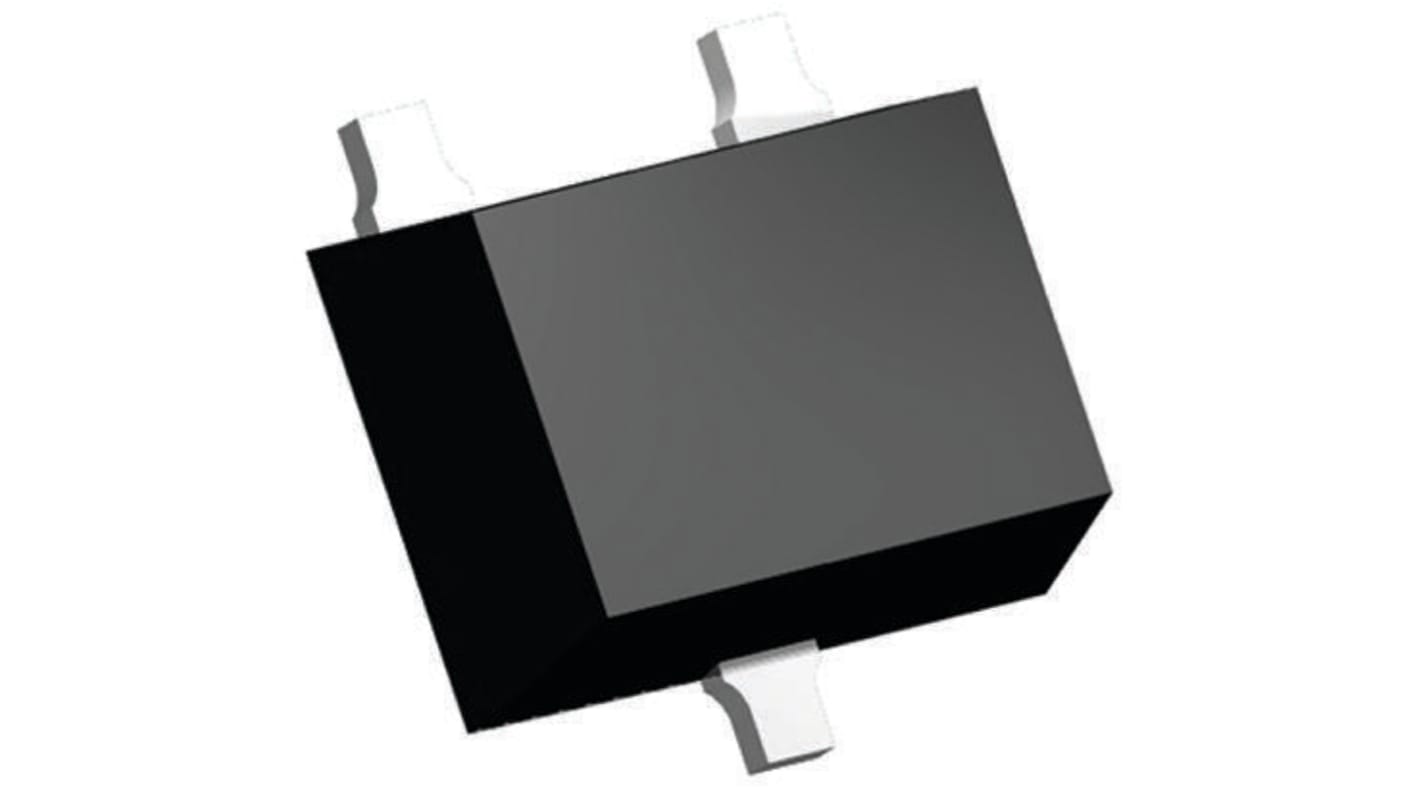

Diodes Inc ZXTN04120HFFTA Dual NPN Darlington Transistor, 1 A 120 V HFE:1000, 3-Pin SOT-23F

FREE delivery for orders over MYR500.00

Darlington Transistors, Diodes Inc

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
