Norcomp, 170 Series, size 20 Male Crimp D-Sub Connector Contact, Gold Pin 18 AWG
- RS Stock No.:
- 207-1010
- Mfr. Part No.:
- 170-101-170L001
- Manufacturer:
- Norcomp

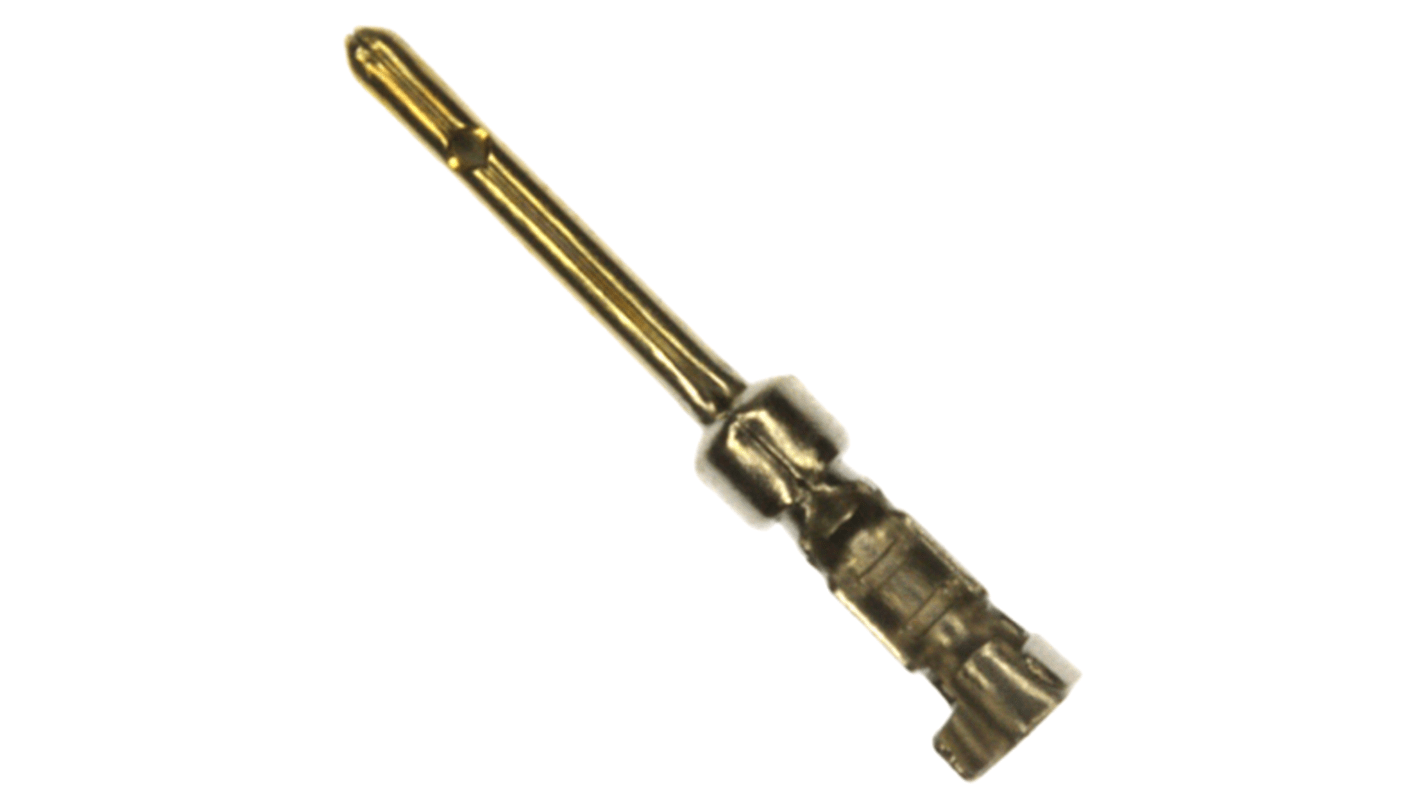

This image is representative of the product range
Subtotal (1 pack of 100 units)*
MYR47.80
FREE delivery for orders over RM 500.00
In Stock
- 700 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Pack* |
|---|---|---|
| 100 + | MYR0.478 | MYR47.80 |
*price indicative
- RS Stock No.:
- 207-1010
- Mfr. Part No.:
- 170-101-170L001
- Manufacturer:
- Norcomp
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Norcomp | |
| Product Type | D-Sub Connector Contact | |
| Gender | Male | |
| Contact Material | Brass | |
| Contact Plating | Gold | |
| Current | 5A | |
| Contact Type | Pin | |
| Series | 170 | |
| Contact Size | 20 | |
| Termination Type | Crimp | |
| Standards/Approvals | RoHS | |
| Maximum Wire Size AWG | 18 AWG | |
| Minimum Wire Size AWG | 28 AWG | |
| Select all | ||
|---|---|---|
Brand Norcomp | ||
Product Type D-Sub Connector Contact | ||
Gender Male | ||
Contact Material Brass | ||
Contact Plating Gold | ||
Current 5A | ||
Contact Type Pin | ||
Series 170 | ||
Contact Size 20 | ||
Termination Type Crimp | ||
Standards/Approvals RoHS | ||
Maximum Wire Size AWG 18 AWG | ||
Minimum Wire Size AWG 28 AWG | ||
- COO (Country of Origin):
- TW
The Norcomp 170 series male D-sub crimp contacts is a low cost and high performance stamped & machined contacts. The crimp contacts is mad e of brass material over nickel gold plating. The insulation support feature for increased wire retention.
Reliable crimp
Snap-in contact
wire size = 24- 28 AWG
