HARTING D-Sub 25 Way Right Angle, Right Angle 2.76 mm Pitch Through Hole, Through Hole D-Sub Connector, with M3 Threaded
- RS Stock No.:
- 922-9705
- Mfr. Part No.:
- 09663127601
- Manufacturer:
- HARTING

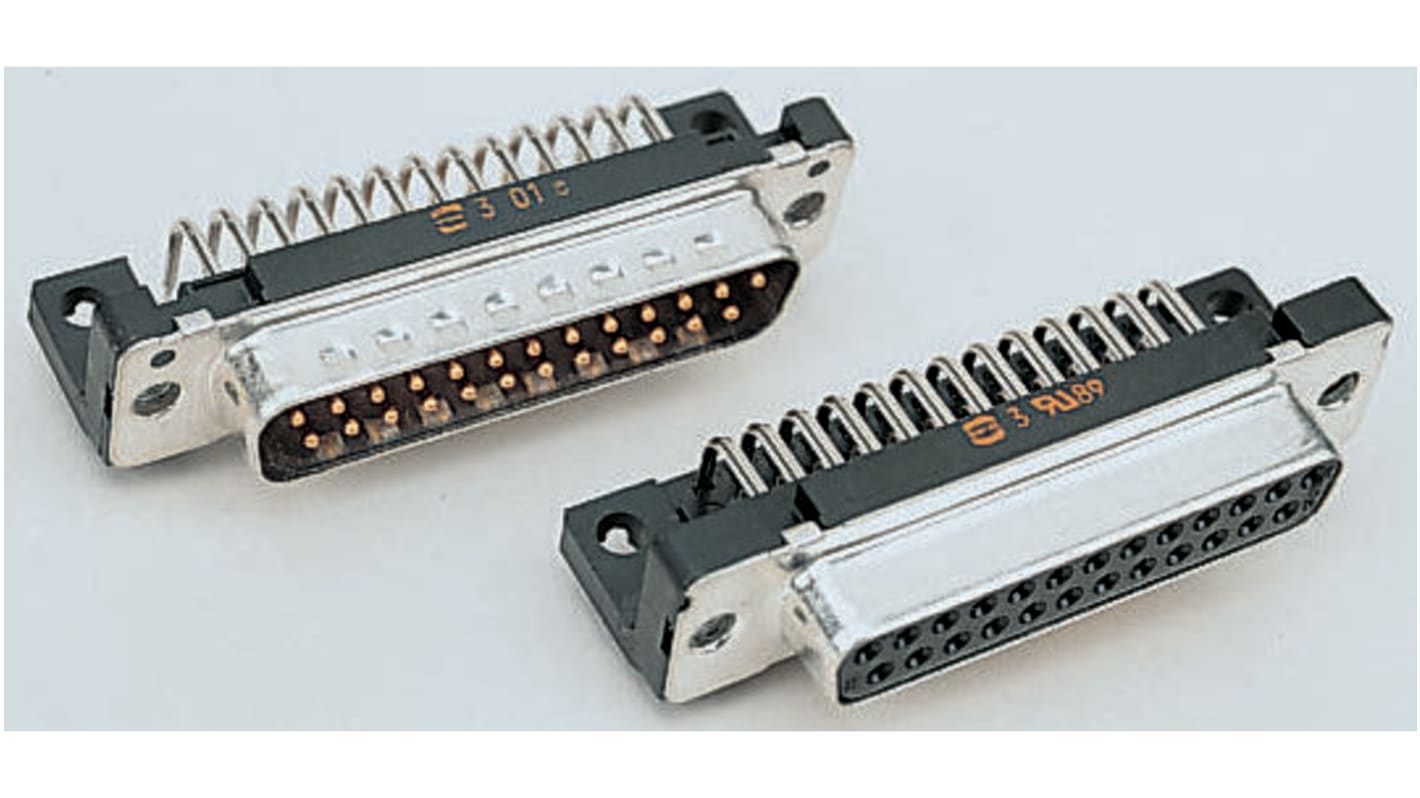

This image is representative of the product range
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 922-9705
- Mfr. Part No.:
- 09663127601
- Manufacturer:
- HARTING
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | HARTING | |
| Series | D-Sub | |
| Number of Contacts | 25 | |
| Orientation | Right Angle, Right Angle | |
| Pitch | 2.76 mm | |
| Mount Type | Through Hole, Through Hole | |
| Product Type | D-Sub Connector | |
| Mounting Hardware | M3 Threaded Insert, M3 Threaded Insert | |
| Connector Gender | Female | |
| Connector Type D | Standard | |
| Contact Gender | Female | |
| Contact Material | Copper Alloy | |
| Current | 6.5 A | |
| D-Sub Shell Size | D | |
| Housing Material | Metal, Metal | |
| Maximum Operating Temperature | 125 °C | |
| Minimum Operating Temperature | -55 °C | |
| Standards/Approvals | No | |
| Termination Type | Solder | |
| Voltage | 1 kV | |
| Select all | ||
|---|---|---|
Brand HARTING | ||
Series D-Sub | ||
Number of Contacts 25 | ||
Orientation Right Angle, Right Angle | ||
Pitch 2.76 mm | ||
Mount Type Through Hole, Through Hole | ||
Product Type D-Sub Connector | ||
Mounting Hardware M3 Threaded Insert, M3 Threaded Insert | ||
Connector Gender Female | ||
Connector Type D Standard | ||
Contact Gender Female | ||
Contact Material Copper Alloy | ||
Current 6.5 A | ||
D-Sub Shell Size D | ||
Housing Material Metal, Metal | ||
Maximum Operating Temperature 125 °C | ||
Minimum Operating Temperature -55 °C | ||
Standards/Approvals No | ||
Termination Type Solder | ||
Voltage 1 kV | ||
- COO (Country of Origin):
- CN
Harting 2.54mm DIN 41652 Standard D-Sub Connectors, Stamped Pins
With integral mounting bracket
Suitable for installations with gaps of 2.54 mm or 2.84 mm between rows
Standards
MIL-C-24308; DIN 41652; CECC 75301-802
