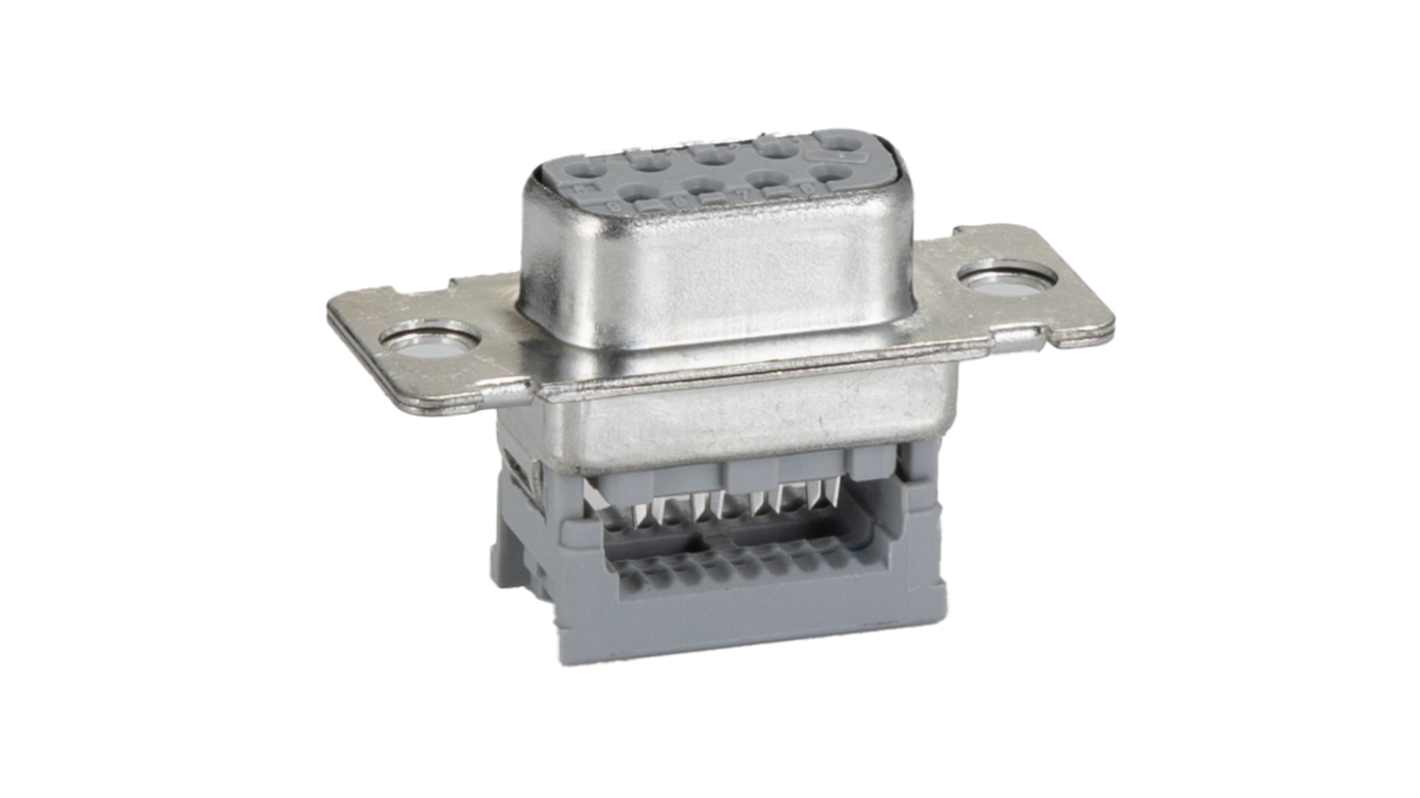

3M 8300 9 Way Right Angle Cable Mount D-sub Connector Socket, 2.76mm Pitch

This D-sub connector is a high-density female variant from 3M, designed for efficient electrical connectivity. Measuring 31.2mm in length, 16.6mm in width, and 12.4mm in depth, it is ideal for various applications within the automation and electronics sectors.

• Right angle design optimises space in tight installations
• High-density layout supports up to 9 contacts
• IDC termination method ensures quick and reliable connections
• PBT housing enhances durability and thermal stability
• Rated for 1000V, suitable for high-voltage applications
• Improved metal strain relief secures connections effectively

• Utilised in automation systems
• Ideal for electronic instrumentation
• Suited for industrial machinery connections
• Commonly used in robotic systems
• Effective for telemetry equipment integration

The housing is made from glass-filled polyester (PBT), providing excellent thermal resistance, while the contacts are crafted from copper alloy with gold plating for superior conductivity and corrosion resistance.

It has an extensive temperature rating, functioning between -55°C to +105°C, making it suitable for demanding environments.

The IDC (Insulation Displacement Connector) method allows for faster and more reliable connections without the need for soldering, making installations more efficient and reducing potential for errors.
