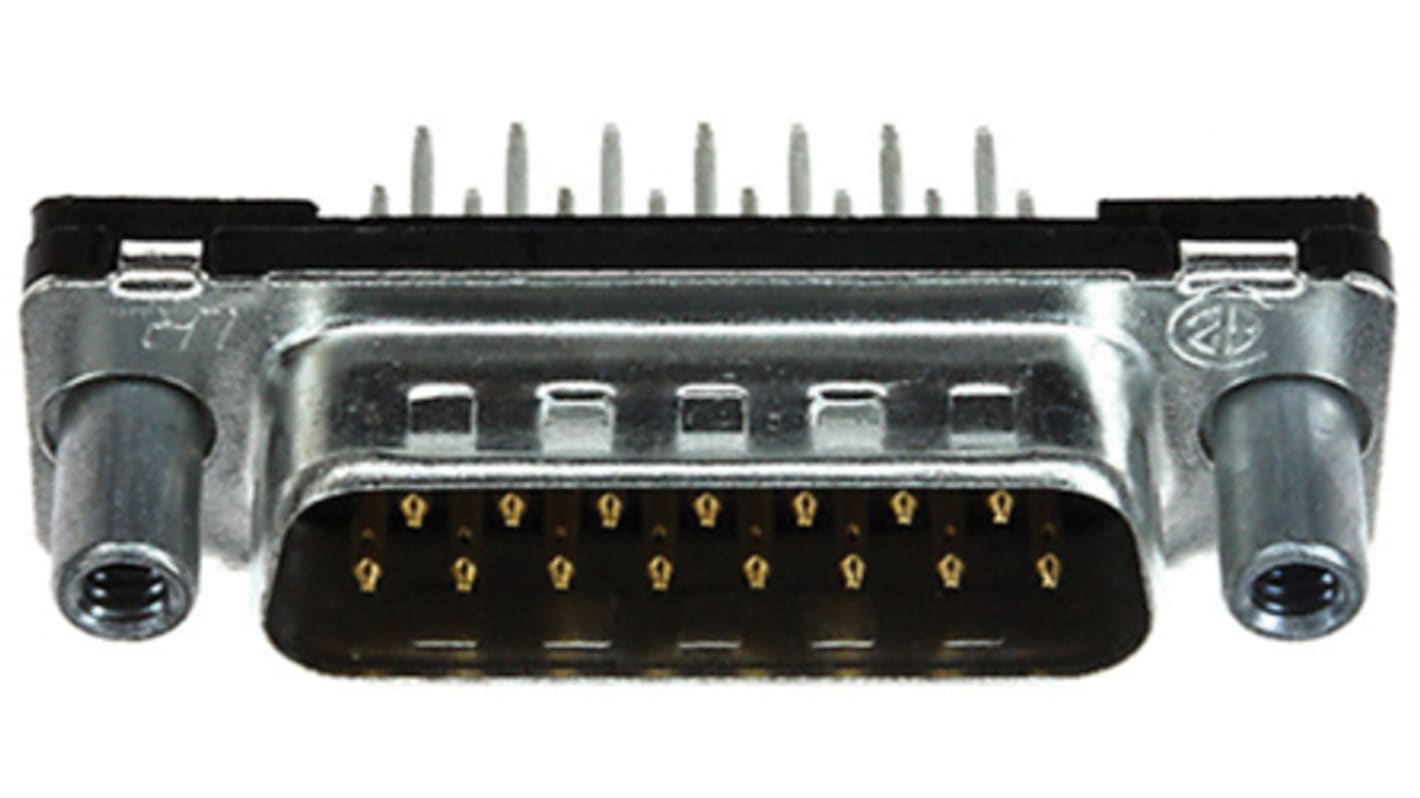

TE Connectivity Amplimite HD-20 15 Way Through Hole D-sub Connector Plug, 2.743mm Pitch, with 4-40 UNC, Female Screw
- RS Stock No.:
- 798-1114
- Mfr. Part No.:
- 1-5747872-6
- Manufacturer:
- TE Connectivity
Bulk discount available
Subtotal (1 unit)**
MYR38.99
20 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Real time qty checker
Units | Per Unit |
---|---|
1 - 3 | MYR38.99 |
4 - 6 | MYR37.98 |
7 + | MYR36.89 |
**price indicative
- RS Stock No.:
- 798-1114
- Mfr. Part No.:
- 1-5747872-6
- Manufacturer:
- TE Connectivity
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TE Connectivity | |
Number of Contacts | 15 | |
Gender | Male | |
Body Orientation | Straight | |
Mounting Type | Through Hole | |
Pitch | 2.743mm | |
Mounting Hardware | 4-40 UNC, Female Screw Lock | |
Termination Method | Solder | |
Housing Material | Thermoplastic | |
Voltage Rating | 250.0 V | |
Length | 1.541in | |
Width | 0.471in | |
Depth | 0.494in | |
Contact Material | Brass | |
Contact Plating | Gold | |
Series | Amplimite HD-20 | |
Dimensions | 1.541 x 0.471 x 0.494in | |
Maximum Operating Temperature | +105°C | |
Minimum Operating Temperature | -55.0°C | |
Contact Size | 20 | |
