Wurth Elektronik 618 25 Way Cable Mount D-sub Connector Socket, 2.77mm Pitch

RS Stock No.:: 771-8269
Mfr. Part No.:: 618025227221
Manufacturer:: Wurth Elektronik

Wurth Elektronik 618 25 Way Cable Mount D-sub Connector Socket, 2.77mm Pitch

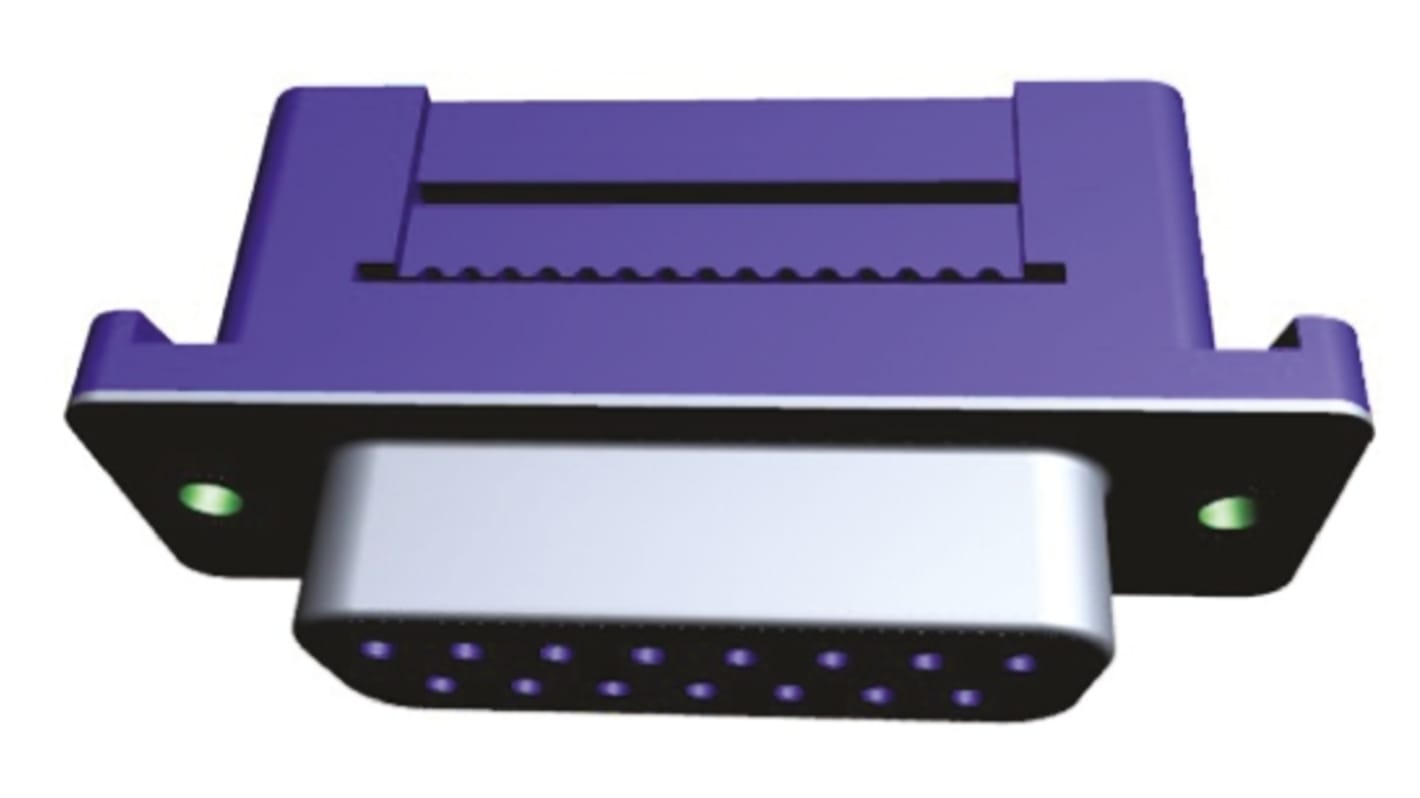

This image is representative of the product range

Price Each

MYR31.81

Available for back order.*

* Delivery dates may change based on your chosen quantity and delivery address.

Units	Per Unit
1 - 12	MYR31.81
13 - 24	MYR29.55
25 +	MYR27.31

RS Stock No.:: 771-8269
Mfr. Part No.:: 618025227221
Manufacturer:: Wurth Elektronik

Female IDC D-Sub Connector with UNC 4-40- Nut - WR-DSUB Series- customer drawing

Attribute	Value
Number of Contacts	25
Gender	Female
Body Orientation	Straight
Mounting Type	Cable Mount
Pitch	2.77 mm, 2.84mm
Termination Method	IDC
Current Rating	3A
Housing Material	Steel
Voltage Rating	250 V ac
Length	53.1mm
Width	12.5mm
Depth	17.25mm
Dimensions	53.1 x 12.5 x 17.25mm
Series	618
Contact Material	Copper Alloy
Contact Plating	Gold
Minimum Operating Temperature	-40.0°C
Maximum Operating Temperature	+85°C

Wurth Elektronik 618 25 Way Cable Mount D-sub Connector Socket, 2.77mm Pitch

WR-DSUB - IDC D-Sub Connectors with 4-40 UNC Screwlocks
