- RS Stock No.:
- 719-5802
- Mfr. Part No.:
- DBC25SS-NW
- Manufacturer:
- MH Connectors
90 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
2075 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each (In a Pack of 5)
Was MYR5.908
You pay
MYR4.874
Units | Per Unit | Per Pack* |
5 - 120 | MYR4.874 | MYR24.37 |
125 - 370 | MYR4.776 | MYR23.88 |
375 - 995 | MYR4.63 | MYR23.15 |
1000 - 4995 | MYR4.52 | MYR22.60 |
5000 + | MYR3.722 | MYR18.61 |
*price indicative |
- RS Stock No.:
- 719-5802
- Mfr. Part No.:
- DBC25SS-NW
- Manufacturer:
- MH Connectors
Technical data sheets
Legislation and Compliance
Product Details

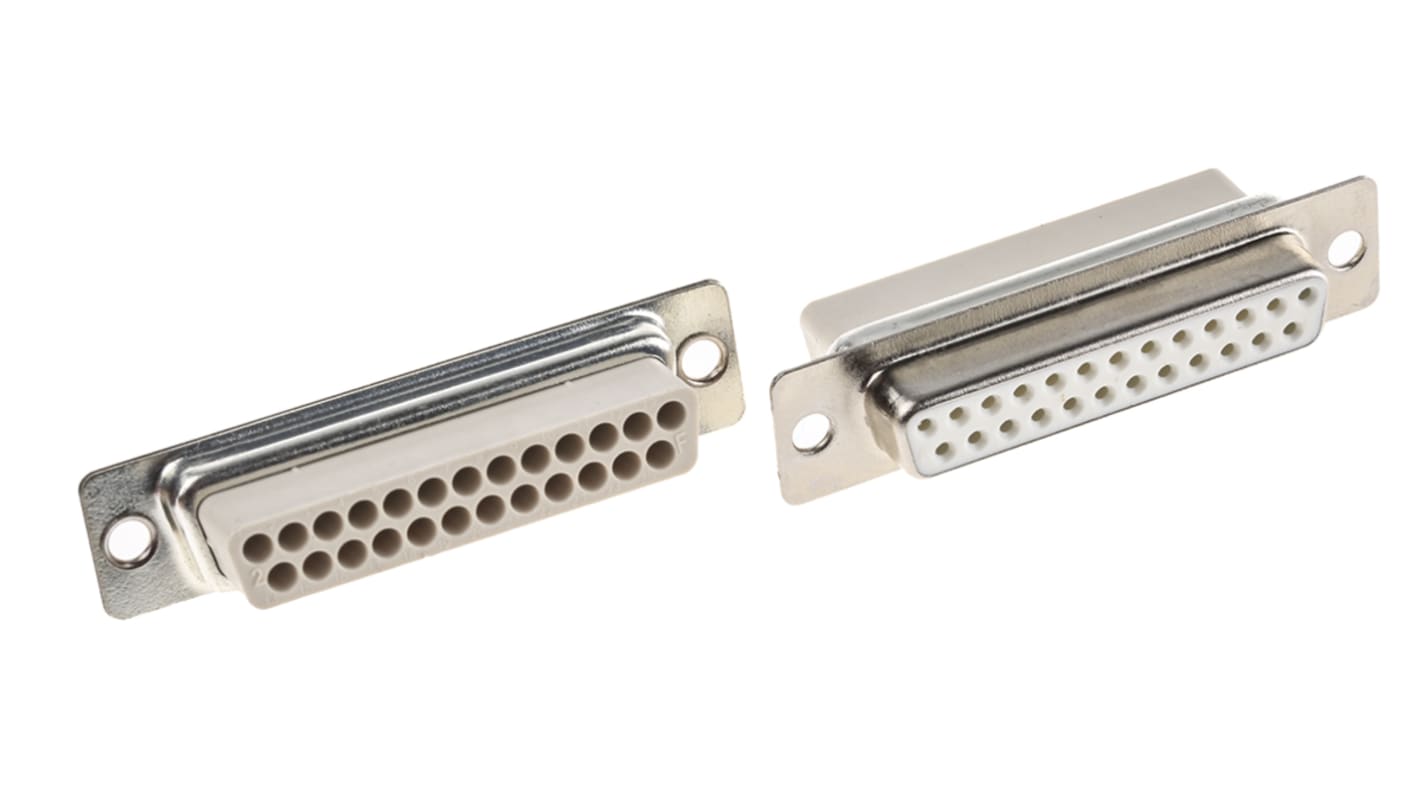

D-Sub Connector Plugs and Socket Shells
Suitable for crimp or solder termination contacts, see stock no's 719-5824 and 719-5833 typically
These connector shells offer the possibility of assembly and re-assembly with either crimp or solder contacts
High quality, crimp and poke or solder and poke connectors in standard case sizes
Tinned/dimpled shells for grounding continuity
These connector shells offer the possibility of assembly and re-assembly with either crimp or solder contacts
High quality, crimp and poke or solder and poke connectors in standard case sizes
Tinned/dimpled shells for grounding continuity
Note
For suitable hole cutters, refer to D connector cutters (e.g. stock no. 477-8690)
Specifications
Attribute | Value |
---|---|
Number of Contacts | 25 |
Gender | Female |
Body Orientation | Straight |
Mounting Type | Cable Mount |
Pitch | 2.77mm |
Termination Method | Crimp |
Current Rating | 5.0A |
Housing Material | Steel |
Voltage Rating | 250 V ac |
Length | 53.04mm |
Width | 6.23mm |
Depth | 12.55mm |
Dimensions | 53.04 x 6.23 x 12.55mm |
Contact Material | Copper Alloy |
Contact Plating | Gold over Nickel |
Series | MHD |
Maximum Operating Temperature | +105°C |
Minimum Operating Temperature | -55.0°C |
