TE Connectivity Amplimite HD-20 15 Way Through Hole D-sub Connector Plug, 2.74mm Pitch, with 4-40 UNC, Female Screw Lock

RS Stock No.:: 164-2346
Mfr. Part No.:: 5787177-1
Manufacturer:: TE Connectivity

TE Connectivity Amplimite HD-20 15 Way Through Hole D-sub Connector Plug, 2.74mm Pitch, with 4-40 UNC, Female Screw Lock

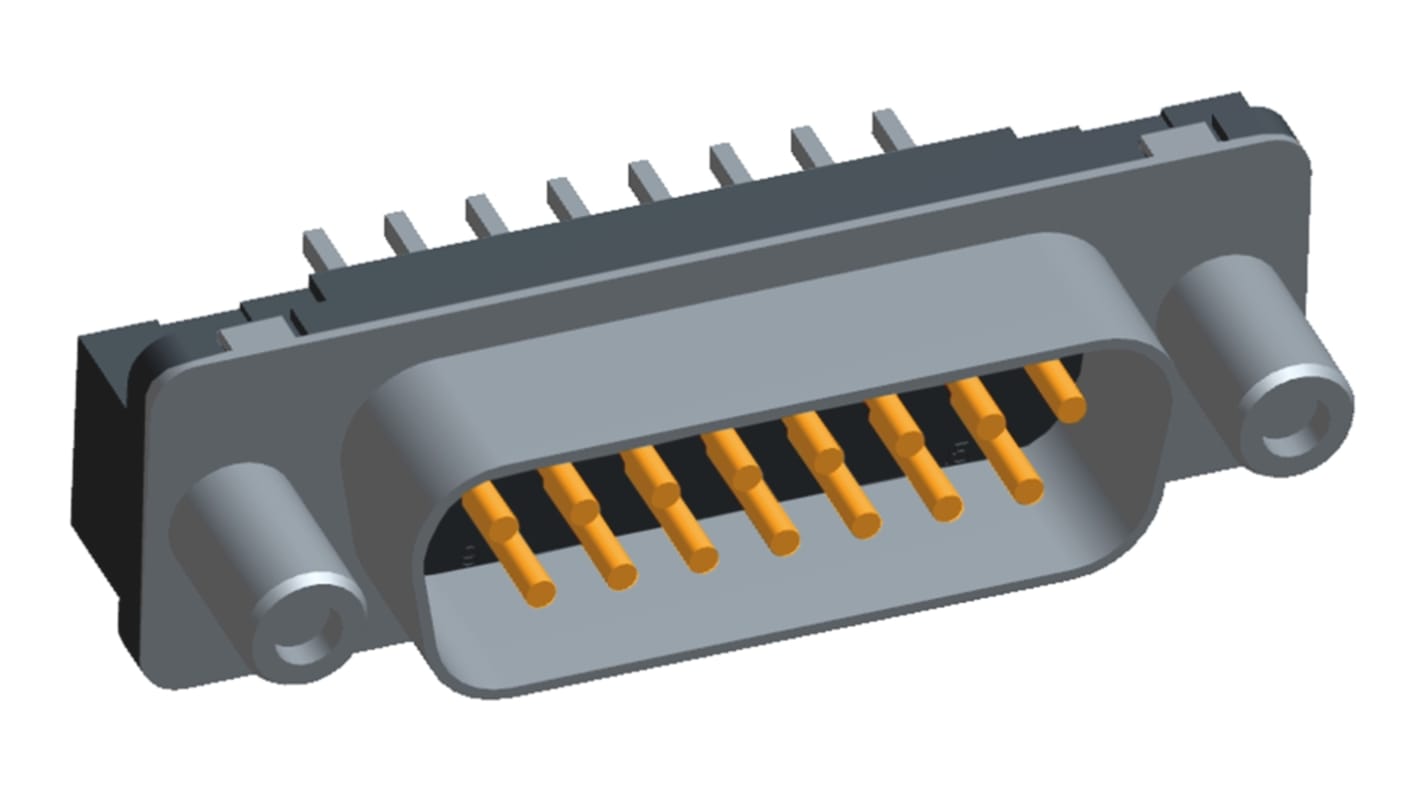

This image is representative of the product range

Bulk discount available

Price Each (In a Tray of 104)

MYR103.968

5 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*

* Delivery dates may change based on your chosen quantity and delivery address.

Units	Per Unit	Per Tray**
104 - 104	MYR103.968	MYR10,812.672
208 - 312	MYR101.681	MYR10,574.824
416 +	MYR99.809	MYR10,380.136

**price indicative

RS Stock No.:: 164-2346
Mfr. Part No.:: 5787177-1
Manufacturer:: TE Connectivity

AMPLIMITE HD-20 Series, Front Metal Shell, PCB Mount d-Sub Connector with ACTION PIN Contacts, 15 Way

Attribute	Value
Number of Contacts	15
Gender	Male
Body Orientation	Straight
Mounting Type	Through Hole
Pitch	2.74mm
Termination Method	Solder
Mounting Hardware	4-40 UNC, Female Screw Lock
Housing Material	Nylon
Length	39.14mm
Width	11.83mm
Depth	12.55mm
Series	Amplimite HD-20
Contact Material	Copper Alloy
Contact Plating	Gold
Dimensions	39.14 x 11.83 x 12.55mm
Series Number	5787177
Maximum Operating Temperature	+105°C
Minimum Operating Temperature	-55.0°C

TE Connectivity Amplimite HD-20 15 Way Through Hole D-sub Connector Plug, 2.74mm Pitch, with 4-40 UNC, Female Screw Lock

AMPLIMITE HD-20 Series, Front Metal Shell, PCB Mount d-Sub Connectors with ACTION PIN Contacts
