Schneider Electric PowerLogic Series Current Transformer 300 A 2.5 VA 720V
- RS Stock No.:
- 288-1420
- Mfr. Part No.:
- METSECT5HJ030
- Manufacturer:
- Schneider Electric
Subtotal (1 unit)*
MYR1,702.83
FREE delivery for orders over RM 500.00
Temporarily out of stock
- Shipping from 17 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | MYR1,702.83 |
*price indicative
- RS Stock No.:
- 288-1420
- Mfr. Part No.:
- METSECT5HJ030
- Manufacturer:
- Schneider Electric
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Current Transformer | |
| Series | PowerLogic | |
| Power Rating | 2.5VA | |
| Secondary Current | 5A | |
| Terminal Type | Cable | |
| Primary Current | 300A | |
| Minimum Operating Temperature | -5°C | |
| Maximum Operating Temperature | 50°C | |
| Width | 67mm | |
| Standards/Approvals | DIN EN 61869, RoHS, VDE 0414, REACH, DIN 4600, EU RoHS, DIN EN 618691 | |
| Maximum Operating Frequency | 60Hz | |
| Supply Voltage | 720V | |
| Minimum Operating Frequency | 50Hz | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Current Transformer | ||
Series PowerLogic | ||
Power Rating 2.5VA | ||
Secondary Current 5A | ||
Terminal Type Cable | ||
Primary Current 300A | ||
Minimum Operating Temperature -5°C | ||
Maximum Operating Temperature 50°C | ||
Width 67mm | ||
Standards/Approvals DIN EN 61869, RoHS, VDE 0414, REACH, DIN 4600, EU RoHS, DIN EN 618691 | ||
Maximum Operating Frequency 60Hz | ||
Supply Voltage 720V | ||
Minimum Operating Frequency 50Hz | ||
- COO (Country of Origin):
- HU

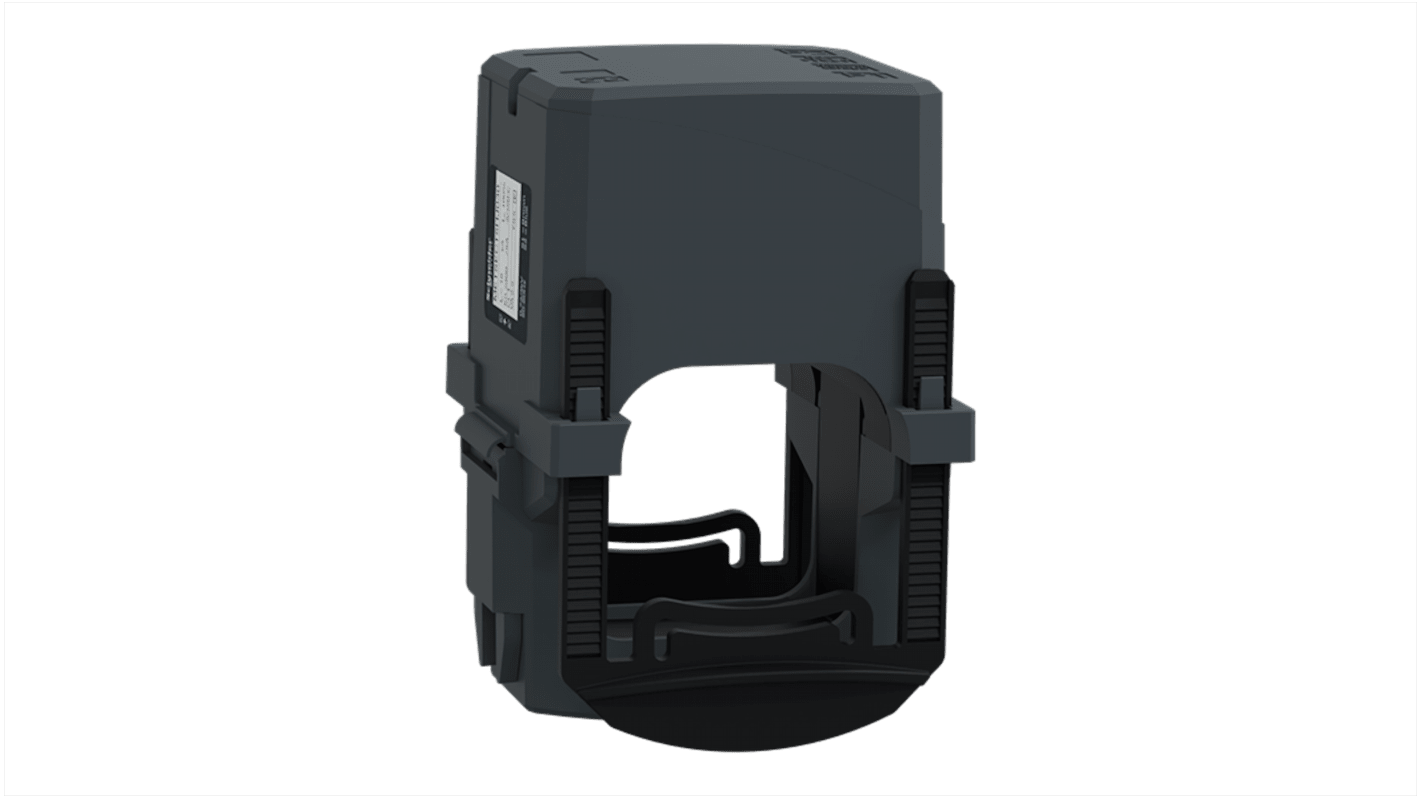

The Schneider Electric Split Core Current Transformer is a high quality current transformer with Class 1 accuracy and a conventional free air thermal current of 360 A. It is a reliable and efficient solution for monitoring and measuring current in various applications.
Secondary current rating of 5 A for precise measurements
Accuracy class of Class 1 at 2.5 VA for reliable performance
Clip on mounting mode for easy installation
Conventional free air thermal current of 360 A for high safety standards
Compliant with DIN EN and VDE standards for quality assurance
