Schneider Electric PowerLogic Series Current Transformer 800 A 0.333 V
- RS Stock No.:
- 276-9262
- Mfr. Part No.:
- LVCT00804S
- Manufacturer:
- Schneider Electric
Subtotal (1 unit)*
MYR1,576.52
FREE delivery for orders over RM 500.00
Temporarily out of stock
- Shipping from 30 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | MYR1,576.52 |
*price indicative
- RS Stock No.:
- 276-9262
- Mfr. Part No.:
- LVCT00804S
- Manufacturer:
- Schneider Electric
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Current Transformer | |
| Series | PowerLogic | |
| Terminal Type | Cable 1.8 m | |
| Primary Current | 800A | |
| Minimum Operating Temperature | -15°C | |
| Maximum Operating Temperature | 60°C | |
| Depth | 30mm | |
| Length | 139mm | |
| Weight | 0.87kg | |
| Standards/Approvals | REACH-Verordnung, RoHS-Richtlinie für China, EU-RoHS-Richtlinie | |
| Maximum Operating Frequency | 60Hz | |
| Supply Voltage | 0.333 V | |
| Minimum Operating Frequency | 50Hz | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Current Transformer | ||
Series PowerLogic | ||
Terminal Type Cable 1.8 m | ||
Primary Current 800A | ||
Minimum Operating Temperature -15°C | ||
Maximum Operating Temperature 60°C | ||
Depth 30mm | ||
Length 139mm | ||
Weight 0.87kg | ||
Standards/Approvals REACH-Verordnung, RoHS-Richtlinie für China, EU-RoHS-Richtlinie | ||
Maximum Operating Frequency 60Hz | ||
Supply Voltage 0.333 V | ||
Minimum Operating Frequency 50Hz | ||
RoHS Status: Exempt
- COO (Country of Origin):
- US

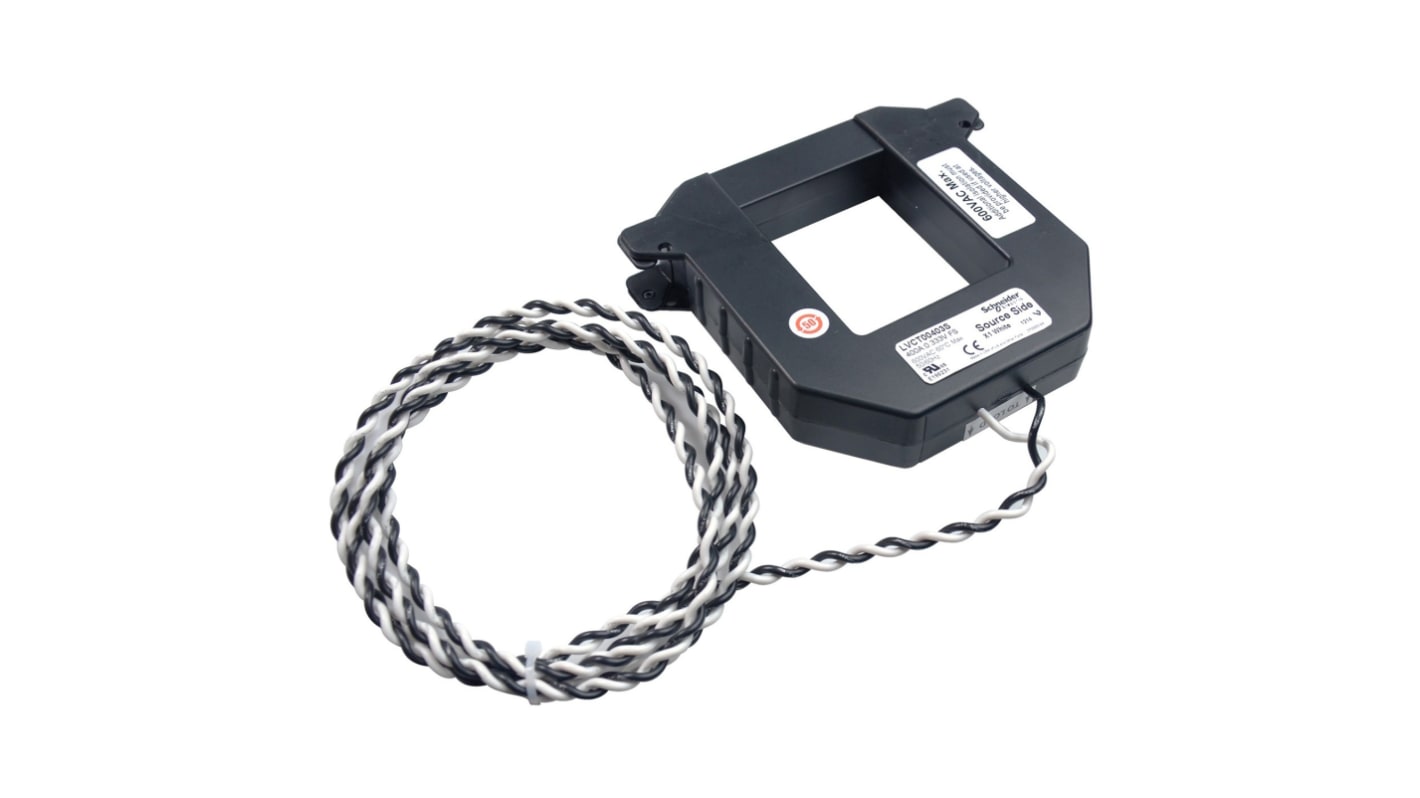

The Schneider Electric low-voltage split-core current transformer is part of PowerLogic BCPM (Branch Circuit Power Meter). It is Ideal for retrofit applications with Schneider Electric energy meters which accept low voltage current transducer input.
Sustainable
Mercury free
