Schneider Electric PowerLogic Series Current Transformer 25 A 250:5 1 VA 720V
- RS Stock No.:
- 276-1718
- Mfr. Part No.:
- METSECT5HA025
- Manufacturer:
- Schneider Electric
Subtotal (1 unit)*
MYR2,095.66
FREE delivery for orders over RM 500.00
Stocked by manufacturer
- Ready to ship from 20 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | MYR2,095.66 |
*price indicative
- RS Stock No.:
- 276-1718
- Mfr. Part No.:
- METSECT5HA025
- Manufacturer:
- Schneider Electric
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Current Transformer | |
| Series | PowerLogic | |
| Power Rating | 1VA | |
| Secondary Current | 5A | |
| Terminal Type | Cable to Cable | |
| Primary Current | 25A | |
| Minimum Operating Temperature | -5°C | |
| Maximum Operating Temperature | 50°C | |
| Width | 49mm | |
| Standards/Approvals | VDE 0414, DIN EN 61869-1, DIN EN 60044-1, DIN EN 61869-2 | |
| Depth | 59mm | |
| Length | 80.1mm | |
| Turns Ratio | 250:5 | |
| Supply Voltage | 720V | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Current Transformer | ||
Series PowerLogic | ||
Power Rating 1VA | ||
Secondary Current 5A | ||
Terminal Type Cable to Cable | ||
Primary Current 25A | ||
Minimum Operating Temperature -5°C | ||
Maximum Operating Temperature 50°C | ||
Width 49mm | ||
Standards/Approvals VDE 0414, DIN EN 61869-1, DIN EN 60044-1, DIN EN 61869-2 | ||
Depth 59mm | ||
Length 80.1mm | ||
Turns Ratio 250:5 | ||
Supply Voltage 720V | ||
RoHS Status: Exempt
- COO (Country of Origin):
- HU

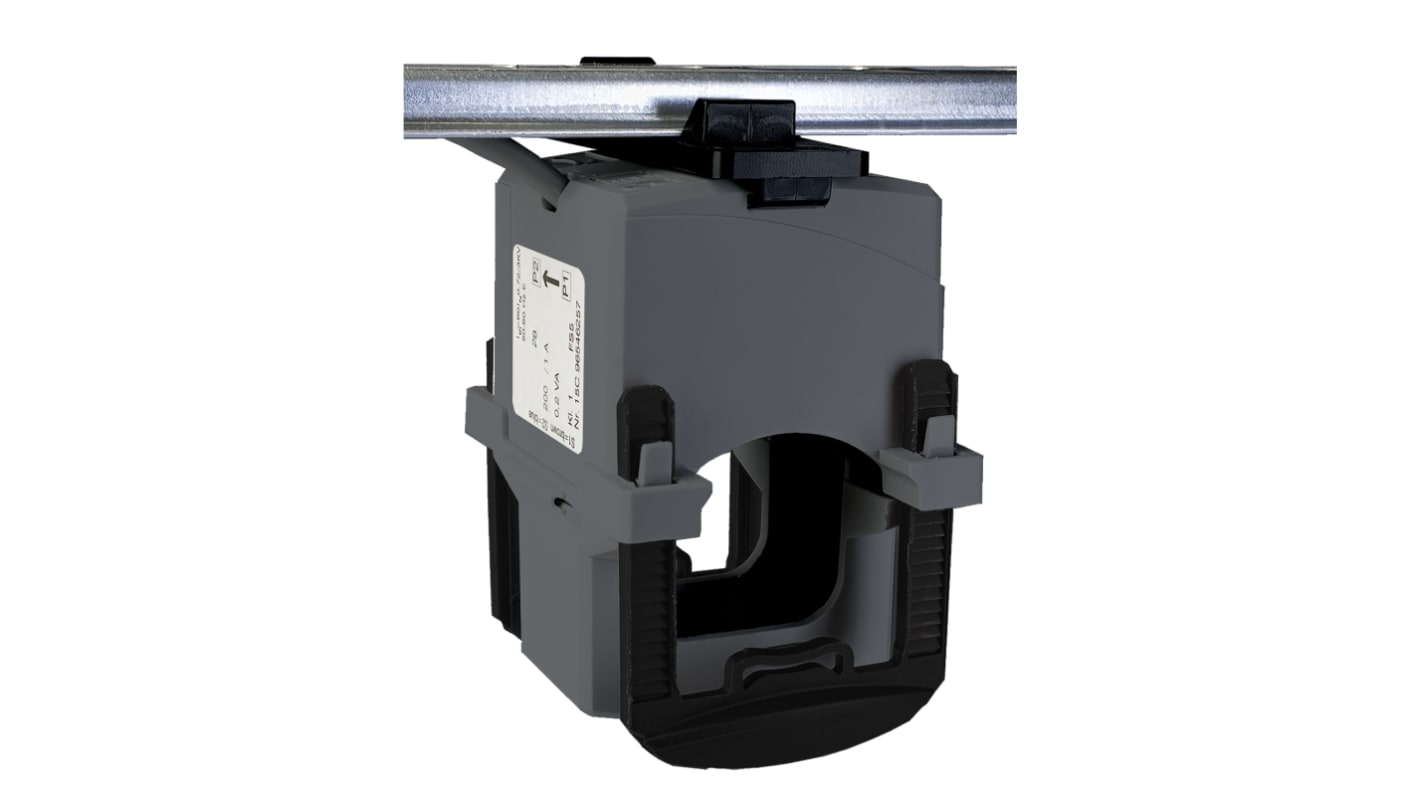

The Schneider Electric Split Core Current Transformer is ideal for cable installations. The split core design facilitates easy and non disruptive installation around existing cables. It has a conventional free air thermal current of 300 A, ensuring reliable performance under normal operating conditions. The transformer has a maximum safety factor of 5 and can withstand a permissible current of 15,000 A for a short duration.
Mercury free
RoHS compliance
Toxic heavy metal free
VDE 0414 standard met
