DiodesZetex, Current Monitor 5-Pin, SOT-23
- RS Stock No.:
- 922-8496
- Mfr. Part No.:
- ZXCT1051E5TA
- Manufacturer:
- DiodesZetex

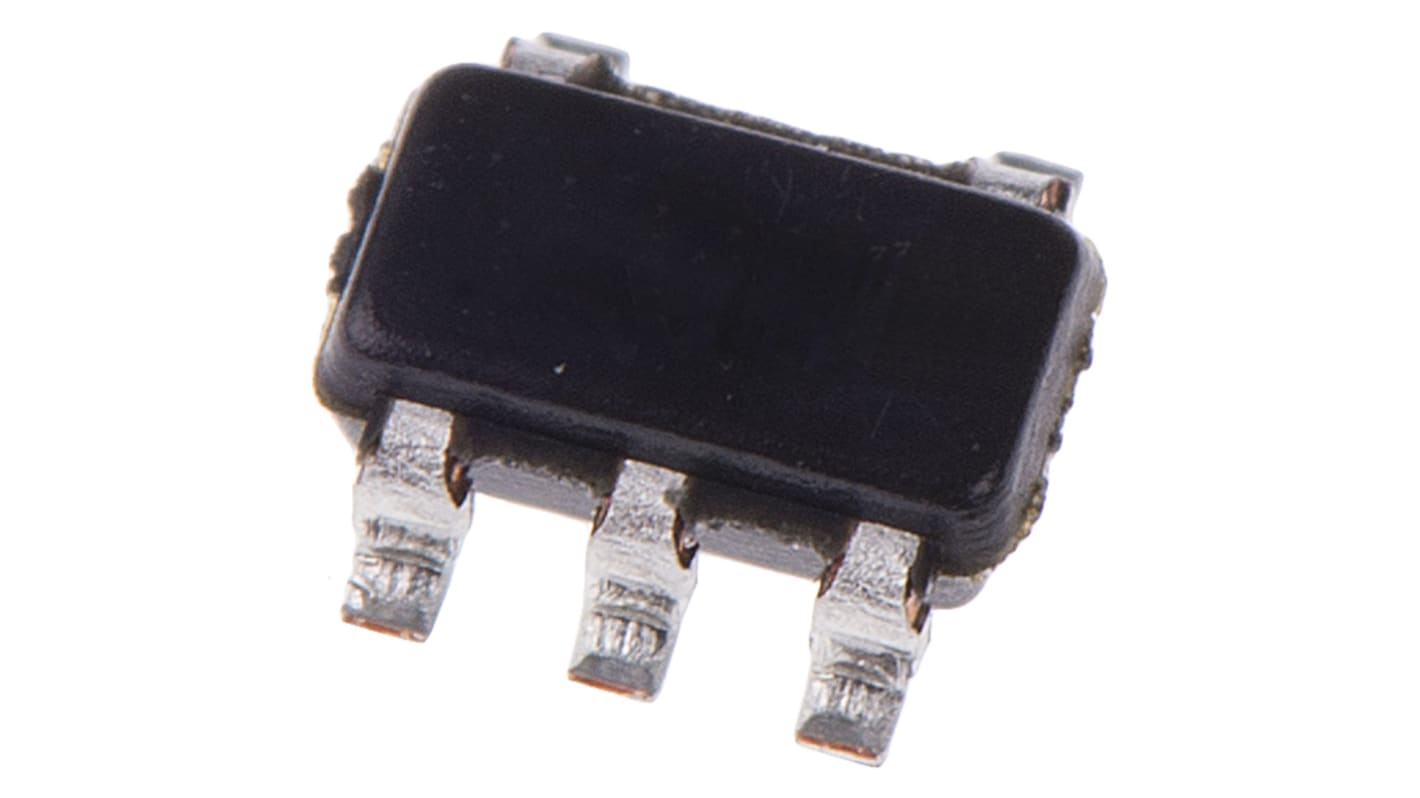

This image is representative of the product range
Bulk discount available
Subtotal (1 reel of 3000 units)*
MYR11,883.00
FREE delivery for orders over RM 500.00
Temporarily out of stock
- Shipping from 01 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Reel* |
|---|---|---|
| 3000 - 6000 | MYR3.961 | MYR11,883.00 |
| 9000 + | MYR3.842 | MYR11,526.00 |
*price indicative
- RS Stock No.:
- 922-8496
- Mfr. Part No.:
- ZXCT1051E5TA
- Manufacturer:
- DiodesZetex
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | DiodesZetex | |
| Product Type | Current Monitor | |
| Quiescent Current | 50μA | |
| Package Type | SOT-23 | |
| Bandwidth | 1MHz | |
| Pin Count | 5 | |
| Mount Type | Surface | |
| Minimum Supply Voltage | 2.7V | |
| Maximum Supply Voltage | 20V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Height | 1.3mm | |
| Length | 3.1mm | |
| Width | 1.8 mm | |
| Standards/Approvals | RoHS | |
| Series | ZXCT1051 | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand DiodesZetex | ||
Product Type Current Monitor | ||
Quiescent Current 50μA | ||
Package Type SOT-23 | ||
Bandwidth 1MHz | ||
Pin Count 5 | ||
Mount Type Surface | ||
Minimum Supply Voltage 2.7V | ||
Maximum Supply Voltage 20V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Height 1.3mm | ||
Length 3.1mm | ||
Width 1.8 mm | ||
Standards/Approvals RoHS | ||
Series ZXCT1051 | ||
Automotive Standard No | ||
- COO (Country of Origin):
- CN
Current Sensing Amplifiers, DiodesZetex
Current Sensing Amplifiers have a voltage output that is proportional to the volt drop across a very low value resistor, usually in a high-current power rail. Hence they measure the current flowing in that power rail.
