NDK 32.77 kHz Crystal ±20 ppm 2-Pin 800 μm 3.2 mm 1.5mm
- RS Stock No.:
- 753-7568
- Mfr. Part No.:
- NX3215SA-32.768K-STD-MUA-8
- Manufacturer:
- NDK

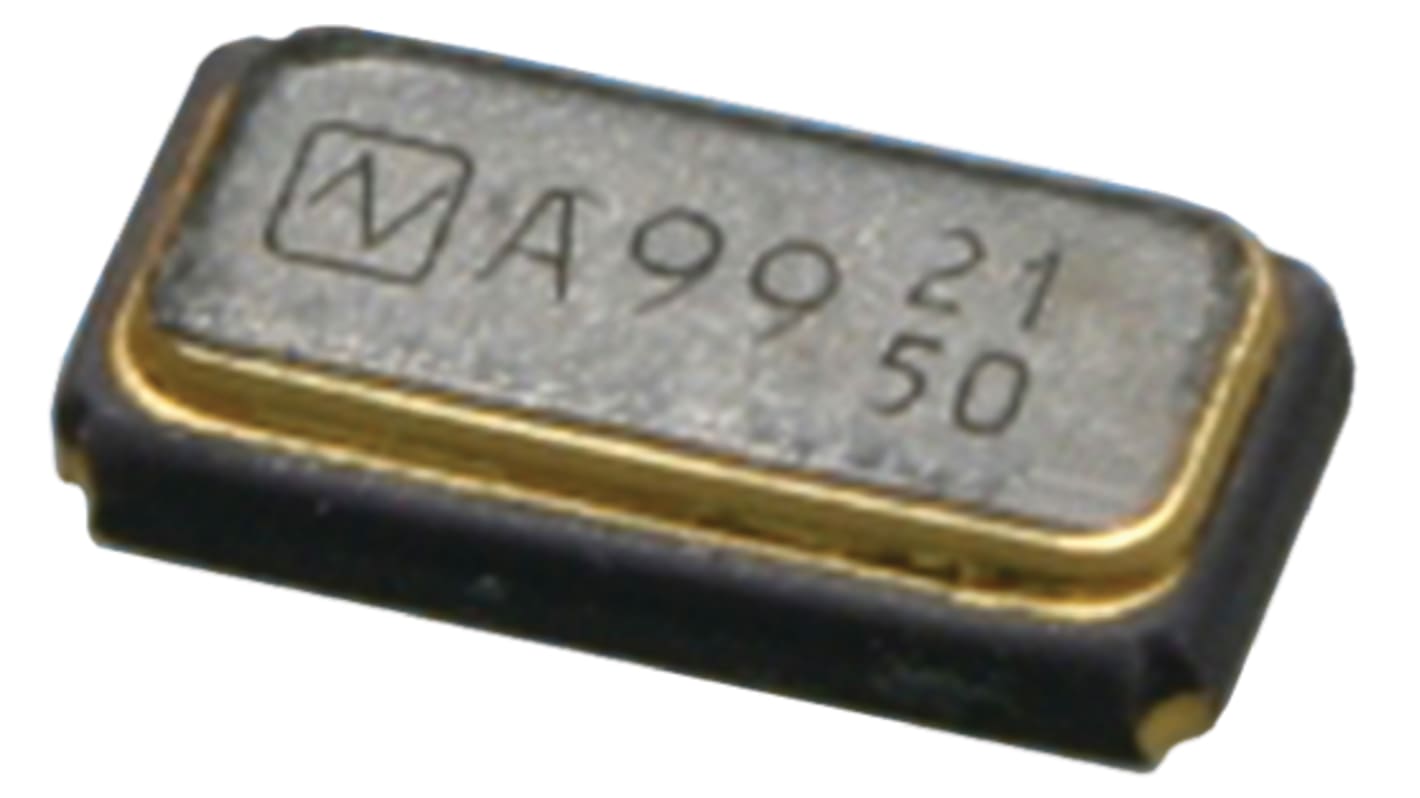

This image is representative of the product range
Bulk discount available
View bulk pricing optionsSubtotal (1 reel of 1000 units)*
MYR1,900.00
Stock information currently inaccessible - Please check back later
Units | Per Unit | Per Reel* |
|---|---|---|
| 1000 - 2000 | MYR1.90 | MYR1,900.00 |
| 3000 + | MYR1.86 | MYR1,860.00 |
*price indicative
- RS Stock No.:
- 753-7568
- Mfr. Part No.:
- NX3215SA-32.768K-STD-MUA-8
- Manufacturer:
- NDK
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NDK | |
| Standard Frequency | 32.77kHz | |
| Product Type | Crystal | |
| Mount Type | Surface | |
| Load Capacitance | 12.5pF | |
| Packaging | Tape & Reel | |
| Pin Count | 2 | |
| Length | 3.2mm | |
| Width | 1.5mm | |
| Height | 800μm | |
| Frequency Tolerance | ±20 ppm | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Series Resistance | 70kΩ | |
| Standards/Approvals | RoHS | |
| Series | NX | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand NDK | ||
Standard Frequency 32.77kHz | ||
Product Type Crystal | ||
Mount Type Surface | ||
Load Capacitance 12.5pF | ||
Packaging Tape & Reel | ||
Pin Count 2 | ||
Length 3.2mm | ||
Width 1.5mm | ||
Height 800μm | ||
Frequency Tolerance ±20 ppm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Series Resistance 70kΩ | ||
Standards/Approvals RoHS | ||
Series NX | ||
Automotive Standard No | ||
- COO (Country of Origin):
- JP
NX3215SA (reels)
Watch Crystals 32.768kHz
