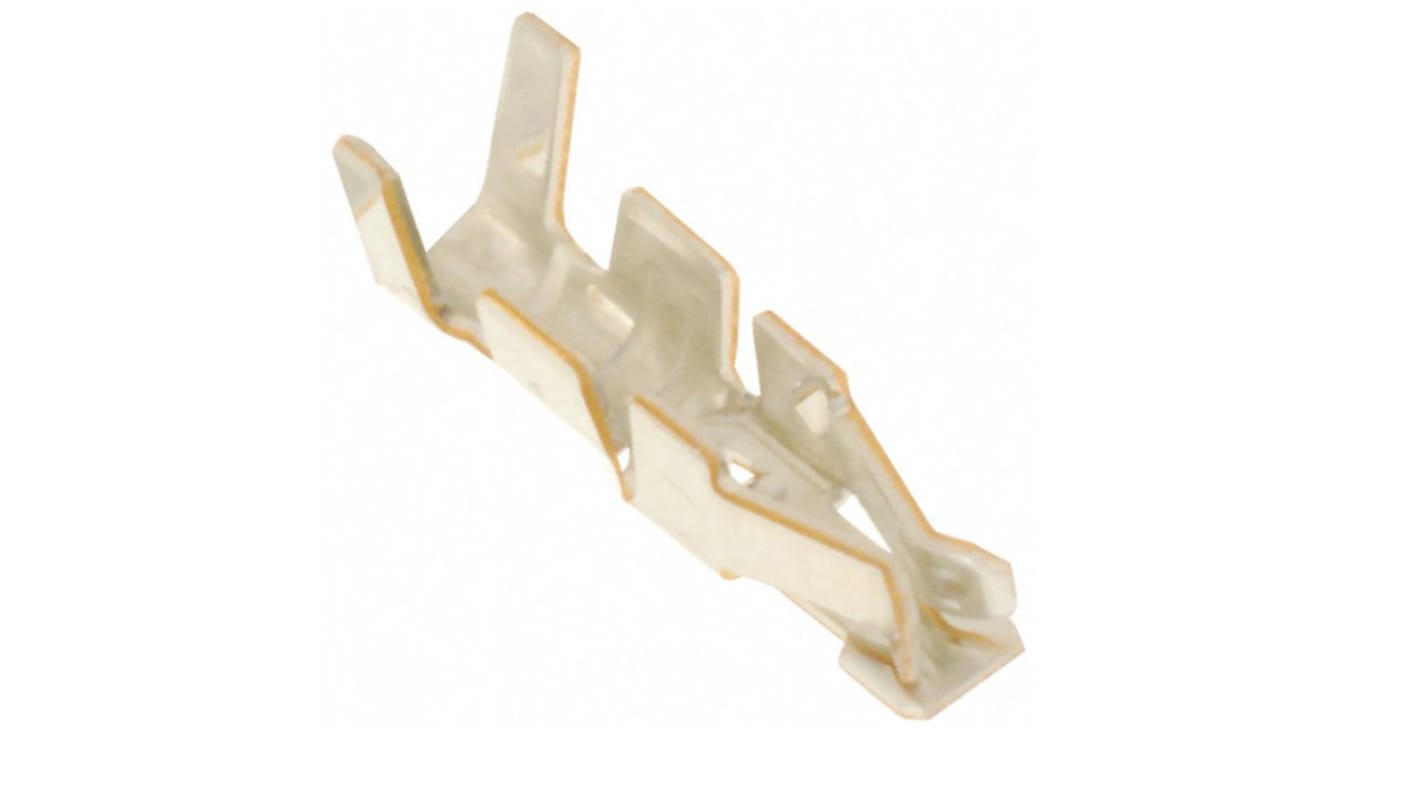

JST PUD Series Female Crimp Terminal, 26AWG Min, 22AWG Max
- RS Stock No.:
- 906-0275
- Mfr. Part No.:
- SPUD-001T-P0.5
- Manufacturer:
- JST
Bulk discount available
Subtotal (1 pack of 10 units)**
MYR2.35
7780 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Real time qty checker
Units | Per Unit | Per Pack** |
|---|---|---|
| 10 - 1990 | MYR0.235 | MYR2.35 |
| 2000 - 3990 | MYR0.23 | MYR2.30 |
| 4000 + | MYR0.224 | MYR2.24 |
**price indicative
- RS Stock No.:
- 906-0275
- Mfr. Part No.:
- SPUD-001T-P0.5
- Manufacturer:
- JST
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | JST | |
| Gender | Female | |
| For Use With | PUD Connector Housing | |
| Series | PUD | |
| Minimum Wire Size mm² | 0.1mm² | |
| Termination Method | Crimp | |
| Maximum Wire Size mm² | 0.3mm² | |
| Minimum Wire Size AWG | 26AWG | |
| Contact Plating | Tin | |
| Contact Material | Copper Alloy | |
| Maximum Wire Size AWG | 22AWG | |
| Maximum Contact Resistance | 20mΩ | |
| Minimum Operating Temperature | -25°C | |
| Maximum Current | 3A | |
| Maximum Operating Temperature | +85 °C, +85 °C | |
Select all | ||
|---|---|---|
Brand JST | ||
Gender Female | ||
For Use With PUD Connector Housing | ||
Series PUD | ||
Minimum Wire Size mm² 0.1mm² | ||
Termination Method Crimp | ||
Maximum Wire Size mm² 0.3mm² | ||
Minimum Wire Size AWG 26AWG | ||
Contact Plating Tin | ||
Contact Material Copper Alloy | ||
Maximum Wire Size AWG 22AWG | ||
Maximum Contact Resistance 20mΩ | ||
Minimum Operating Temperature -25°C | ||
Maximum Current 3A | ||
Maximum Operating Temperature +85 °C, +85 °C | ||
