Molex MX150L Series Female Crimp Terminal, 16AWG Min, 14AWG Max

RS Stock No.:: 797-8868
Mfr. Part No.:: 19420-0001
Manufacturer:: Molex

Molex MX150L Series Female Crimp Terminal, 16AWG Min, 14AWG Max

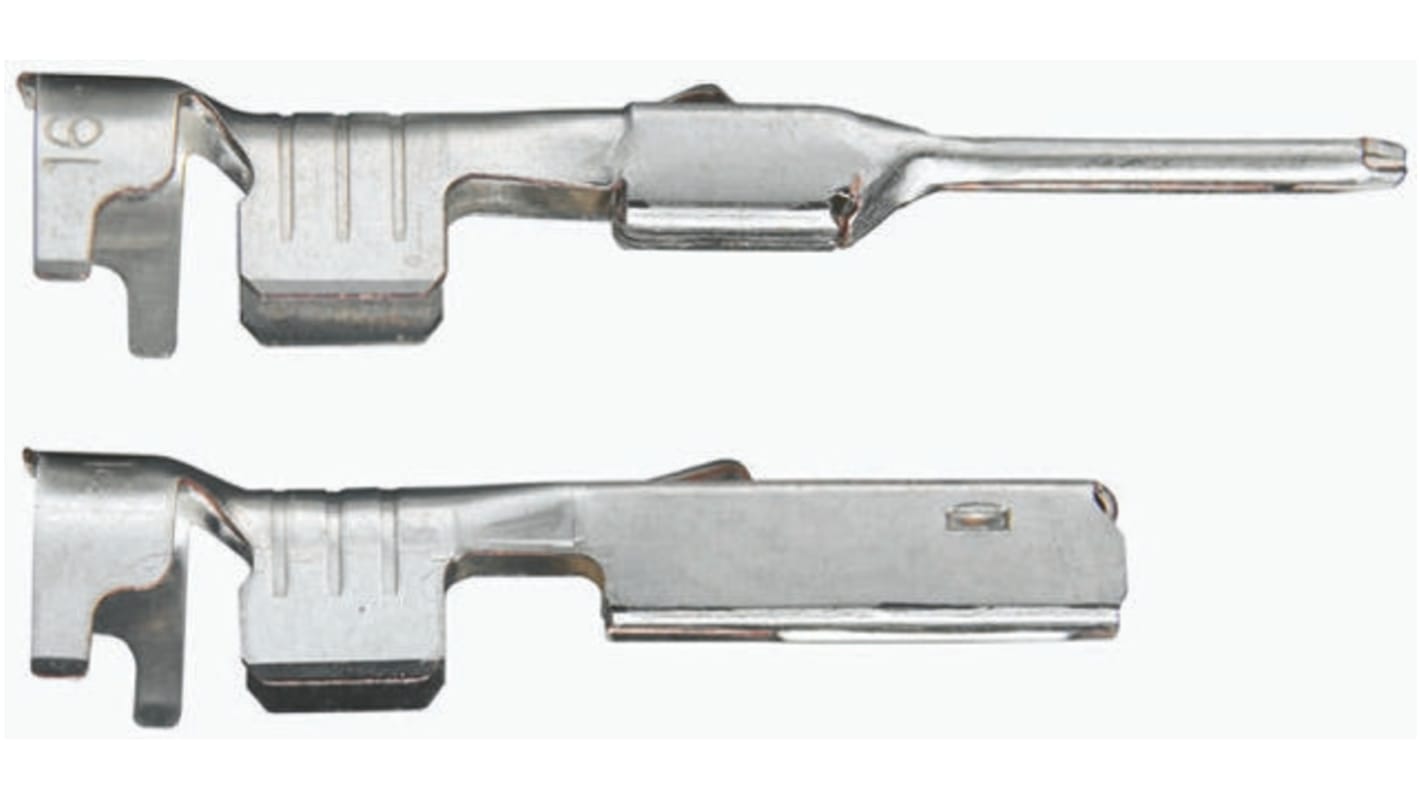

This image is representative of the product range

Bulk discount available

Subtotal (1 pack of 100 units)**

MYR59.70

600 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over MYR500.00

Real time qty checker

Units	Per Unit	Per Pack**
100 - 900	MYR0.597	MYR59.70
1000 - 2900	MYR0.579	MYR57.90
3000 +	MYR0.562	MYR56.20

**price indicative

RS Stock No.:: 797-8868
Mfr. Part No.:: 19420-0001
Manufacturer:: Molex

Molex MX150L Series Crimp Terminal, Female, 1.3mm² Minimum Wire size - 19420-0001

This crimp terminal is a female connector designed specifically for the MX150L connector housing. It accommodates wire sizes ranging from 1.3 to 2 mm² (16 to 14 AWG) and operates effectively in temperatures from -55 to +125 °C. Constructed from high-performance alloy with a tin plating, it ensures robust electrical connections suitable for various applications.

Features & Benefits

• Crimp termination method ensures secure connections
• Tin plating enhances conductivity and corrosion resistance
• High-performance alloy contact material for durability
• Low-halogen, compliant with industry standards

Applications

• Used in automotive wiring and electrical assemblies
• Ideal for wire-to-board connections in control systems
• Suitable for both power and signal in machinery

What is the significance of the tin plating on this terminal?

Tin plating improves conductivity, prevents corrosion, and enhances the overall durability of connections, ensuring long-term reliability.

How can I ensure a proper crimp on wires with this terminal?

Using a compatible crimp tool designed for 16 to 14 AWG wires, you should position the wire properly and apply consistent pressure to form a secure crimp.

In what environments can this crimp terminal be effectively used?

This terminal is ideal for environments that require high temperature resistance and may face exposure to moisture, making it suitable for automotive and industrial applications.

What compliance standards does this terminal meet?

It is compliant with multiple standards such as EU RoHS, REACH SVHC, and low-halogen requirements, ensuring safety and environmental responsibility in its application.

Can this terminal be used for both wire-to-board and wire-to-wire connections?

Yes, it is versatile enough for both wire-to-board and wire-to-wire connection applications, making it suitable for a range of electronic installations.

For these production packs, non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.

Molex MX150L Sealed Connector System

Rugged, environmentally sealed connector system tested to IEC IP 67 that supports both low level signal and power applications up to 18 amps. Applications include: automotive, industrial control, video surveillance, outdoor lighting and machine tools.

Connector housings and seals pre-assembled
2 to 10 Circuit
IP67 rated
Integral Locking Latch
14-16 and 18-22 AWG options

Attribute	Value
Gender	Female
For Use With	MX150L Connector Housing
Series	MX150L
Minimum Wire Size mm²	1.3mm²
Maximum Wire Size mm²	2mm²
Termination Method	Crimp
Minimum Wire Size AWG	16AWG
Contact Plating	Tin
Maximum Wire Size AWG	14AWG
Contact Material	Alloy
Series Number	19420
Minimum Operating Temperature	-55°C
Maximum Operating Temperature	+125°C
