- RS Stock No.:
- 700-1044
- Mfr. Part No.:
- 46056-0004
- Manufacturer:
- Molex
Temporarily out of stock - back order for despatch 22/10/2024, delivery within 4 working days from despatch date
Added
Price Each (In a Pack of 100)
MYR1.095
Units | Per Unit | Per Pack* |
100 - 900 | MYR1.095 | MYR109.50 |
1000 - 2900 | MYR1.072 | MYR107.20 |
3000 - 7400 | MYR1.039 | MYR103.90 |
7500 - 14900 | MYR1.014 | MYR101.40 |
15000 + | MYR0.992 | MYR99.20 |
*price indicative |
- RS Stock No.:
- 700-1044
- Mfr. Part No.:
- 46056-0004
- Manufacturer:
- Molex
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- US
Product Details

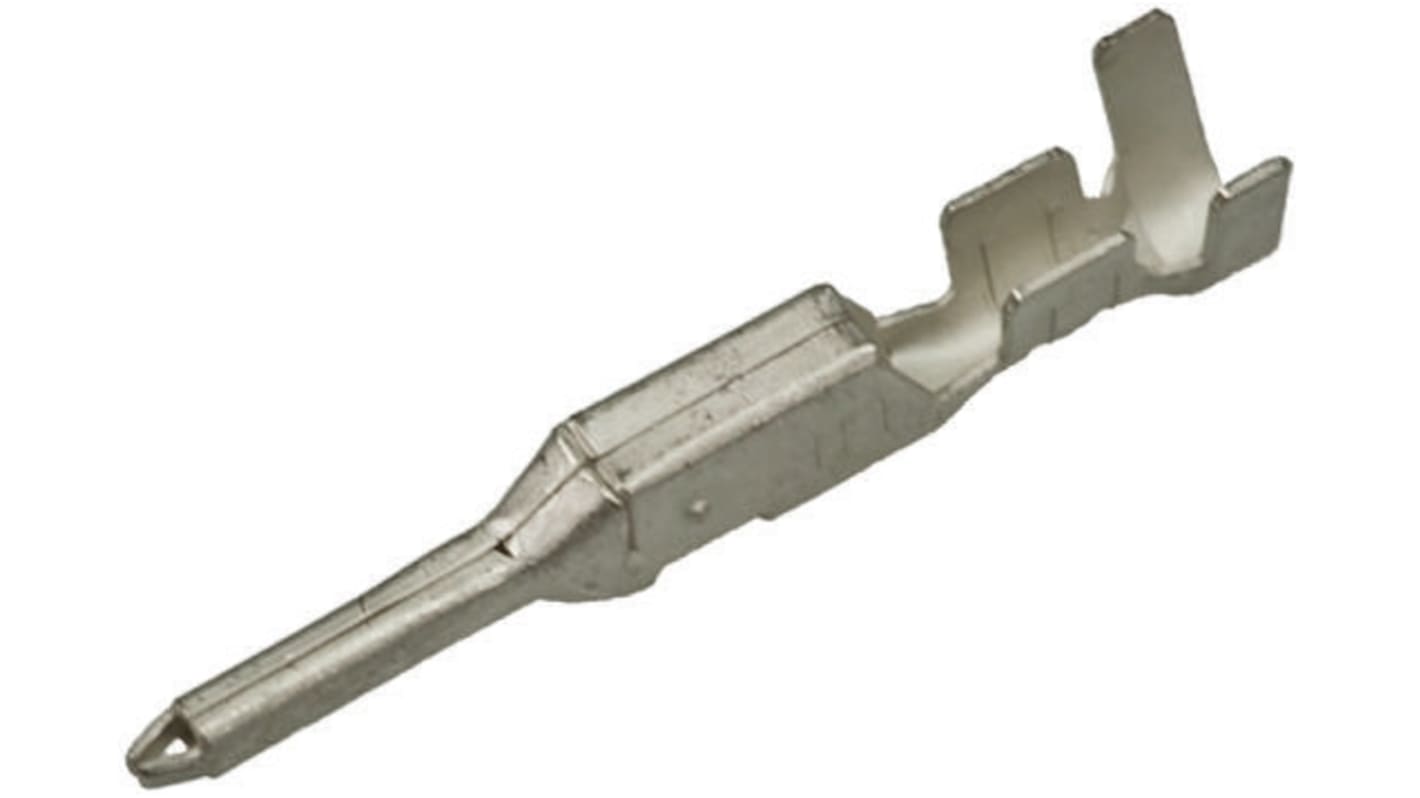

Crimp Terminals and Tooling
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Molex Mini-Fit H2O Series
The sealed Mini-Fit H2O™ IP67-rated system with pre-installed, integrated interface and wire seals,meets the need for weatherproof, compact connections in wire-to-wire applications up to 9.0A per circuit.
Small overall profile
Rated to a depth of one meter of water
Wingless terminals to avoid damage to seals
Housing material to UL94V-0 and UV stabilized
Rated to a depth of one meter of water
Wingless terminals to avoid damage to seals
Housing material to UL94V-0 and UV stabilized
Specifications
Attribute | Value |
---|---|
Gender | Male |
For Use With | Mini-Fit H2O Connector Housing |
Series | Mini-Fit H2O |
Minimum Wire Size mm² | 0.5mm² |
Maximum Wire Size mm² | 0.8mm² |
Termination Method | Crimp |
Contact Plating | Tin |
Minimum Wire Size AWG | 20AWG |
Maximum Wire Size AWG | 18AWG |
Contact Material | Copper Alloy |
Series Number | 46056 |
