TE Connectivity Universal MATE-N-LOK Series Female Crimp Terminal, 12 AWG Min Crimp, 10 AWG Max
- RS Stock No.:
- 680-5230
- Distrelec Article No.:
- 304-43-372
- Mfr. Part No.:
- 350923-3
- Manufacturer:
- TE Connectivity

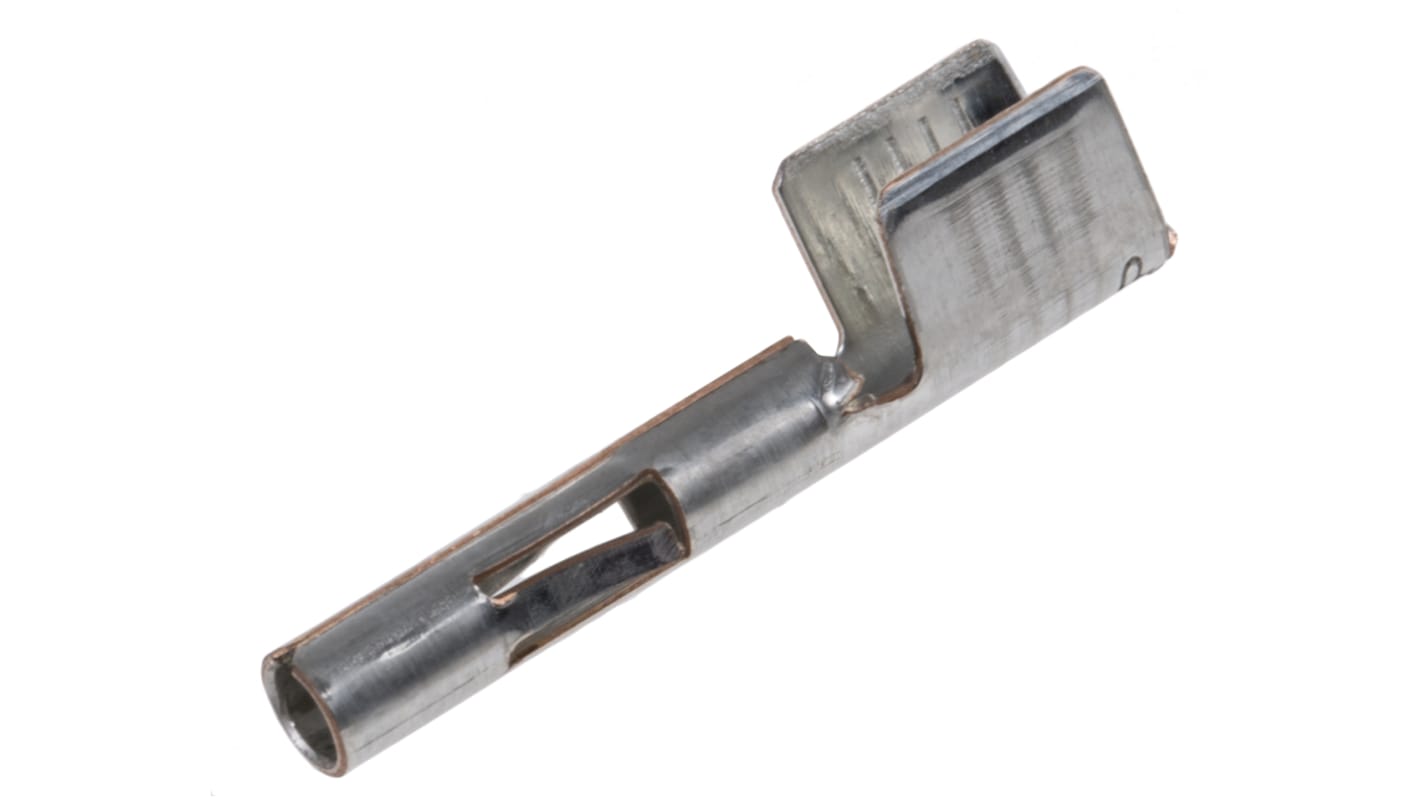

This image is representative of the product range
Bulk discount available
Subtotal (1 pack of 100 units)*
MYR70.00
FREE delivery for orders over RM 500.00
In Stock
- Plus 7,600 unit(s) shipping from 04 May 2026
- Plus 500 unit(s) shipping from 11 May 2026
- Plus 20,000 unit(s) shipping from 10 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Pack* |
|---|---|---|
| 100 - 600 | MYR0.70 | MYR70.00 |
| 700 - 1200 | MYR0.686 | MYR68.60 |
| 1300 + | MYR0.665 | MYR66.50 |
*price indicative
- RS Stock No.:
- 680-5230
- Distrelec Article No.:
- 304-43-372
- Mfr. Part No.:
- 350923-3
- Manufacturer:
- TE Connectivity
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | Crimp Terminal | |
| Gender | Female | |
| For Use With | Universal MATE-N-LOK Connector Housing | |
| Series | Universal MATE-N-LOK | |
| Current | 10A | |
| Contact Plating | Tin | |
| Minimum Wire Size AWG | 12AWG | |
| Minimum Wire Size mm² | 3mm² | |
| Maximum Wire Size AWG | 10AWG | |
| Contact Material | Phosphor Bronze | |
| Maximum Wire Size mm² | 5mm² | |
| Maximum Contact Resistance | 1Ω | |
| Termination Type | Crimp | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | No | |
| Length | 19.81mm | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type Crimp Terminal | ||
Gender Female | ||
For Use With Universal MATE-N-LOK Connector Housing | ||
Series Universal MATE-N-LOK | ||
Current 10A | ||
Contact Plating Tin | ||
Minimum Wire Size AWG 12AWG | ||
Minimum Wire Size mm² 3mm² | ||
Maximum Wire Size AWG 10AWG | ||
Contact Material Phosphor Bronze | ||
Maximum Wire Size mm² 5mm² | ||
Maximum Contact Resistance 1Ω | ||
Termination Type Crimp | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals No | ||
Length 19.81mm | ||
TE Connectivity Mini Universal MATE-N-LOK Contacts & Crimp Tooling
A range of various TE Connectivity Mini Universal MATE-N-LOK Contacts & Crimp Tooling.
TE Connectivity Mini-Universal MATE-N-LOK Connector System
