Units	Per Unit	Per Pack**
100 - 200	MYR2.952	MYR295.20
300 - 400	MYR2.91	MYR291.00
500 +	MYR2.852	MYR285.20

Select all	Attribute	Value
	Brand	Molex
	Gender	Female
	For Use With	Mini-Fit Jr, Mini-Fit TPA and Mini-Fit BMI Connector Housings
	Series	Mini-Fit
	Minimum Wire Size mm²	0.2mm²
	Maximum Wire Size mm²	0.8mm²
	Termination Method	Crimp
	Contact Plating	Gold
	Minimum Wire Size AWG	24AWG
	Maximum Wire Size AWG	18AWG
	Contact Material	Phosphor Bronze
	Series Number	5556
	Maximum Contact Resistance	10mΩ
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	+105°C

	Select all
	Brand Molex
	Gender Female
	For Use With Mini-Fit Jr, Mini-Fit TPA and Mini-Fit BMI Connector Housings
	Series Mini-Fit
	Minimum Wire Size mm² 0.2mm²
	Maximum Wire Size mm² 0.8mm²
	Termination Method Crimp
	Contact Plating Gold
	Minimum Wire Size AWG 24AWG
	Maximum Wire Size AWG 18AWG
	Contact Material Phosphor Bronze
	Series Number 5556
	Maximum Contact Resistance 10mΩ
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature +105°C

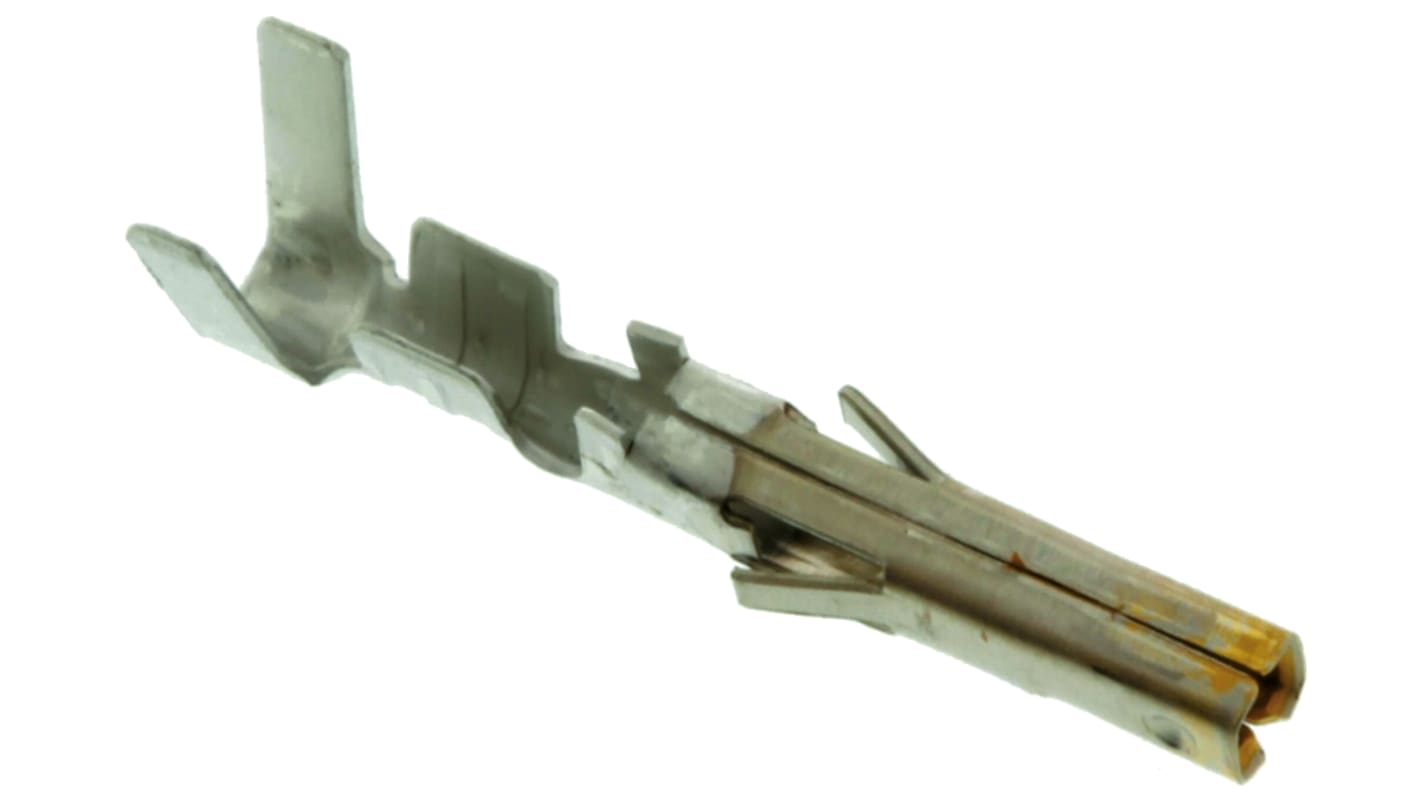

Molex Mini-Fit Series Female Crimp Terminal, 24AWG Min, 18AWG Max

FREE delivery for orders over MYR500.00

Molex Mini-Fit Series Crimp Terminal, 10 mΩ Maximum Contact Resistance, Crimp Termination - 39-00-0181

Features & Benefits

Applications

Can it be used with Mini-Fit Jr connectors?

Will it withstand high temperatures?

Is it compatible with 18 AWG wire sizes?
