Units	Per Unit	Per Pack**
100 - 900	MYR0.467	MYR46.70
1000 - 2900	MYR0.458	MYR45.80
3000 - 7400	MYR0.449	MYR44.90
7500 - 14900	MYR0.44	MYR44.00
15000 +	MYR0.432	MYR43.20

Select all	Attribute	Value
	Brand	Molex
	Gender	Female
	For Use With	SL Connector Housing
	Series	SL
	Minimum Wire Size mm²	0.05mm²
	Termination Method	Crimp
	Maximum Wire Size mm²	0.2mm²
	Contact Plating	Gold
	Minimum Wire Size AWG	30AWG
	Contact Material	Phosphor Bronze
	Maximum Wire Size AWG	24AWG
	Series Number	70058
	Maximum Contact Resistance	15mΩ
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	+105°C

	Select all
	Brand Molex
	Gender Female
	For Use With SL Connector Housing
	Series SL
	Minimum Wire Size mm² 0.05mm²
	Termination Method Crimp
	Maximum Wire Size mm² 0.2mm²
	Contact Plating Gold
	Minimum Wire Size AWG 30AWG
	Contact Material Phosphor Bronze
	Maximum Wire Size AWG 24AWG
	Series Number 70058
	Maximum Contact Resistance 15mΩ
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature +105°C

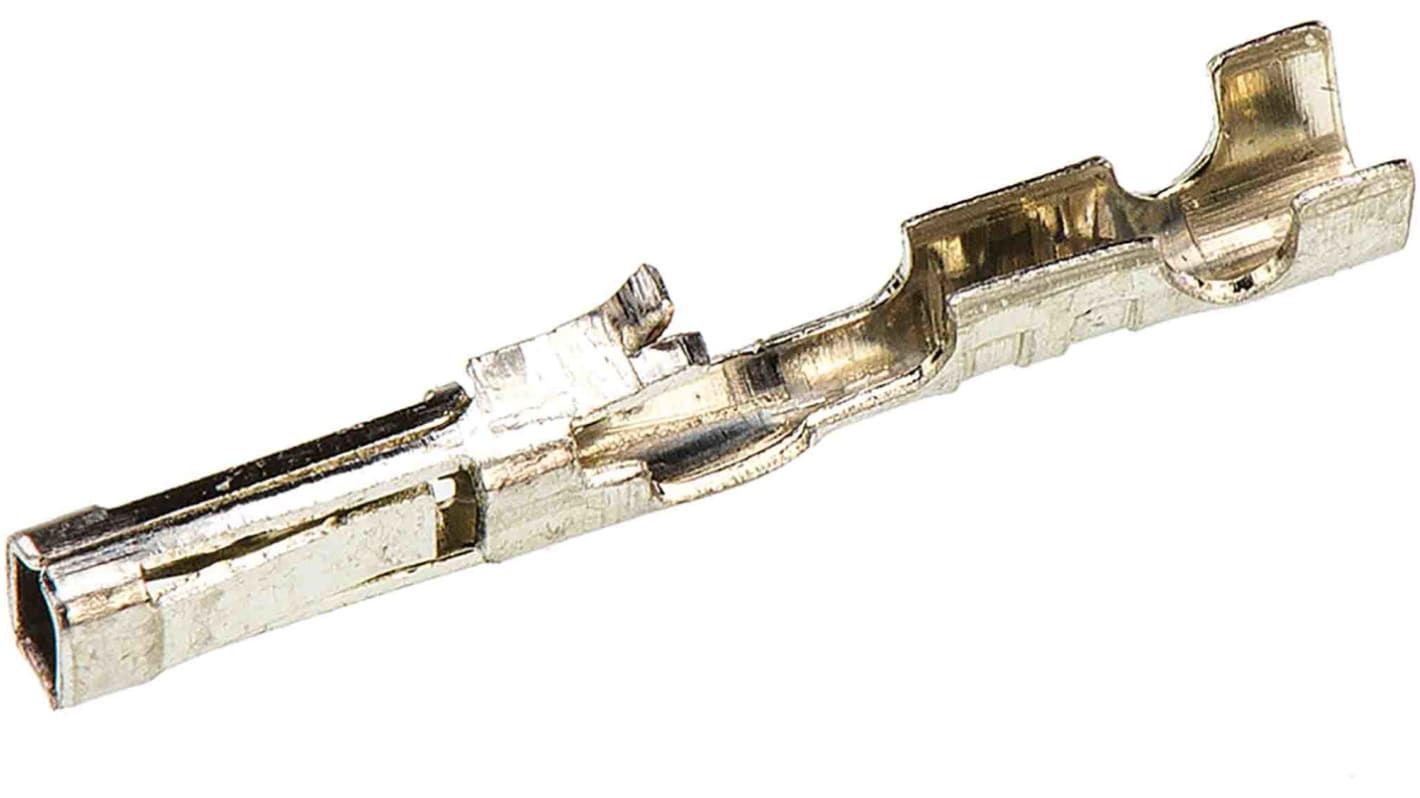

Molex SL Series Female Crimp Terminal, 30AWG Min, 24AWG Max

FREE delivery for orders over MYR500.00

Molex SL Crimp Contacts, 70058, 71851 and 70021 Series

Applications:
