Units	Per Unit	Per Pack**
100 - 1200	MYR0.96	MYR96.00
1300 - 2400	MYR0.94	MYR94.00
2500 +	MYR0.911	MYR91.10

Select all	Attribute	Value
	Brand	Molex
	Gender	Female
	For Use With	C-Grid III Connector Housing
	Series	C-Grid III
	Minimum Wire Size mm²	0.2mm²
	Maximum Wire Size mm²	0.35mm²
	Termination Method	Crimp
	Contact Plating	Gold
	Minimum Wire Size AWG	24AWG
	Contact Material	Phosphor Bronze
	Maximum Wire Size AWG	22AWG
	Series Number	90119
	Maximum Contact Resistance	20mΩ
	Maximum Current	3A
	Minimum Operating Temperature	-55°C
	Maximum Operating Temperature	+105°C

	Select all
	Brand Molex
	Gender Female
	For Use With C-Grid III Connector Housing
	Series C-Grid III
	Minimum Wire Size mm² 0.2mm²
	Maximum Wire Size mm² 0.35mm²
	Termination Method Crimp
	Contact Plating Gold
	Minimum Wire Size AWG 24AWG
	Contact Material Phosphor Bronze
	Maximum Wire Size AWG 22AWG
	Series Number 90119
	Maximum Contact Resistance 20mΩ
	Maximum Current 3A
	Minimum Operating Temperature -55°C
	Maximum Operating Temperature +105°C

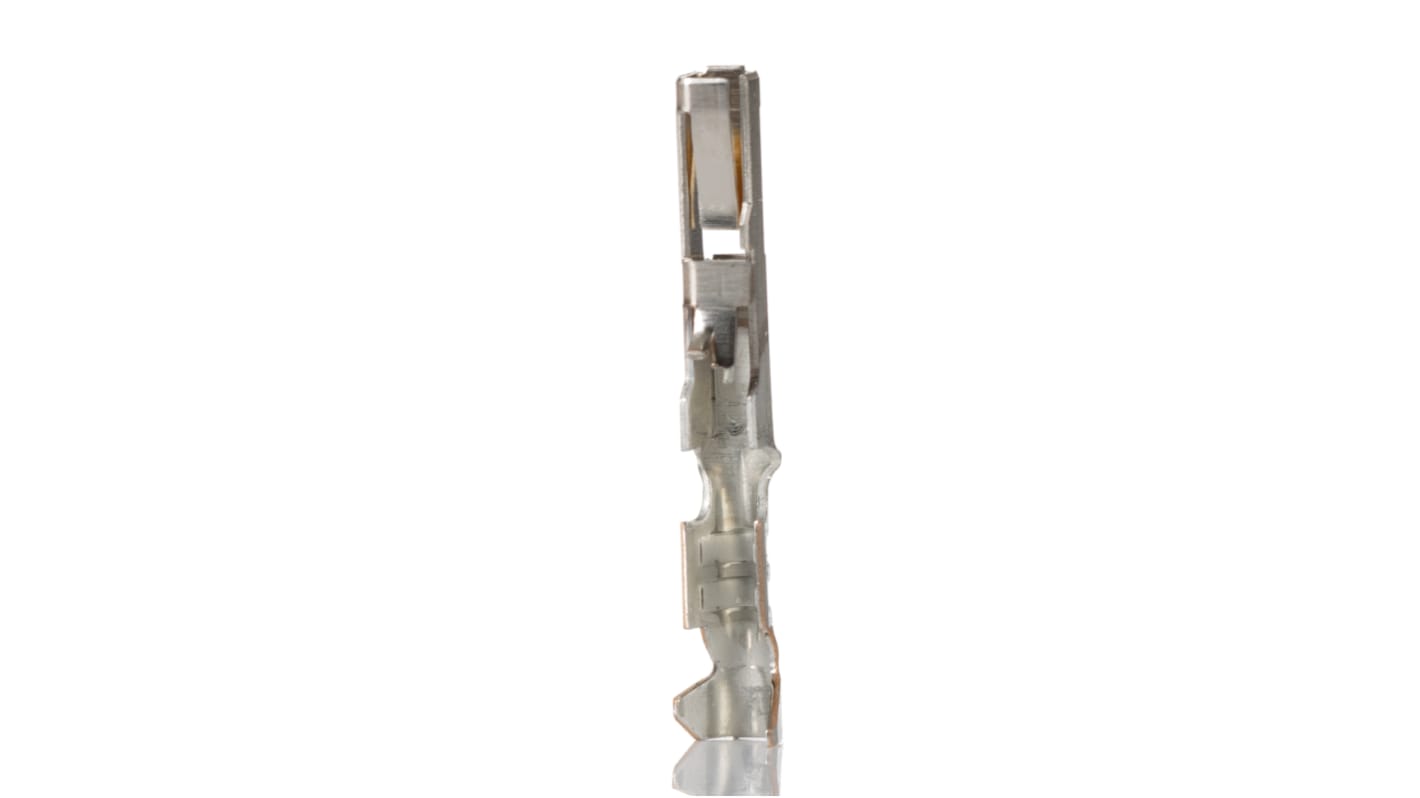

Molex C-Grid III Series Female Crimp Terminal, 24AWG Min, 22AWG Max

FREE delivery for orders over MYR500.00

Molex Crimp Terminal, 3A Current Rating, 20mΩ Maximum Contact Resistance - C-Grid III Series - 90119-2111

Features & Benefits

Applications

What are the benefits of crimp termination?
