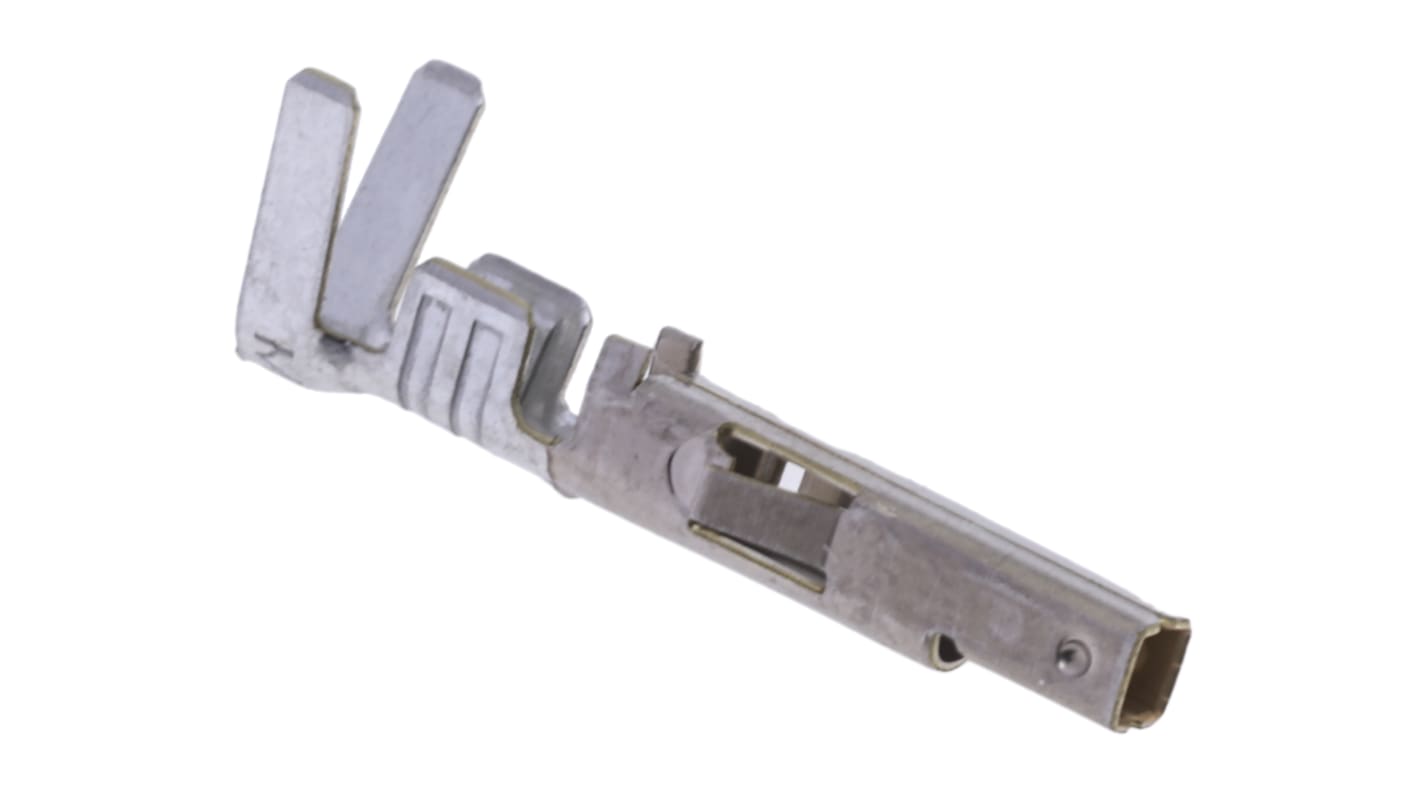

Molex Mini-Fit Series Female Crimp Terminal, 24AWG Min, 18AWG Max

Molex Mini-Fit pin and receptacle crimp contacts are connector contacts for use in the Mini-Fit Junior plug and receptacle housings. These crimp pin and receptacle terminals feature multiple points of contact for a reliable electrical connection and a higher current carrying capacity. Locking tangs on the crimp contacts secure them firmly in the connector housing. These Mini-Fit crimp contacts are available with a range of platings and wire size ranges for design flexibility.

Features and Benefits

- Multiple points of contact for reliable electrical connection

- Locking tangs for secure connection in housing

- Range of platings and wire

Applications

- Automotive

- Industrial

- Industrial Automation

- Medical

- Communications and Networking

- Consumer Electronics

More Information :

The extraction tool for this range of crimp connector contacts is 2155900

This crimp terminal is designed to use with Mini-Fit Jr connectors. Constructed from brass with selective gold and tin plating, it accommodates wire sizes ranging from 18 to 24 AWG. With a capability to handle a maximum current of 9A, it is engineered for reliable electrical connections in various applications.

• High-quality brass contact terminals ensure durability and efficiency
• Gold-plated connectors provide excellent corrosion resistance
• Ideal for applications requiring reliable crimping and connection

• Suitable for power connections in automation and electrical systems
• Ideal for Mini-Fit crimp male terminals for robust assemblies
• Used for both electrical and mechanical integration projects

The terminal can handle wire insulation diameters ranging from 1.30 to 3.10 mm, allowing flexibility for various cable types.

The crimping method establishes a reliable connection between the wire and the terminal, enhancing conductivity and ensuring minimal contact resistance for optimal performance.

The terminal is designed to function effectively in extreme conditions, with a minimum operating temperature of -40 °C and a maximum of +105 °C.

Molex Minifit Jr.™ Series
