Molex 2.36mm Diameter Pin and Receptacle Crimp Terminals
2.36mm diameter pin and receptacle crimp terminals with an industry standard size which allows them to be used in the 5.03mm pitch Standard .093" and 6.71mm pitch 3191 series connector housings. These crimp terminals can be used in either plug or receptacle housings for design flexibility and are available with a tin or gold plating and a range of wire sizes.
Application:
• Consumer Electronics
• Communications
• Networking
• Portable Devices
• Communications
• Networking
• Portable Devices
Approvals

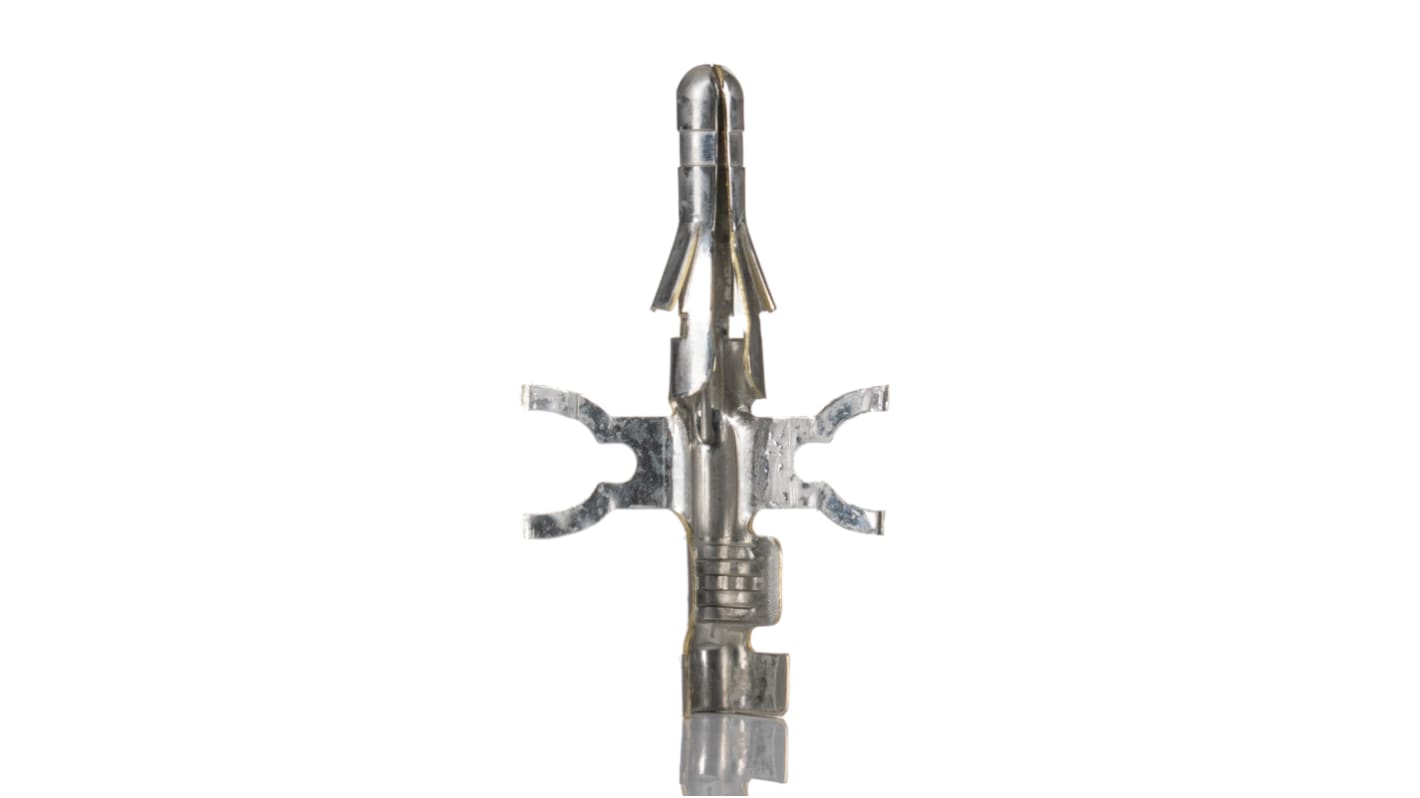

Molex Crimp Terminal, Brass Construction, 2.36mm Diameter - STANDARD .093" 1380 Series - 02-09-2116
Clamp a wire connection to your board using this male crimp terminal from Molex. It accommodates cables ranging in size from 22 to 18AWG for flexibility when fixing in your wiring. A wide operating temperature range from -40°C to +105°C means it stands up to harsh environments. To really seal the deal, enclose the terminal in a connector housing from the STANDARD .093" series (such as 236-3123) to shield it from contaminants.
Features & Benefits
Crimp or compression termination method for straightforward assembly
Tin-plated contact resists corrosion
100 in a pack to see you through multiple connections
25 mating cycles for durable performance
Compact diameter of 2.36mm to handle small conductors
Tin-plated contact resists corrosion
100 in a pack to see you through multiple connections
25 mating cycles for durable performance
Compact diameter of 2.36mm to handle small conductors
Applications
Electrical engineering
Research and development labs
Computer networking
Consumer units
Research and development labs
Computer networking
Consumer units
What material is the terminal's contact made from?
It's made from highly conductive brass to ensure stable electrical transmission.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Molex 2.36mm Diameter Standard .093" Pin and Socket Range
Specifications
Attribute | Value |
---|---|
Gender | Male |
For Use With | STANDARD .093" Connector Housing |
Series | STANDARD .093" |
Minimum Wire Size mm² | 0.35mm² |
Termination Method | Crimp |
Maximum Wire Size mm² | 0.8mm² |
Contact Plating | Tin |
Minimum Wire Size AWG | 22AWG |
Contact Material | Brass |
Maximum Wire Size AWG | 18AWG |
Series Number | 1380 |
Maximum Contact Resistance | 10mΩ |
Minimum Operating Temperature | -40°C |
Maximum Operating Temperature | +105°C |
