Units	Per Unit	Per Pack**
100 - 900	MYR3.081	MYR308.10
1000 - 2900	MYR3.016	MYR301.60
3000 - 7400	MYR2.925	MYR292.50
7500 +	MYR2.853	MYR285.30

Select all	Attribute	Value
	Brand	Molex
	Gender	Female
	For Use With	STANDARD .093" Connector Housing
	Series	STANDARD .093"
	Minimum Wire Size mm²	0.5mm²
	Maximum Wire Size mm²	2mm²
	Termination Method	Crimp
	Contact Plating	Gold
	Minimum Wire Size AWG	20AWG
	Contact Material	Brass Alloy
	Maximum Wire Size AWG	14AWG
	Series Number	1189
	Maximum Contact Resistance	10mΩ
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	+105°C

	Select all
	Brand Molex
	Gender Female
	For Use With STANDARD .093" Connector Housing
	Series STANDARD .093"
	Minimum Wire Size mm² 0.5mm²
	Maximum Wire Size mm² 2mm²
	Termination Method Crimp
	Contact Plating Gold
	Minimum Wire Size AWG 20AWG
	Contact Material Brass Alloy
	Maximum Wire Size AWG 14AWG
	Series Number 1189
	Maximum Contact Resistance 10mΩ
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature +105°C

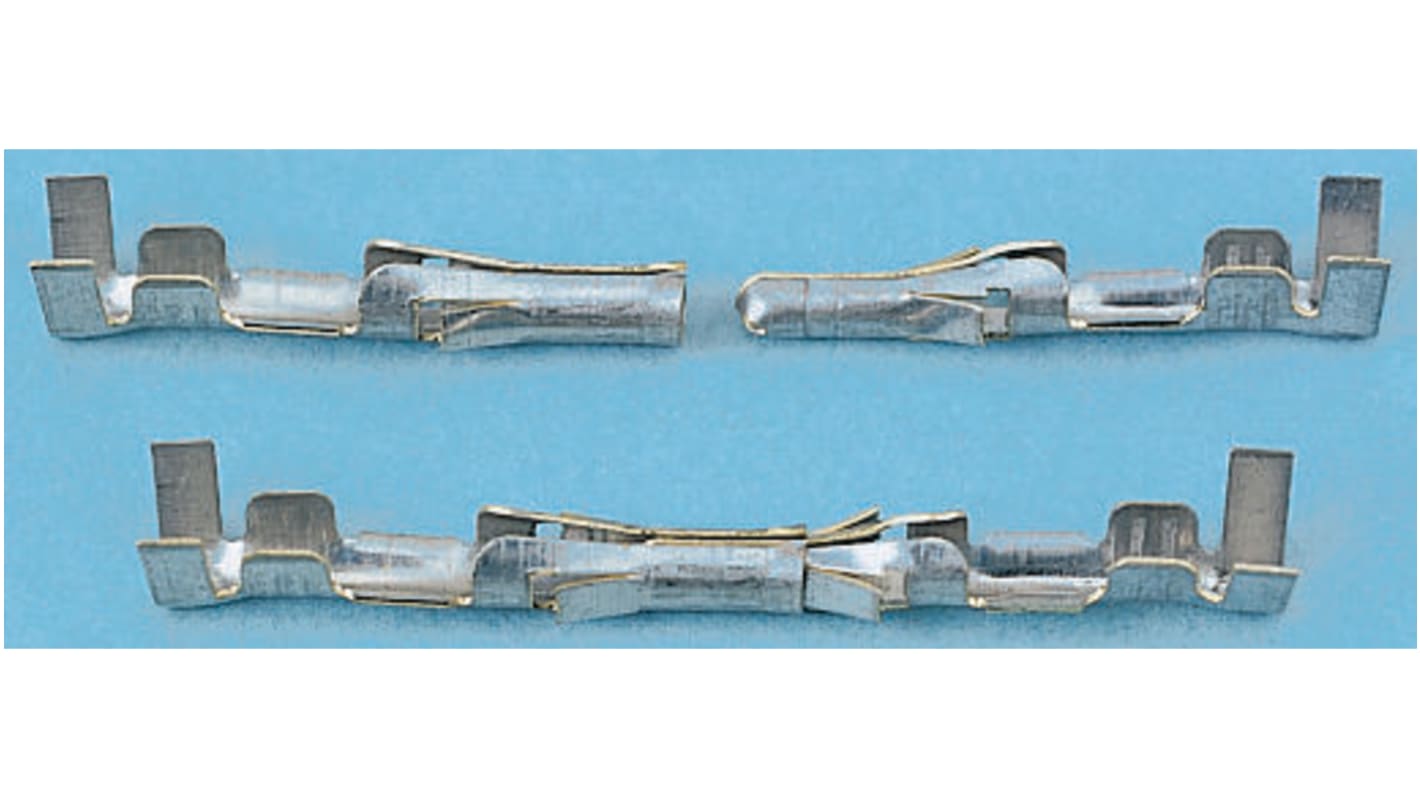

Molex STANDARD .093" Series Female Crimp Terminal, 20AWG Min, 14AWG Max

FREE delivery for orders over MYR500.00

Molex 2.36mm Diameter Pin and Receptacle Crimp Terminals

Application:

Approvals

For these production packs, non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
