Molex 50372 Series Female Crimp Terminal, 26 AWG Min Crimp, 22 AWG Max

RS Stock No.:: 167-6271
Mfr. Part No.:: 50372-8000
Manufacturer:: Molex

Molex 50372 Series Female Crimp Terminal, 26 AWG Min Crimp, 22 AWG Max

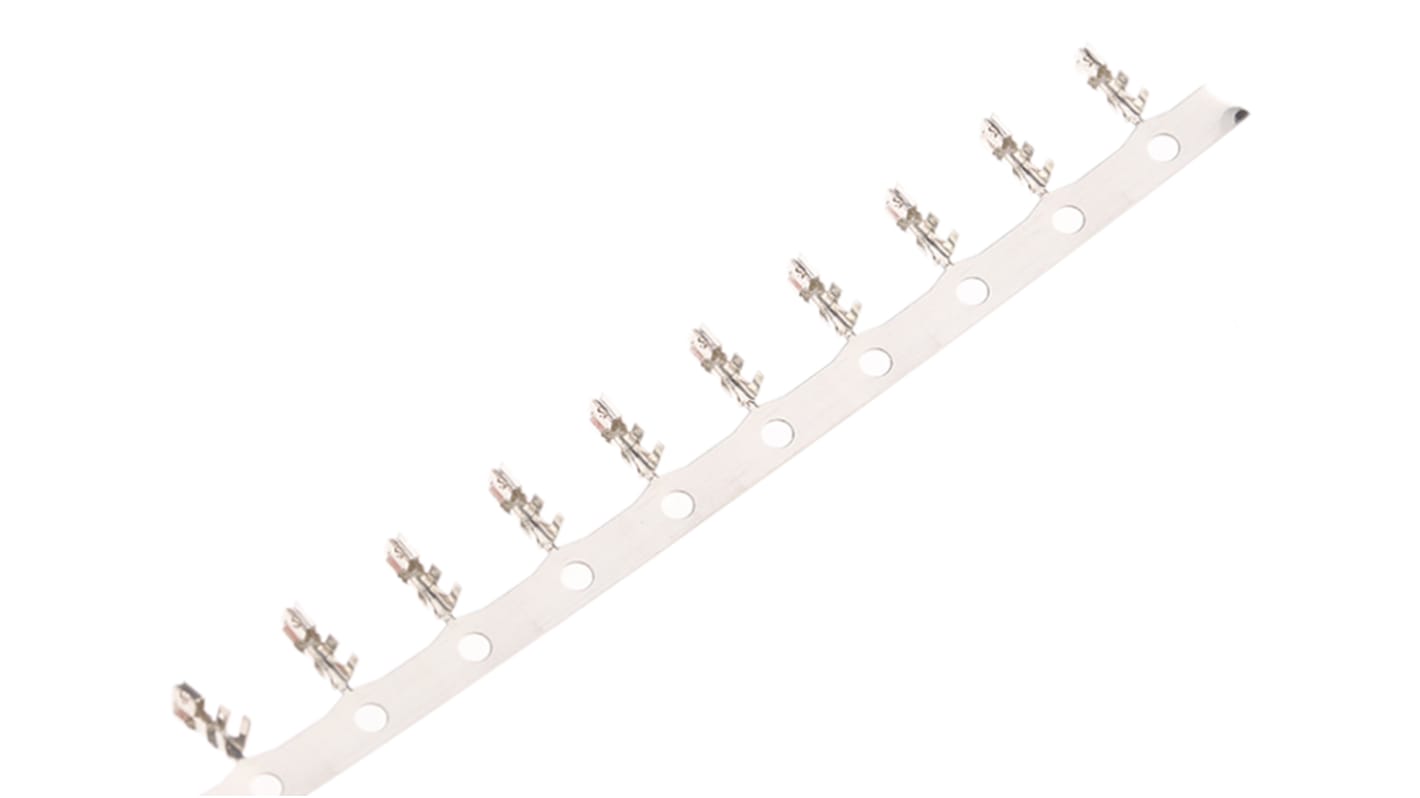

This image is representative of the product range

Currently unavailable

Sorry, we don't know when this will be back in stock.

RS Stock No.:: 167-6271
Mfr. Part No.:: 50372-8000
Manufacturer:: Molex

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Molex
	Product Type	Crimp Terminal
	Gender	Female
	For Use With	Micro-Latch and Mi II Connector Housings
	Current	2A
	Series	50372
	Minimum Wire Size AWG	26AWG
	Minimum Wire Size mm²	0.1mm²
	Contact Plating	Tin
	Contact Material	Phosphor Bronze
	Maximum Wire Size AWG	22AWG
	Maximum Wire Size mm²	0.35mm²
	Maximum Contact Resistance	20mΩ
	Termination Type	Crimp
	Minimum Operating Temperature	-55°C
	Maximum Operating Temperature	105°C
	Standards/Approvals	No

	Select all
	Brand Molex
	Product Type Crimp Terminal
	Gender Female
	For Use With Micro-Latch and Mi II Connector Housings
	Current 2A
	Series 50372
	Minimum Wire Size AWG 26AWG
	Minimum Wire Size mm² 0.1mm²
	Contact Plating Tin
	Contact Material Phosphor Bronze
	Maximum Wire Size AWG 22AWG
	Maximum Wire Size mm² 0.35mm²
	Maximum Contact Resistance 20mΩ
	Termination Type Crimp
	Minimum Operating Temperature -55°C
	Maximum Operating Temperature 105°C
	Standards/Approvals No

Molex 50372 Series Female Crimp Terminal, 26 AWG Min Crimp, 22 AWG Max

2.0mm Mi II Crimp Terminals, 50372 Series

2.0mm Wire to Board - Molex
