MPN

JST Male Crimp Terminal, 28 AWG Min Crimp, 22 AWG Max

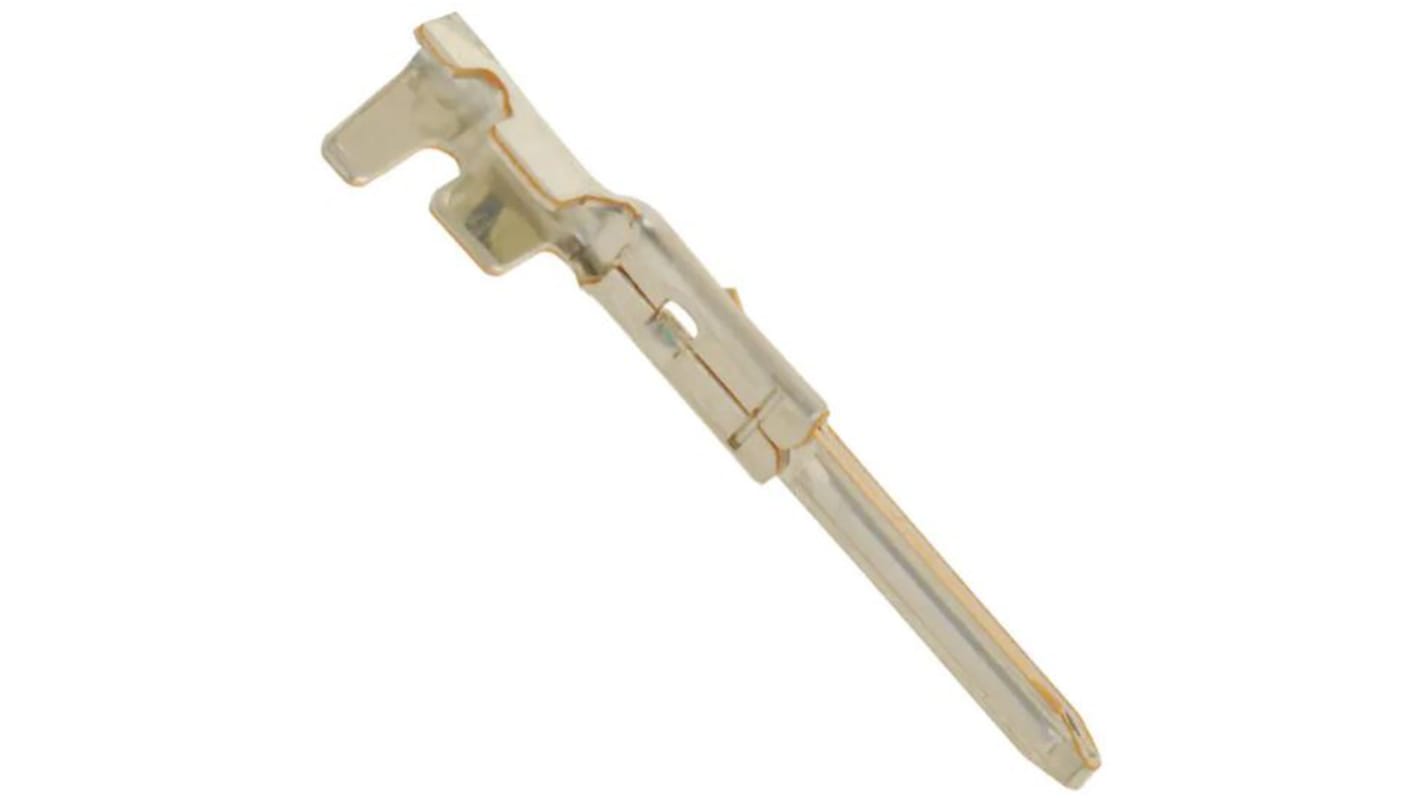

This image is representative of the product range

Bulk discount available

Subtotal (1 pack of 100 units)*

MYR36.30

In Stock

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

*price indicative

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	JST
	Gender	Male
	Product Type	Crimp Terminal
	For Use With	RCY and SM Connector Housings
	Current	3A
	Minimum Wire Size AWG	28AWG
	Contact Plating	Tin
	Maximum Wire Size AWG	22AWG
	Contact Material	Phosphor Bronze
	Maximum Contact Resistance	20mΩ
	Termination Type	Crimp
	Minimum Operating Temperature	-25°C
	Maximum Operating Temperature	85°C
	Standards/Approvals	No
	Length	23.3mm

	Select all
	Brand JST
	Gender Male
	Product Type Crimp Terminal
	For Use With RCY and SM Connector Housings
	Current 3A
	Minimum Wire Size AWG 28AWG
	Contact Plating Tin
	Maximum Wire Size AWG 22AWG
	Contact Material Phosphor Bronze
	Maximum Contact Resistance 20mΩ
	Termination Type Crimp
	Minimum Operating Temperature -25°C
	Maximum Operating Temperature 85°C
	Standards/Approvals No
	Length 23.3mm

The SM series are 2.5mm pitch, wire-to-wire connectors that perform reliably in high-density, small current applications.

High contact pressure

Secure lock mechanism

Mountable on panels of various thickness without using tools.

The contacts are individually surrounded by housing walls.
