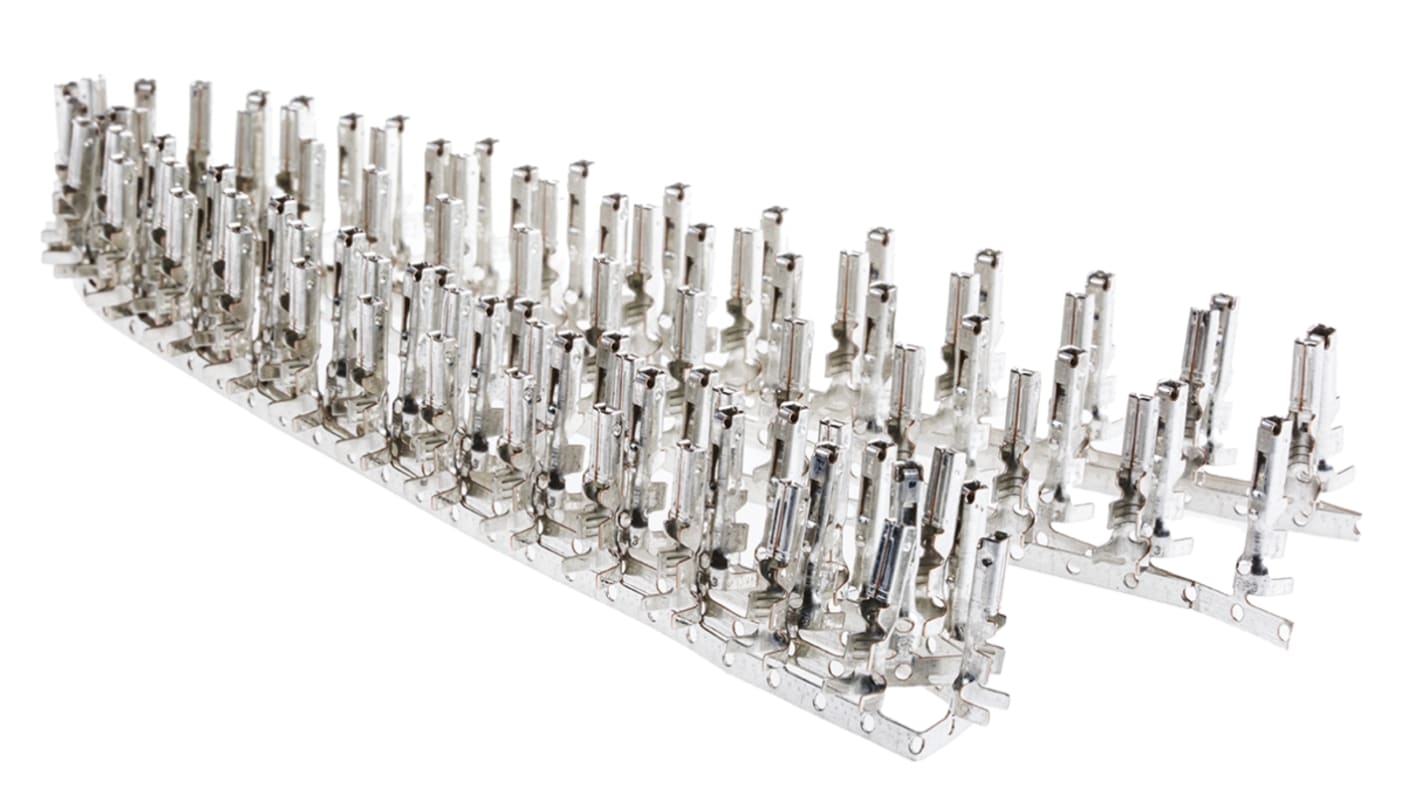

TE Connectivity MINI-MIC Series Female Crimp Terminal, 17AWG Min, 15AWG Max

From TE Connectivity, this range of tab and receptacle style crimp contacts are for use with the SUPERSEAL series of automotive wire connectors. The SUPERSEAL crimp contacts utilise a 2-step positive lock when the contact is inserted into housing, and can maintain an IP67 sealing if used in conjunction with appropriate wire seals (see stock number 314-1176.)

The crimp contacts in this range are constructed from tin plated brass for the tabs and tin plated phosphor bronze for the receptacles.

The range also includes appropriate tooling.

• 368-4500 (9-1579007-1) for the SUPER-SEAL 1.5; Tab and Receptacle Contacts
• 368-4516 (785084-1) for SUPER-SEAL 1.5 (secondary lock of TAB Connector), see stock number 314-1182 typical
• Extraction tool 1 removes the contact from its primary location, extraction tool 2 removes the contact from the secondary lock.

Extraction Tooling for the SUPERSEAL crimp contacts includes:

The TE Connectivity 282110-1 is a receptacle contact for 0.75 to 1.5 mm wire sizes. It is tin-plated bronze and offers low power transmission 0-24A. The 282110-1 comes from the AMP Superseal 1.5mm series.

Where is it used?
The entire AMP Superseal 1.5mm series is designed for the automotive industry. They are designed to withstand high temperatures and vibration pressures, with a long lifespan. AMP Superseal 1.5 series connectors offer reliability and are ideal for waterproof designs.
The 282110-1 contact can be used in connectors for automotive, agriculture and industrial machinery, such as trucks, buses and off-road vehicles.

Features:
Female PCB Connector Contact
Receptacle and tab
Tin-plated bronze
15-18 AWG wire size

TE Connectivity SUPERSEAL Connectors, 1.0 mm and 1.5 mm System

Developed to meet the constantly increasing needs and requirements for safety and reliability in the electrical connection field, these connectors fulfill all the requirements prescribed by the various automotive and industrial standards. Typical applications include various automotive sensor devices, oil pressure senders, water temperature monitoring or any application requiring waterproof protection to IP67.

Features and Benefits

Sturdy and reliable contacts
Double contact spring design
Secondary lock ensures correct and complete insertion of the contact
Silicone rubber seals
