TE Connectivity 2401612 Series Crimp Terminal, IDC Termination, 25AWG Min, 22AWG Max

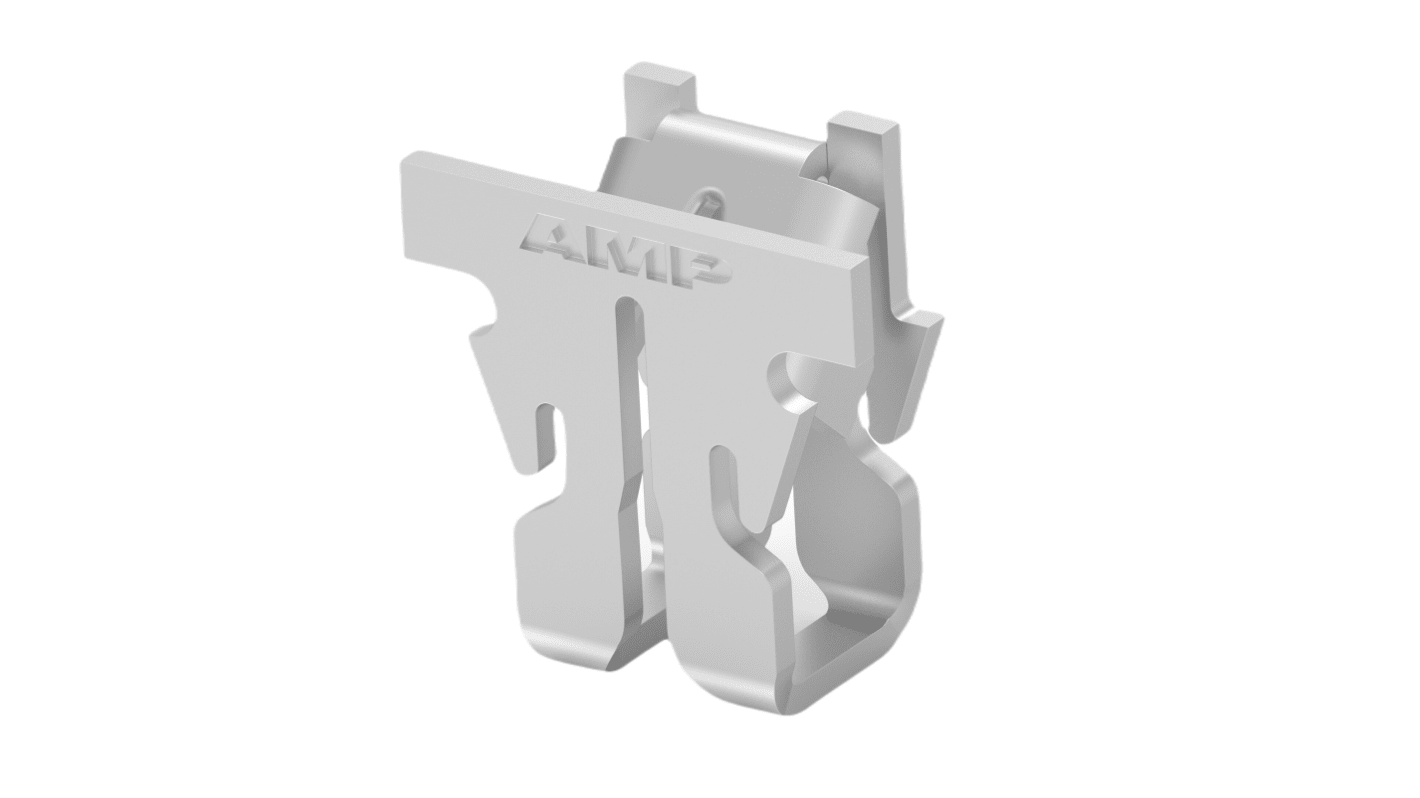

The TE Connectivity Mag-Mate is a specialized poke-in magnet wire terminal designed for reliable and efficient connections in electrical applications. It accommodates 0.57 to 0.72 mm aluminium wire and 0.45 to 0.64 mm Magnet wire sizes, making it ideal for magnet wire and solid wire types. TE Connectivity has developed 200 box MAG-MATE terminals to benefit electric motor manufacturers designing compact motor systems. With 30% less volume than 300 box MAG-MATE terminals and compatibility with a wide range of copper and aluminum magnet wire sizes, this insulation displacement contact (IDC) terminal can support a variety of small motor applications with reliable, efficient, gas-tight connections.

Side feed strip oriented
REACH and RoHS compliant
Special cavity size
Magnet wire terminal for compact motor systems
Insulation displacement contact (IDC)
Accepts copper and aluminum magnet wire
Space-saving design suited for compact motor systems
Compatible with 30-21AWG copper and 26-20AWG aluminum magnet wire
IDC magnet wire contact creates a reliable, cost-effective and efficient connection

Air conditioner fan motor
Seat adjustment motor
Small power motors
