Molex 217348 Series Female Crimp Terminal, 22 AWG Min Crimp, 20 AWG Max
- RS Stock No.:
- 180-964
- Mfr. Part No.:
- 2173488100
- Manufacturer:
- Molex

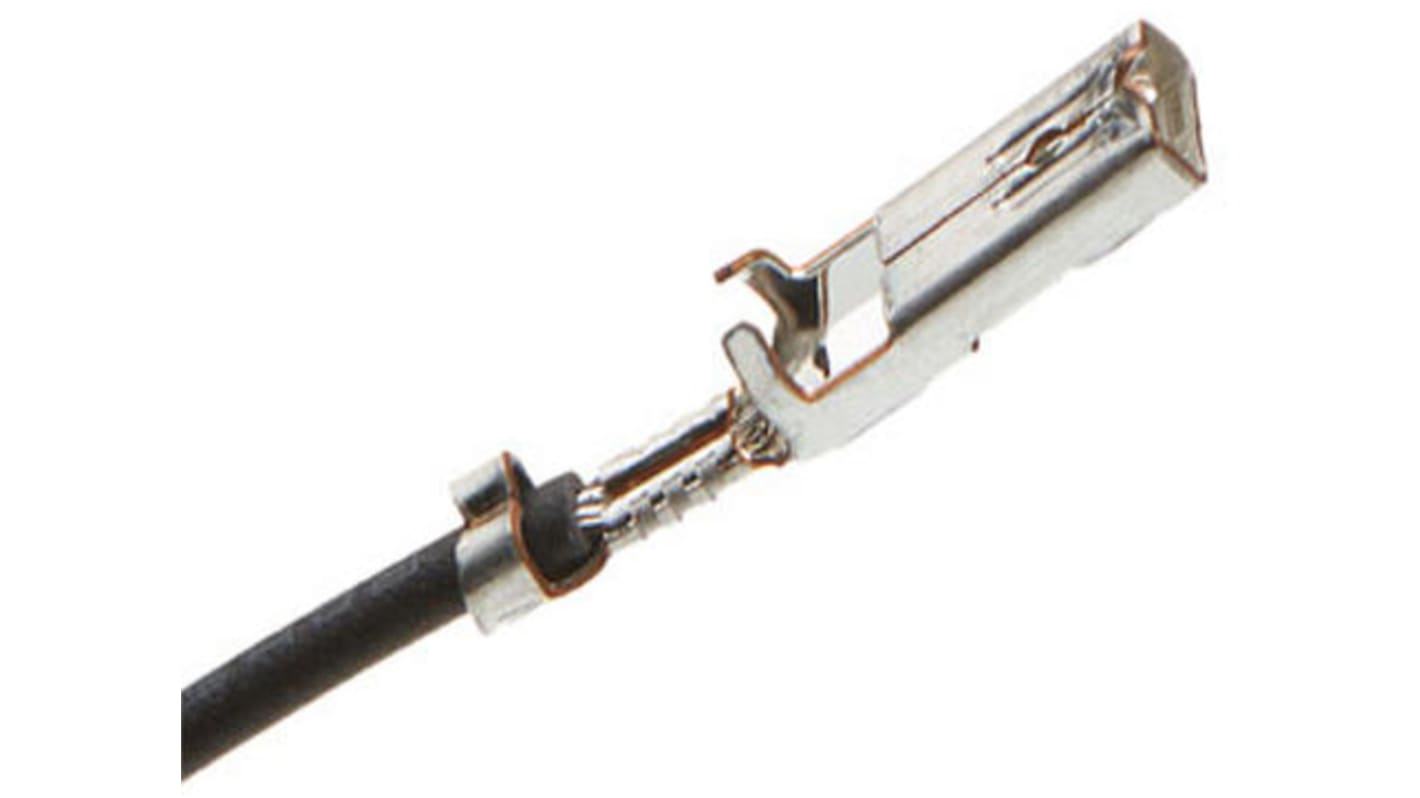

This image is representative of the product range
Subtotal (1 bag of 100 units)*
MYR56.98
FREE delivery for orders over RM 500.00
In Stock
- 150 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s) | Per Bag | Per Unit* |
|---|---|---|
| 1 + | MYR56.98 | MYR0.57 |
*price indicative
- RS Stock No.:
- 180-964
- Mfr. Part No.:
- 2173488100
- Manufacturer:
- Molex
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Gender | Female | |
| Product Type | Crimp Terminal | |
| For Use With | VersaBlade High-Temperature Hybrid Receptacle Housing | |
| Current | 8A | |
| Series | 217348 | |
| Contact Plating | Tin | |
| Minimum Wire Size AWG | 22AWG | |
| Maximum Wire Size AWG | 20AWG | |
| Contact Material | Copper Alloy | |
| Termination Type | Crimp | |
| Standards/Approvals | UL E29179, RoHS | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Gender Female | ||
Product Type Crimp Terminal | ||
For Use With VersaBlade High-Temperature Hybrid Receptacle Housing | ||
Current 8A | ||
Series 217348 | ||
Contact Plating Tin | ||
Minimum Wire Size AWG 22AWG | ||
Maximum Wire Size AWG 20AWG | ||
Contact Material Copper Alloy | ||
Termination Type Crimp | ||
Standards/Approvals UL E29179, RoHS | ||
The Molex Crimp Terminal is designed for power and wire to wire applications. It is suitable for use with wire sizes 20 22 AWG and supports a maximum current of 8.0A per contact and a voltage of 600V. The Terminal features a crimp or compression termination Interface style for secure and reliable connections in high temperature environments.
Copper alloy construction
Tin plating at mating and termination
Flammability 94V 0
