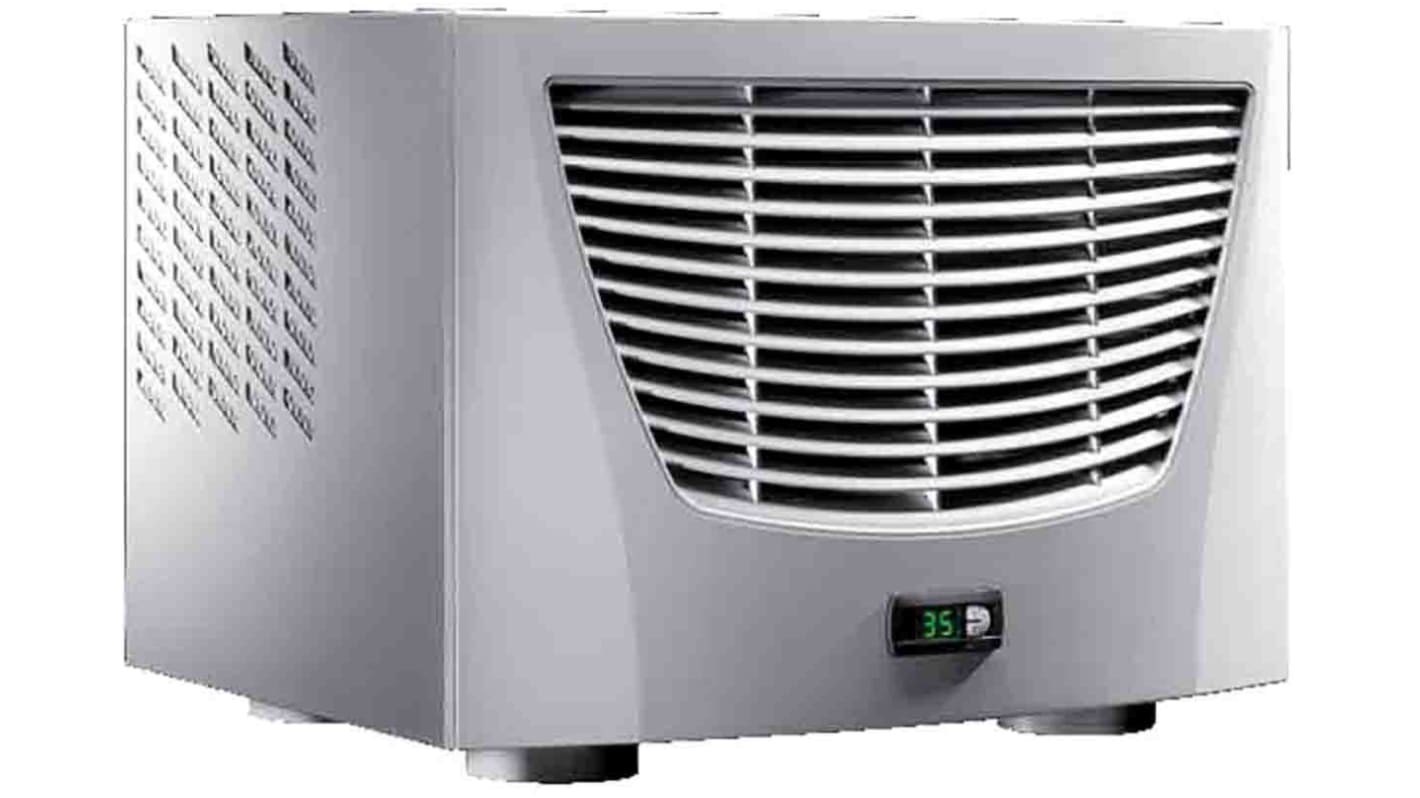

Rittal TopTherm Series, 1760 m³/h Enclosure Cooling Unit, 2000W 400V ac 417 mm 597mm 475 mm
- RS Stock No.:
- 224-0087
- Mfr. Part No.:
- 3385640
- Manufacturer:
- Rittal
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
MYR27,766.81
Stock information currently inaccessible - Please check back later
Units | Per Unit |
|---|---|
| 1 - 4 | MYR27,766.81 |
| 5 - 9 | MYR26,656.14 |
| 10 + | MYR25,545.47 |
*price indicative
- RS Stock No.:
- 224-0087
- Mfr. Part No.:
- 3385640
- Manufacturer:
- Rittal
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Rittal | |
| Maximum Cooling Power | 2000W | |
| Product Type | Enclosure Cooling Unit | |
| Air Flow | 1760m³/h | |
| Input Power | 950W | |
| Mount Type | Roof | |
| Connection Type | Plug-In Terminal Strip | |
| Power Consumption | 1240W | |
| IP Rating | IP54, IP34 | |
| Maximum Supply Voltage | 400V ac | |
| Type of installation | Roof Mount | |
| Material | Stainless Steel | |
| Maximum Temperature Setting | 55°C | |
| Certification | UL, CSA, cUr, cUL, FTTA uR | |
| Min Temperature Setting | -40°C | |
| Width | 597mm | |
| Standards/Approvals | CSA UL+C-UL-FTTA UR+C-UR | |
| Weight | 48kg | |
| Series | TopTherm | |
| Depth | 475mm | |
| Height | 417mm | |
| Cooler Type | Roof Connected | |
| Nominal Current | 3.7A | |
| Refrigerant Type | R134A | |
| Cooling Capacity | 4kW | |
| Frequency | 60Hz | |
| Select all | ||
|---|---|---|
Brand Rittal | ||
Maximum Cooling Power 2000W | ||
Product Type Enclosure Cooling Unit | ||
Air Flow 1760m³/h | ||
Input Power 950W | ||
Mount Type Roof | ||
Connection Type Plug-In Terminal Strip | ||
Power Consumption 1240W | ||
IP Rating IP54, IP34 | ||
Maximum Supply Voltage 400V ac | ||
Type of installation Roof Mount | ||
Material Stainless Steel | ||
Maximum Temperature Setting 55°C | ||
Certification UL, CSA, cUr, cUL, FTTA uR | ||
Min Temperature Setting -40°C | ||
Width 597mm | ||
Standards/Approvals CSA UL+C-UL-FTTA UR+C-UR | ||
Weight 48kg | ||
Series TopTherm | ||
Depth 475mm | ||
Height 417mm | ||
Cooler Type Roof Connected | ||
Nominal Current 3.7A | ||
Refrigerant Type R134A | ||
Cooling Capacity 4kW | ||
Frequency 60Hz | ||
The Rittal SK series is the roof mounted cooling units with integral e-comfort controller with RiNano coating on the condenser and electric condensate evaporation as standard. The total cooling output is 2 kW with 3.5 A rated current and the material used is the stainless steel.
Nano coated condenser
Fully wired ready for connection
External circuit IP 34
Internal circuit IP 54
May be linked to the IoT interface via the Blue e IoT adaptor
