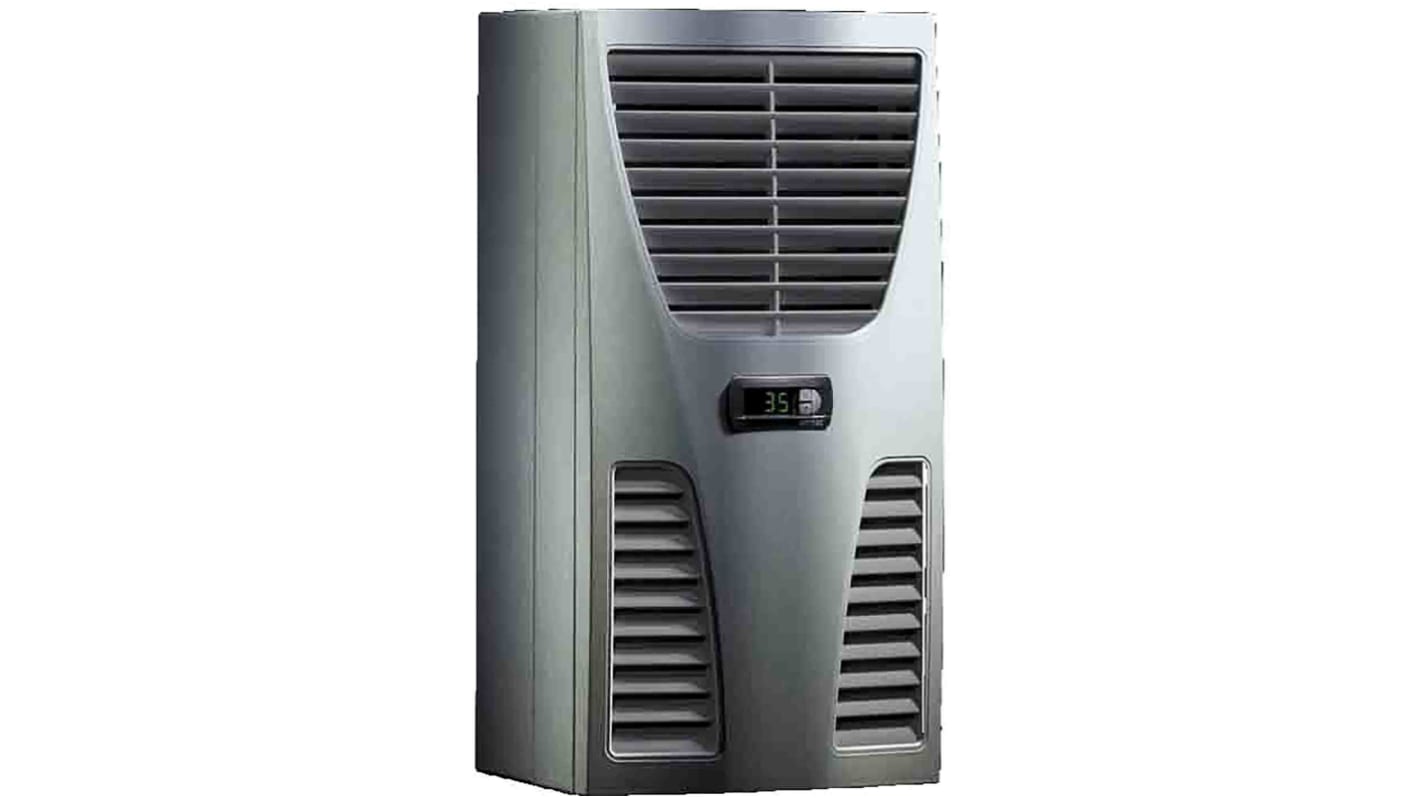

Rittal TopTherm Blue e Series Enclosure Cooling Unit, 850W, 550 m³/h 230V ac 550 mm 280mm 280 mm
- RS Stock No.:
- 224-0051
- Mfr. Part No.:
- 3361600
- Manufacturer:
- Rittal
Bulk discount available
Subtotal (1 unit)*
MYR26,829.10
FREE delivery for orders over RM 500.00
Stocked by manufacturer
- Ready to ship from 18 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 4 | MYR26,829.10 |
| 5 - 9 | MYR26,077.88 |
| 10 + | MYR25,004.70 |
*price indicative
- RS Stock No.:
- 224-0051
- Mfr. Part No.:
- 3361600
- Manufacturer:
- Rittal
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Rittal | |
| Maximum Cooling Power | 850W | |
| Product Type | Enclosure Cooling Unit | |
| Air Flow | 550m³/h | |
| Input Power | 400W | |
| Mount Type | Wall | |
| Power Consumption | 500W | |
| Maximum Supply Voltage | 230V ac | |
| IP Rating | IP54, IP34 | |
| Material | Stainless Steel | |
| Certification | UL, CCC Exception Letter CSA, FTTA, cUr, cUL, uR | |
| Min Temperature Setting | 20°C | |
| Maximum Temperature Setting | 55°C | |
| Depth | 280mm | |
| Height | 550mm | |
| Series | TopTherm Blue e | |
| Standards/Approvals | Approval overview CCC exception letter CSA UL+C-UL-FTTA UR+C-UR | |
| Weight | 22kg | |
| Width | 280mm | |
| Cooler Type | Blue wall Mounted Cooling Units | |
| Frequency | 60Hz | |
| Cooling Capacity | 0.75kW | |
| Refrigerant Type | Refrigerant: R134A | |
| Select all | ||
|---|---|---|
Brand Rittal | ||
Maximum Cooling Power 850W | ||
Product Type Enclosure Cooling Unit | ||
Air Flow 550m³/h | ||
Input Power 400W | ||
Mount Type Wall | ||
Power Consumption 500W | ||
Maximum Supply Voltage 230V ac | ||
IP Rating IP54, IP34 | ||
Material Stainless Steel | ||
Certification UL, CCC Exception Letter CSA, FTTA, cUr, cUL, uR | ||
Min Temperature Setting 20°C | ||
Maximum Temperature Setting 55°C | ||
Depth 280mm | ||
Height 550mm | ||
Series TopTherm Blue e | ||
Standards/Approvals Approval overview CCC exception letter CSA UL+C-UL-FTTA UR+C-UR | ||
Weight 22kg | ||
Width 280mm | ||
Cooler Type Blue wall Mounted Cooling Units | ||
Frequency 60Hz | ||
Cooling Capacity 0.75kW | ||
Refrigerant Type Refrigerant: R134A | ||
- COO (Country of Origin):
- IT
The Rittal SK series is the energy efficient wall mounted cooling units with integral e-comfort controller with integral e-comfort controller and RiNano coating on the condenser as standard. The total cooling output is 0.85 kW with 2.7 A rated current and the material used is the stainless steel.
Nano coated condenser
Fully wired ready for connection
External circuit IP 34
Internal circuit IP 54
May be linked to the IoT interface via the Blue e IoT adaptor
