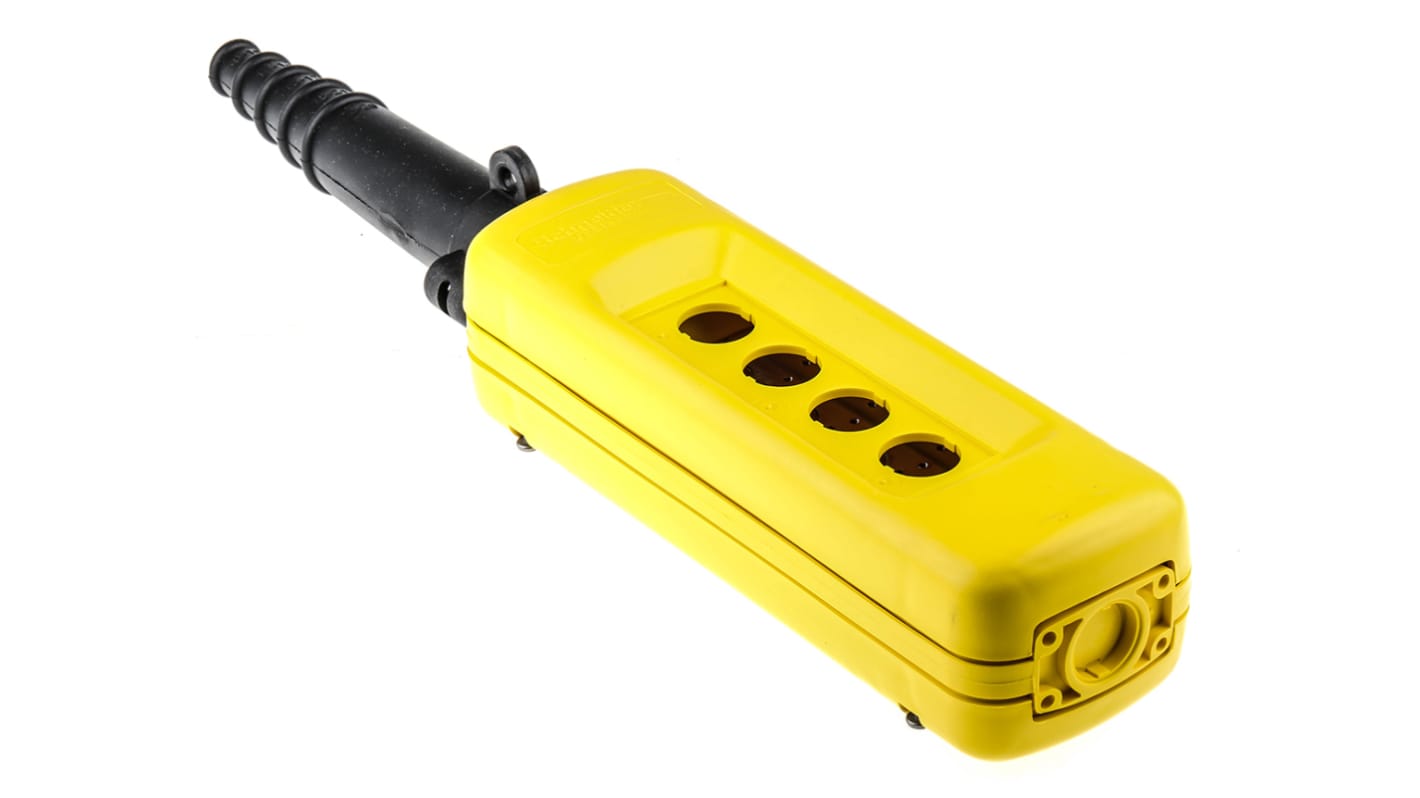

Schneider Electric Control Station Switch, Polypropylene, 4 Cutouts, IP65
- RS Stock No.:
- 815-1777
- Mfr. Part No.:
- XACA04H7
- Manufacturer:
- Schneider Electric
Subtotal (1 unit)*
MYR841.01
FREE delivery for orders over RM 500.00
In Stock
- Plus 7 unit(s) shipping from 17 November 2025
- Plus 3 unit(s) shipping from 28 November 2025
- Plus 3 unit(s) shipping from 05 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | MYR841.01 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 815-1777
- Mfr. Part No.:
- XACA04H7
- Manufacturer:
- Schneider Electric
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Series | Harmony XACA | |
| Number of Cutouts | 4 | |
| Enclosure Colour | Yellow | |
| Enclosure Material | Polypropylene | |
| IP Rating | IP65 | |
| Cutout Diameter | 22mm | |
| Length | 440mm | |
| Width | 80mm | |
| Depth | 70mm | |
| Better World Verification | Green Premium | |
| Better World Product | Yes | |
| Maximum Operating Temperature | +70°C | |
| Minimum Operating Temperature | -25°C | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Series Harmony XACA | ||
Number of Cutouts 4 | ||
Enclosure Colour Yellow | ||
Enclosure Material Polypropylene | ||
IP Rating IP65 | ||
Cutout Diameter 22mm | ||
Length 440mm | ||
Width 80mm | ||
Depth 70mm | ||
Better World Verification Green Premium | ||
Better World Product Yes | ||
Maximum Operating Temperature +70°C | ||
Minimum Operating Temperature -25°C | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CZ
Pendant Control Station XAC-A
Pendant control stations for auxiliary circuits. Designed for mechanical handling, these highly robust pendant control stations comply with the safety requirements of IEC standards
CE marking
UL/CSA certification
IP65
Double insulated polypropylene casing
Screw clamp connection
UL/CSA certification
IP65
Double insulated polypropylene casing
Screw clamp connection
Schneider Electric - Push Buttons
Pendant control stations are used on hoists, overhead cranes and as remote control stations. They conform to EN60947-1, EN60947-5-1, NFC63-140 and VDE0660 part 2 standards. All actuator buttons incorporate 1 N/O and 1 N/C positive action contact rated at 240Vac, 3A I th ;250Vdc, 0.27A I th ; 10A I th allowing electrical cross-interlocking if desired.
Environmental protection to IP65Fitted cable clamps and stepped cable entry bootsMechanical interlocking between each pair of opposing pushbutton actuatorsAdapters supplied for self-supporting pendant cable, with lug for chain support
