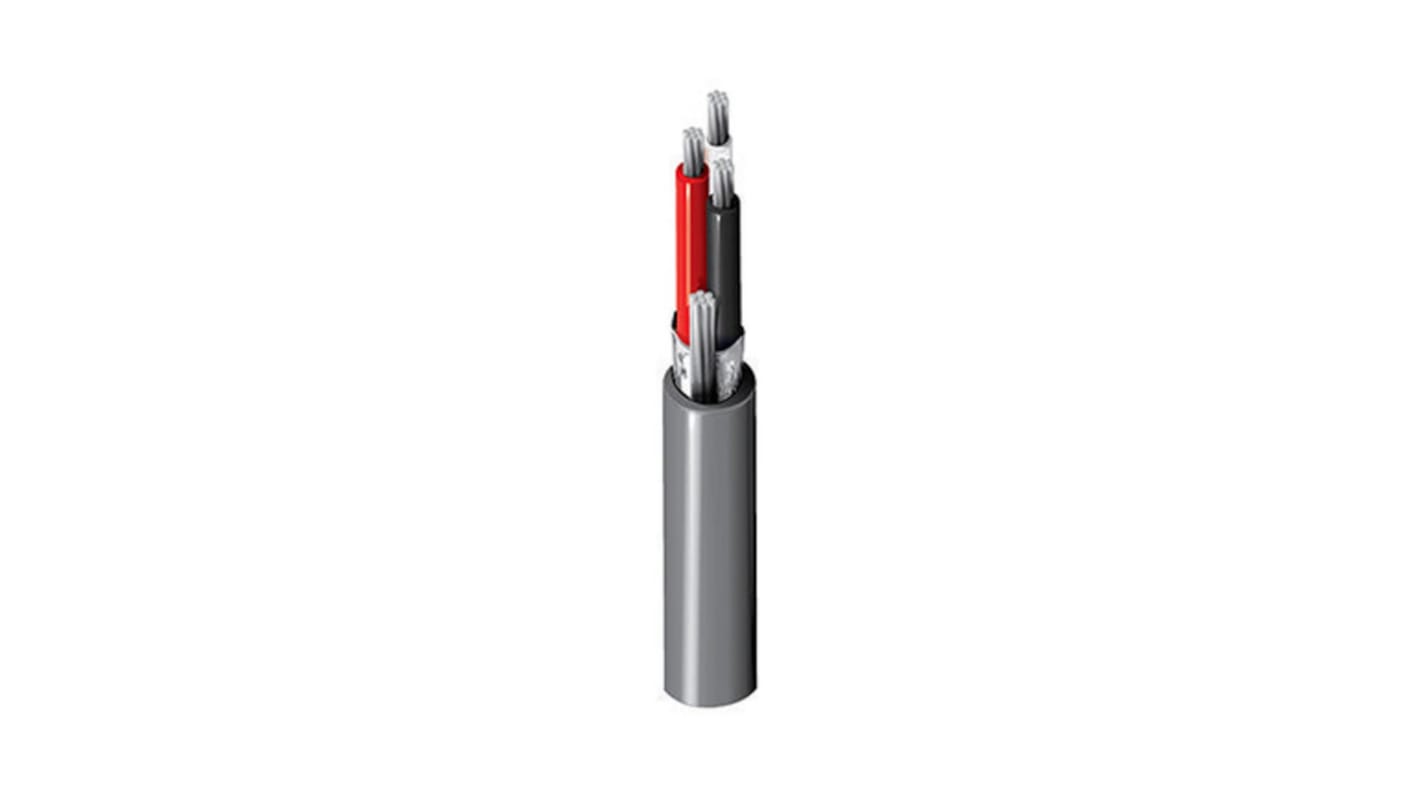

Belden 8618 Multicore Industrial Cable, 3 Cores, 1.33 mm², Screened, 152m, Chrome PVC Sheath, 16 AWG
- RS Stock No.:
- 331-8994
- Mfr. Part No.:
- 8618 060U500
- Manufacturer:
- Belden
Subtotal (1 reel of 152 metres)**
MYR5,639.25
Temporarily out of stock - back order for despatch 10/11/2025, delivery within 4 working days from despatch date*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Reel(s) | Per Reel | Per Metre** |
|---|---|---|
| 1 + | MYR5,639.25 | MYR37.10 |
**price indicative
- RS Stock No.:
- 331-8994
- Mfr. Part No.:
- 8618 060U500
- Manufacturer:
- Belden
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Belden | |
| Series | 8618 | |
| Number of Cores | 3 | |
| Cross Sectional Area | 1.33 mm² | |
| American Wire Gauge | 16 AWG | |
| Conductor Material | Tinned Copper | |
| Sheath Material | Polyvinyl Chloride PVC | |
| Sheath Colour | Chrome | |
| Screened/Unscreened | Screened | |
| Screen Type | Foil | |
| Length | 152m | |
| Outer Diameter | 8.13mm | |
| Minimum Bend Radius | 10 x Diameter | |
| Voltage Rating | 600 V | |
| Current Rating | 7 A | |
| CPR Certification | Eca | |
| Standards Met | Euroclass Eca | |
| Fire Behaviour | Flame Retardant | |
| Maximum Operating Temperature | +80°C | |
| Minimum Operating Temperature | -20°C | |
| Core Strands | 19/0.29 mm | |
| Insulation Material | PE | |
| Conductor Resistance | 15.75 Ω/km | |
| Cable Shape | Round | |
| Drain Wire | Yes | |
Select all | ||
|---|---|---|
Brand Belden | ||
Series 8618 | ||
Number of Cores 3 | ||
Cross Sectional Area 1.33 mm² | ||
American Wire Gauge 16 AWG | ||
Conductor Material Tinned Copper | ||
Sheath Material Polyvinyl Chloride PVC | ||
Sheath Colour Chrome | ||
Screened/Unscreened Screened | ||
Screen Type Foil | ||
Length 152m | ||
Outer Diameter 8.13mm | ||
Minimum Bend Radius 10 x Diameter | ||
Voltage Rating 600 V | ||
Current Rating 7 A | ||
CPR Certification Eca | ||
Standards Met Euroclass Eca | ||
Fire Behaviour Flame Retardant | ||
Maximum Operating Temperature +80°C | ||
Minimum Operating Temperature -20°C | ||
Core Strands 19/0.29 mm | ||
Insulation Material PE | ||
Conductor Resistance 15.75 Ω/km | ||
Cable Shape Round | ||
Drain Wire Yes | ||
