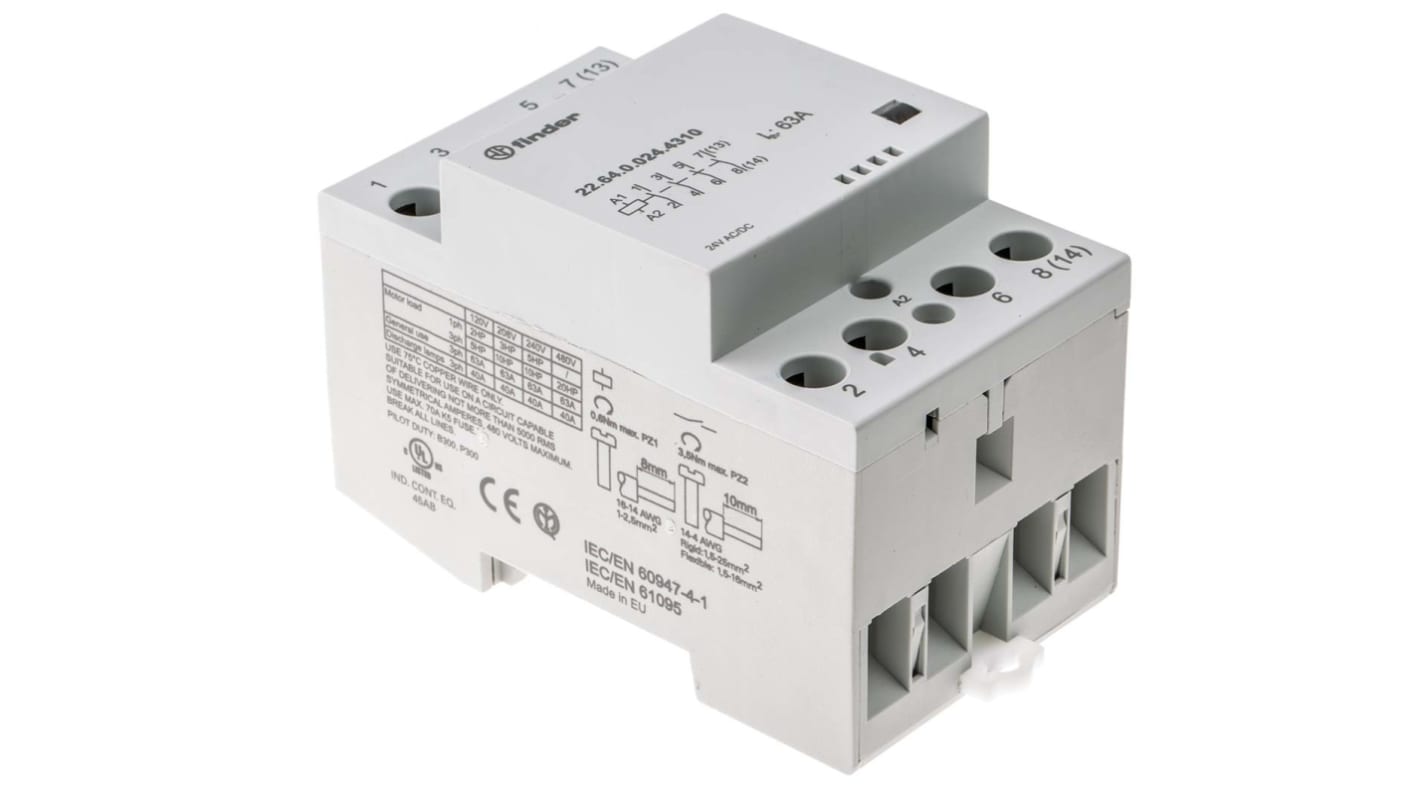

Finder 22 Series Series Contactor, 24 V ac, 24 V dc Coil, 4-Pole, 63 A
- RS Stock No.:
- 800-2887
- Mfr. Part No.:
- 22.64.0.024.4310
- Manufacturer:
- Finder
142 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR391.23
| Units | Per Unit |
| 1 + | MYR391.23 |
- RS Stock No.:
- 800-2887
- Mfr. Part No.:
- 22.64.0.024.4310
- Manufacturer:
- Finder
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- SI
Product Details
22.44 & 22.64 Series - Modular contactors
Finder 22 series 4-pole modular contactors, rail mounted, with 4 pole
40 - 63 A
Continuously duty for the coil and contacts
AC/DC silent coil with varistor protection
Protective separation (reinforced insulation) between coil and contacts
Compliant with EN 61095:2009 and with EN 60947-4-1:2009
35 mm rail mount
Screw terminal
Auxiliary modules available for 22.44 and 22.64 series (800-2916 and 800-2925)
Continuously duty for the coil and contacts
AC/DC silent coil with varistor protection
Protective separation (reinforced insulation) between coil and contacts
Compliant with EN 61095:2009 and with EN 60947-4-1:2009
35 mm rail mount
Screw terminal
Auxiliary modules available for 22.44 and 22.64 series (800-2916 and 800-2925)
Specifications
Attribute | Value |
|---|---|
| Coil Voltage | 24 V ac, 24 V dc |
| Number of Poles | 4 |
| Contact Current Rating | 63 A |
| Series | 22 Series |
| Terminal Type | Screw |
| Length | 53.5mm |
| Depth | 63.1mm |
| Maximum Operating Temperature | +55°C |
| Mounting Style | DIN Rail |
| Minimum Operating Temperature | -5°C |
