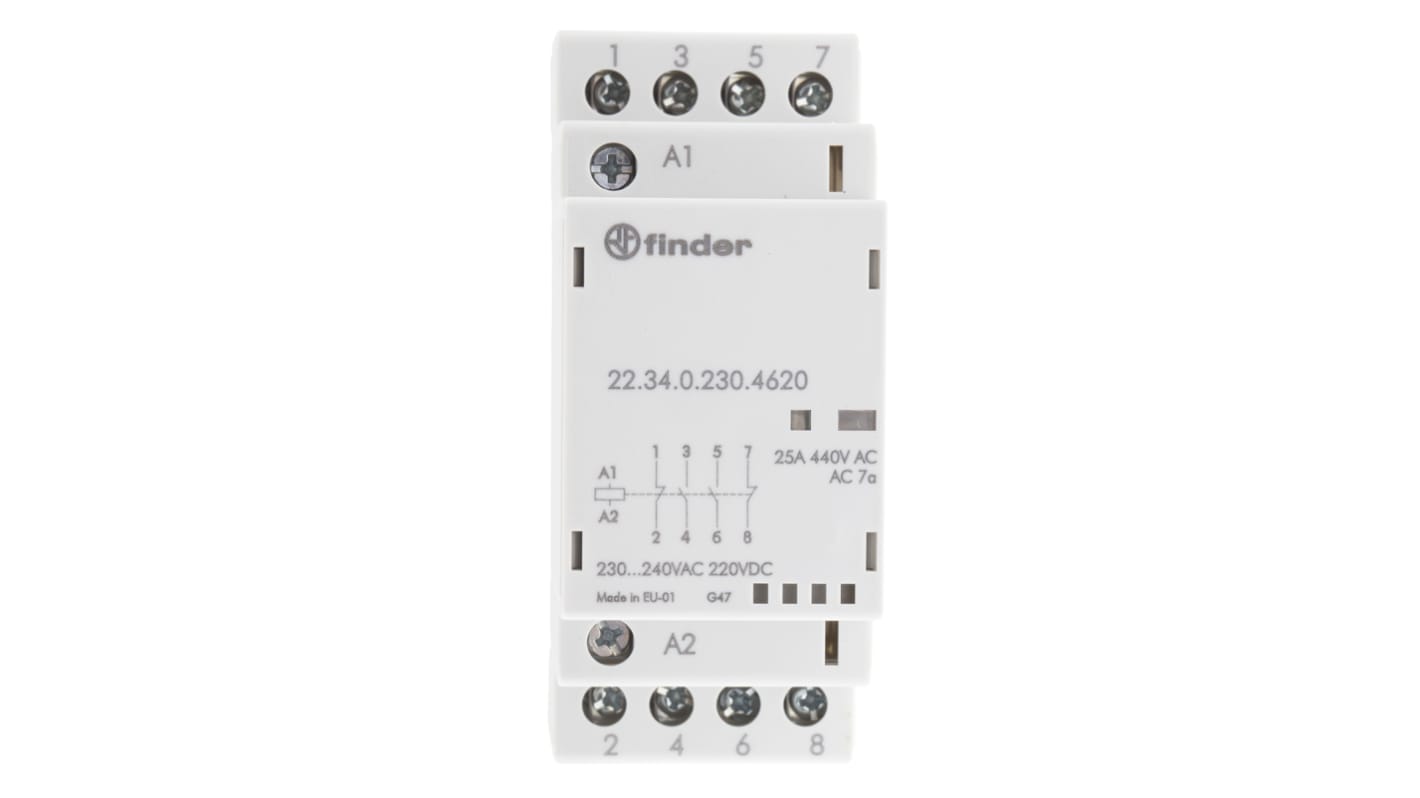

Finder 22 Series Series Contactor, 230 V ac Coil, 4-Pole, 25 A, 4 kW, 2NO + 2NC, 250 V ac, 440 V ac
- RS Stock No.:
- 776-1569
- Mfr. Part No.:
- 22.34.0.230.4620
- Manufacturer:
- Finder
6 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
92 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR242.28
| Units | Per Unit |
| 1 + | MYR242.28 |
- RS Stock No.:
- 776-1569
- Mfr. Part No.:
- 22.34.0.230.4620
- Manufacturer:
- Finder
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- IT
Product Details
22 Series - Modular Contactors
A range of 25A modular contactors from the 22 Series from Finder.
NO contact gap ≥3 mm, double break
Continuous duty for the coil and contacts
AC/DC silent coil (with varistor protection)
Protective separation (reinforced insulation) between coil and contacts
Mechanical and LED indicators as standard
Continuous duty for the coil and contacts
AC/DC silent coil (with varistor protection)
Protective separation (reinforced insulation) between coil and contacts
Mechanical and LED indicators as standard
Specifications
Attribute | Value |
|---|---|
| Coil Voltage | 230 V ac |
| Number of Poles | 4 |
| Contact Voltage Rating | 250 V ac, 440 V ac |
| Contact Current Rating | 25 A |
| Series | 22 Series |
| Power Rating | 4 kW |
| Normal State Configuration | 2NO/2NC |
| Terminal Type | Screw |
| Length | 35mm |
| Width | 35mm |
| Depth | 60.8mm |
| Maximum Operating Temperature | +50°C |
| Minimum Operating Temperature | -20°C |
