Schneider Electric TeSys K LP1K Contactor, 230 V dc Coil, 4-Pole, 20 A, 2NO + 2NC, 690 V ac

RS Stock No.:: 744-7989
Mfr. Part No.:: LP1K090085MD
Manufacturer:: Schneider Electric

Schneider Electric TeSys K LP1K Contactor, 230 V dc Coil, 4-Pole, 20 A, 2NO + 2NC, 690 V ac

Price Each

MYR260.86

Temporarily out of stock - back order for despatch 24/01/2025, delivery within 4 working days from despatch date*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over MYR700.00

Units	Per Unit
1 +	MYR260.86

RS Stock No.:: 744-7989
Mfr. Part No.:: LP1K090085MD
Manufacturer:: Schneider Electric

Datasheet

Schneider Electric LP1K TeSys K Miniature Contactors

TeSys K Silent Miniature Contactors from Schneider Electric combine long mechanical and electrical life to offer a high reliable contactor. The LP1K range are DC operated contactors recommended for use in areas sensitive to noise and high interference mains supplies. The TeSys K contactors offer quick simple setup while maintaining compliance with international standards. A special armature structure design allows all devices in the range to have the same physical size and panel footprint for convenience.

Features and Benefits

• Built-in auxiliary contacts for added switching capability
• Screw connections: IP20 finger-safe terminals with both North American and International terminal markings
• Can be panel mounted with screws or DIN Rail mounted
• Coil with rectifier incorporated
• Easily installed accessories
• Instantaneous auxiliary contact
• Flexible control circuit to suit a wide range of applications
• High-fault short circuit current ratings provide the flexibility to select any component

What does the utilisation category AC1 and AC3 mean for the TeSys contactors?

Contactor utilisation categories define the current making and breaking values, based on the type of load to be controlled and the operating cycle conditions.

AC-1: This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution.

AC-3: This applies to squirrel cage motors where breaking occurs while the motor is running.

Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units.

Are the TeSys K contactors suitable for applications in AC4 usage?

The LP1K series is suitable up to a maximum of 440 V ac in category AC4.

Is the TeSys K range a double break pole type contactor?

Yes the TeSys K range uses linear translation movement that provides double breaking of the poles.

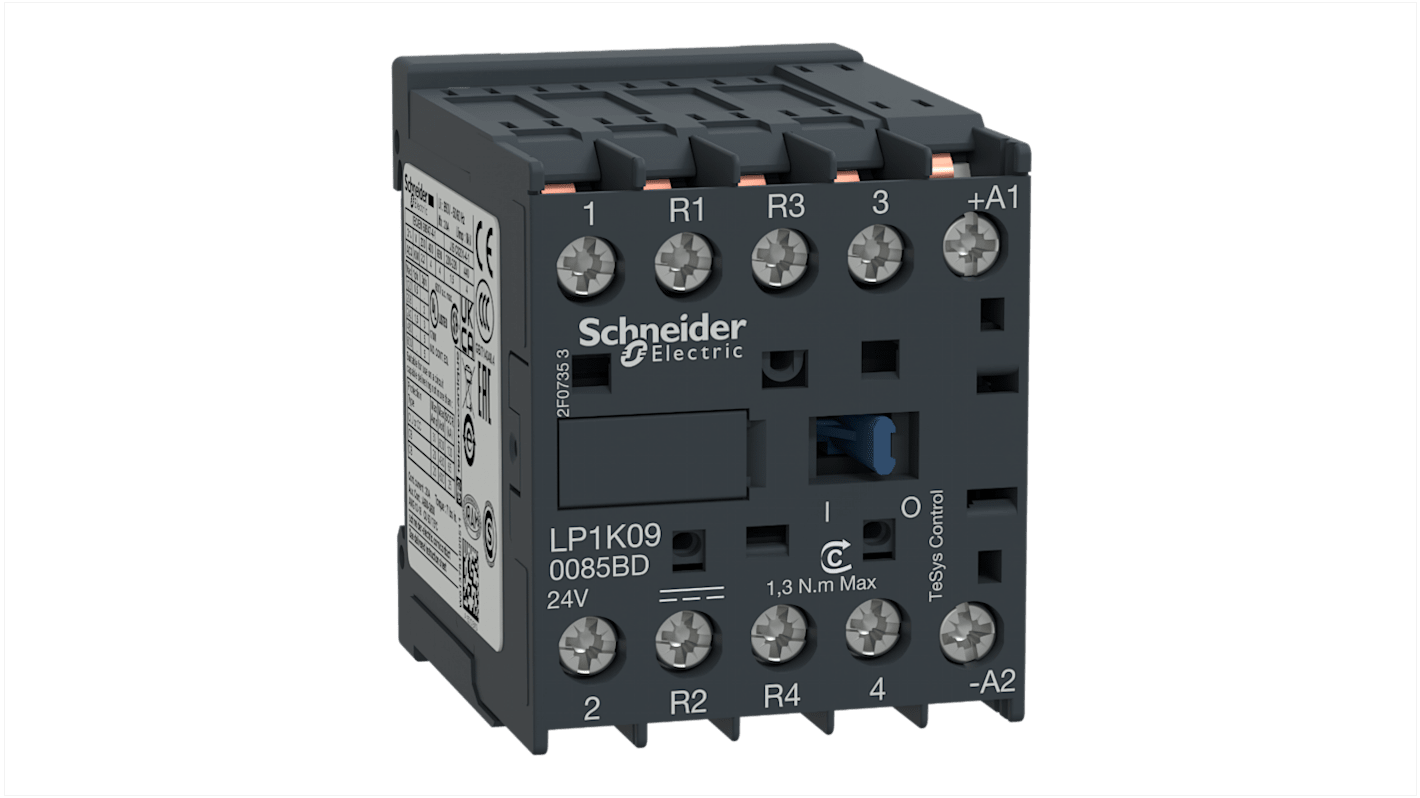

Schneider Electric LP1K090085MD Miniature Contactor

The LP1K090085MD is a miniature 4 pole contactor featuring a 220 V dc operating coil and an AC-3 full load current of 20 A.

Attribute	Value
Coil Voltage	230 V dc
Number of Poles	4
Contact Voltage Rating	690 V ac
Contact Current Rating	20 A
Range	TeSys K
Series	LP1K
Normal State Configuration	2NO/2NC
Terminal Type	Solder Pin
Length	58mm
Width	45mm
Depth	57mm
Maximum Operating Temperature	+50°C
Minimum Operating Temperature	-25°C
