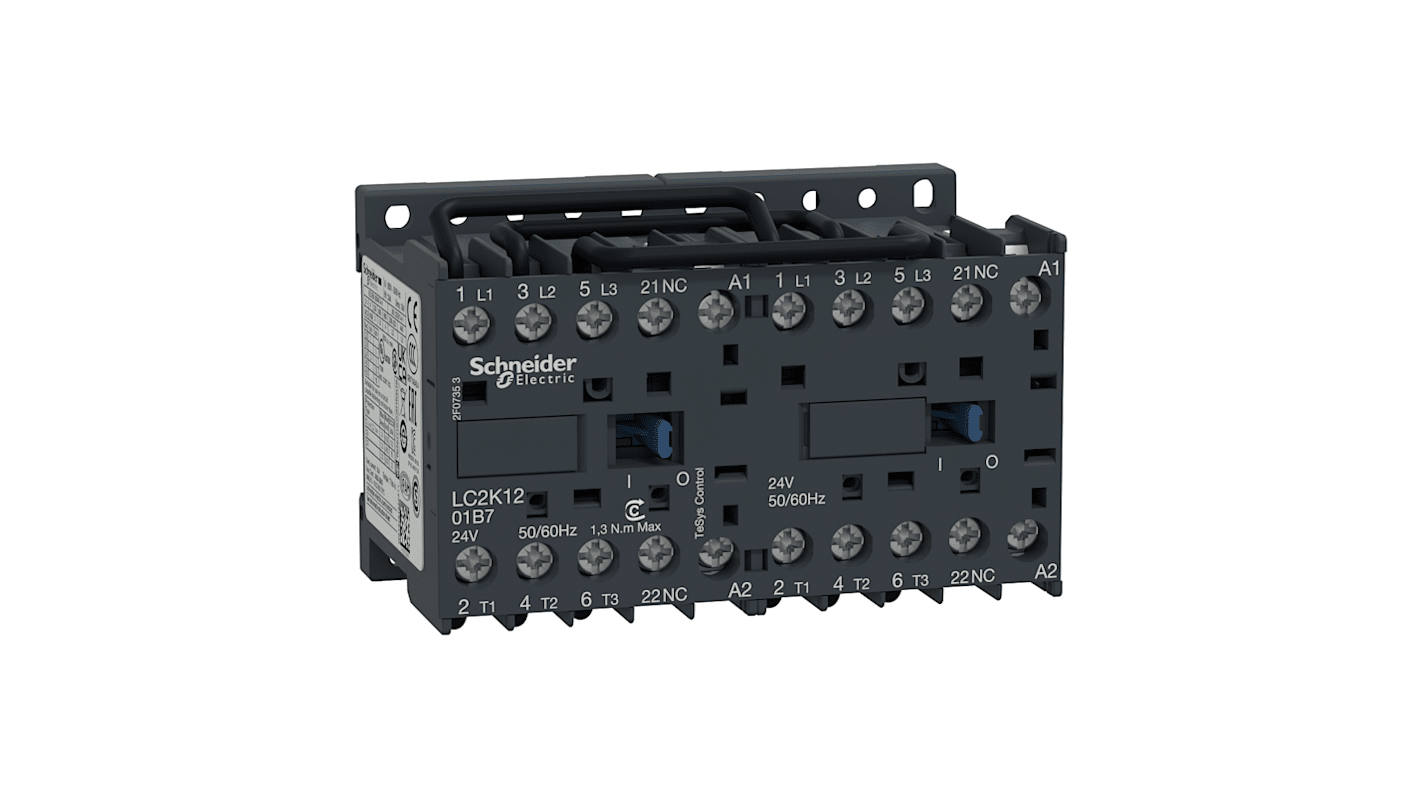

Schneider Electric TeSys K LC2K Reversing Contactor, 24 V ac Coil, 3-Pole, 12 A, 5.5 kW, 3NO, 690 V ac

RS Stock No.:: 744-7787
Mfr. Part No.:: LC2K1201B7
Manufacturer:: Schneider Electric

Schneider Electric TeSys K LC2K Reversing Contactor, 24 V ac Coil, 3-Pole, 12 A, 5.5 kW, 3NO, 690 V ac

Price Each**

MYR609.53

6 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over MYR700.00

Units	Per Unit
1 +	MYR609.53

**price indicative

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS Stock No.:: 744-7787
Mfr. Part No.:: LC2K1201B7
Manufacturer:: Schneider Electric

3 Pole Reversing Contactors with Screw Clamp Termination

Contactors have a switching voltage of 440Vac and a coil consumption (ac coils 50/60Hz rated) of 4.5VA (Hold in) and 30VA (inrush).

These are complete units, that is two 'K' series contactors coupled together
Incorporates mechanical interlock to ensure only one set of 3 poles are closed at any one time

TeSys D is available as a reversing and non-reversing contactor.

TeSys B is a bar contactor up to 900 kW.

TeSys K contactors offered as reversing and non-reversing contactors.

TeSys GC and GY modular contactors and DIN rail mount contactors.

Series Features.

AC, DC, Low consumption voltage DC and silent control circuits available.

6 A, 9 A and 12 A current ratings available.

2.2 kw, 4.5 kw, 5.5 kW power applications in AC-3 and AC-4.

Screw clamp, Faston connectors. Spring terminals, Pins for PCB (printed circuit boards) available.

Applications.

Industry, Infrastructure, Building and many more.

Control systems.

Areas that are noise sensitive, disturbed mains supply, silent contactor.

Compatible with programmable controller outputs, low consumption contactor.

Switching / switch contactor or coil relays.

Powering control and signalling equipment.

LC2K1201B7 TeSys K (LC2K) 3 Pole Reversing Contactor.

Motor control, Resistive load applications.

AC-4, AC-3, AC-1 Categories.

Comes pre-assembled with a reversing power Busbar.

Ue Rated Voltage Power circuit: 690 V AC 50/60 Hz, Signalling circuit: <= 690 V AC 50/60 Hz.

Ie Rated current 20 A (at <= 440 V AC AC-1 for power circuit, 16 A (at <= 440 V AC AC-3 for power circuit, 12 A at <= 440 V AC AC-3 for power circuit.

Motor Power kW 4 KW at 480 V AC 50/60 Hz, 4 KW at 500...600 V AC 50/60 Hz, 4 KW at 660...690 V AC 50/60 Hz, 3 KW at 220...230 V AC 50/60 Hz, 5.5 KW at 380...415 V AC 50/60 Hz, 5.5 KW at 440 V AC 50/60 Hz.

Circuit AC at 50/60 Hz.

Overvoltage category III.

Breaking 110 A at 440 V conforming to IEC 60947, 80 A at 500 V conforming to IEC 60947, 70 A at 660...690 V conforming to IEC 60947.

Mechanical interlocking.

Screw clamp terminals.

Mounting – DIN Rail, Plate.

IP20 to VDE 0106.

Approvals

UL, CSA.

Standards

VDE 0660, BS 5424, IEC 60947, NF C 63-110.

Attribute	Value
Coil Voltage	24 V ac
Number of Poles	3
Contact Voltage Rating	690 V ac
Contact Current Rating	12 A
Power Rating	5.5 kW
Range	TeSys K
Series	LC2K
Function	Reversing
Normal State Configuration	3NO
Number Of Auxiliary Contacts	1
Auxiliary Contact Configuration	1NC
Terminal Type	Screw
Length	58mm
Width	90mm
Depth	57mm
Better World Product	Yes
Better World Verification	Green Premium
