Select all	Attribute	Value
	Brand	Schneider Electric
	Coil Voltage	230 V ac
	Number of Poles	3
	Contact Voltage Rating	1 kV ac, 690 V dc
	Contact Current Rating	115 A
	Range	TeSys D
	Series	LC1D
	Power Rating	55 kW
	Normal State Configuration	3NO
	Auxiliary Contact Configuration	1NO + 1NC
	Number Of Auxiliary Contacts	2
	Terminal Type	Screw
	Width	120mm
	Length	158mm
	Depth	136mm
	Better World Verification	Green Premium
	Better World Product	Yes
	Load Current	200A
	Minimum Operating Temperature	-40°C
	Input Current	115A
	Pole and Throw Configuration	3P
	Load Voltage	400V ac
	Mounting Style	DIN Rail Mount
	Control Voltage	240 V ac
	Maximum Operating Temperature	+60°C

	Select all
	Brand Schneider Electric
	Coil Voltage 230 V ac
	Number of Poles 3
	Contact Voltage Rating 1 kV ac, 690 V dc
	Contact Current Rating 115 A
	Range TeSys D
	Series LC1D
	Power Rating 55 kW
	Normal State Configuration 3NO
	Auxiliary Contact Configuration 1NO + 1NC
	Number Of Auxiliary Contacts 2
	Terminal Type Screw
	Width 120mm
	Length 158mm
	Depth 136mm
	Better World Verification Green Premium
	Better World Product Yes
	Load Current 200A
	Minimum Operating Temperature -40°C
	Input Current 115A
	Pole and Throw Configuration 3P
	Load Voltage 400V ac
	Mounting Style DIN Rail Mount
	Control Voltage 240 V ac
	Maximum Operating Temperature +60°C

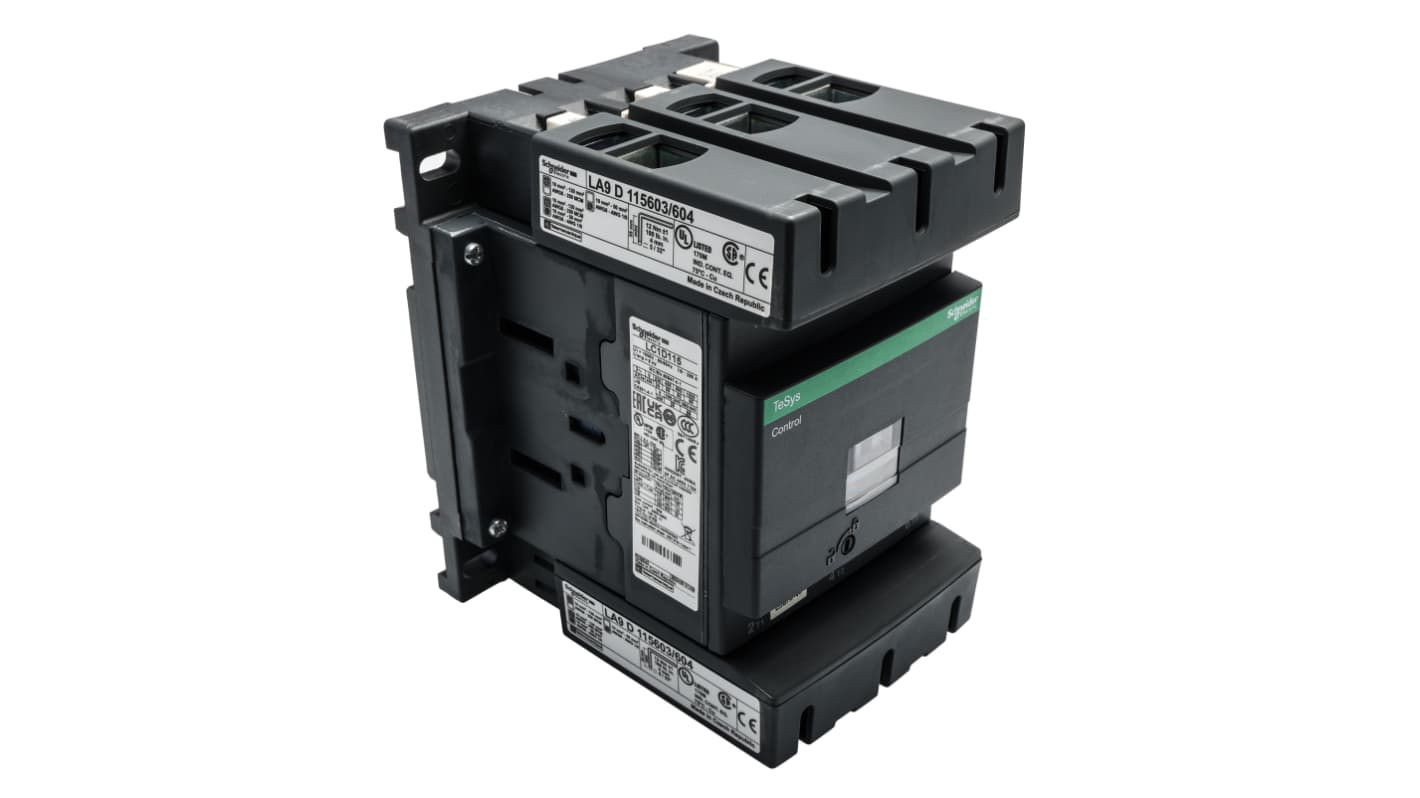

Schneider Electric TeSys D LC1D Contactor, 230 V ac Coil, 3-Pole, 115 A, 55 kW, 3NO, 1 kV ac, 690 V dc

FREE delivery for orders over MYR500.00

Better World

Schneider Electric LC1D115U7 Contactor

Features & Benefits

Applications

How does the thermal performance of this component influence its operation in varying temperatures?

What type of auxiliary contacts are compatible with this device?

How does the design facilitate easy installation and maintenance?
