- RS Stock No.:
- 685-1343
- Mfr. Part No.:
- 11BG0031A110
- Manufacturer:
- Lovato
21 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR192.37
Units | Per Unit |
1 + | MYR192.37 |
- RS Stock No.:
- 685-1343
- Mfr. Part No.:
- 11BG0031A110
- Manufacturer:
- Lovato
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- IT
Product Details

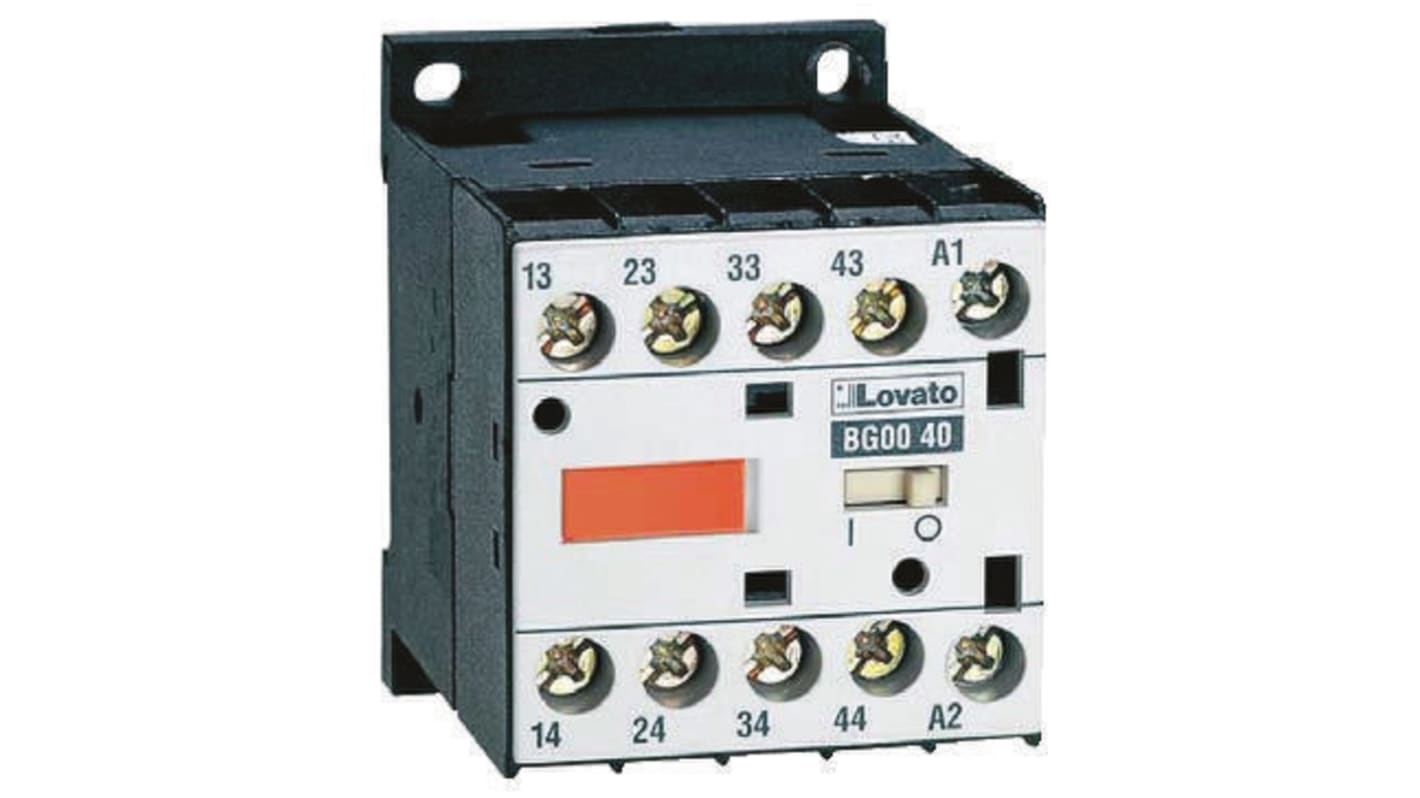

4-Pole Control Relays
Rated insulation voltage UI: 690V
Rated free air thermal current 10A
All contacts are highly conductive
Screw fixing or 35mm DIN rail attachment
IP20 finger safe terminal protection
Rated free air thermal current 10A
All contacts are highly conductive
Screw fixing or 35mm DIN rail attachment
IP20 finger safe terminal protection
Lovato Orange Contactors, Control Relays and Accessories
Specifications
Attribute | Value |
---|---|
Coil Voltage | 110 V ac |
Number of Poles | 4 |
Contact Voltage Rating | 690 V ac |
Contact Current Rating | 10 A |
Range | Orange |
Series | BG |
Normal State Configuration | 3NO/1NC |
Terminal Type | Screw |
Width | 44mm |
Length | 58mm |
Depth | 57mm |
Maximum Operating Temperature | +60°C |
Minimum Operating Temperature | -40°C |
