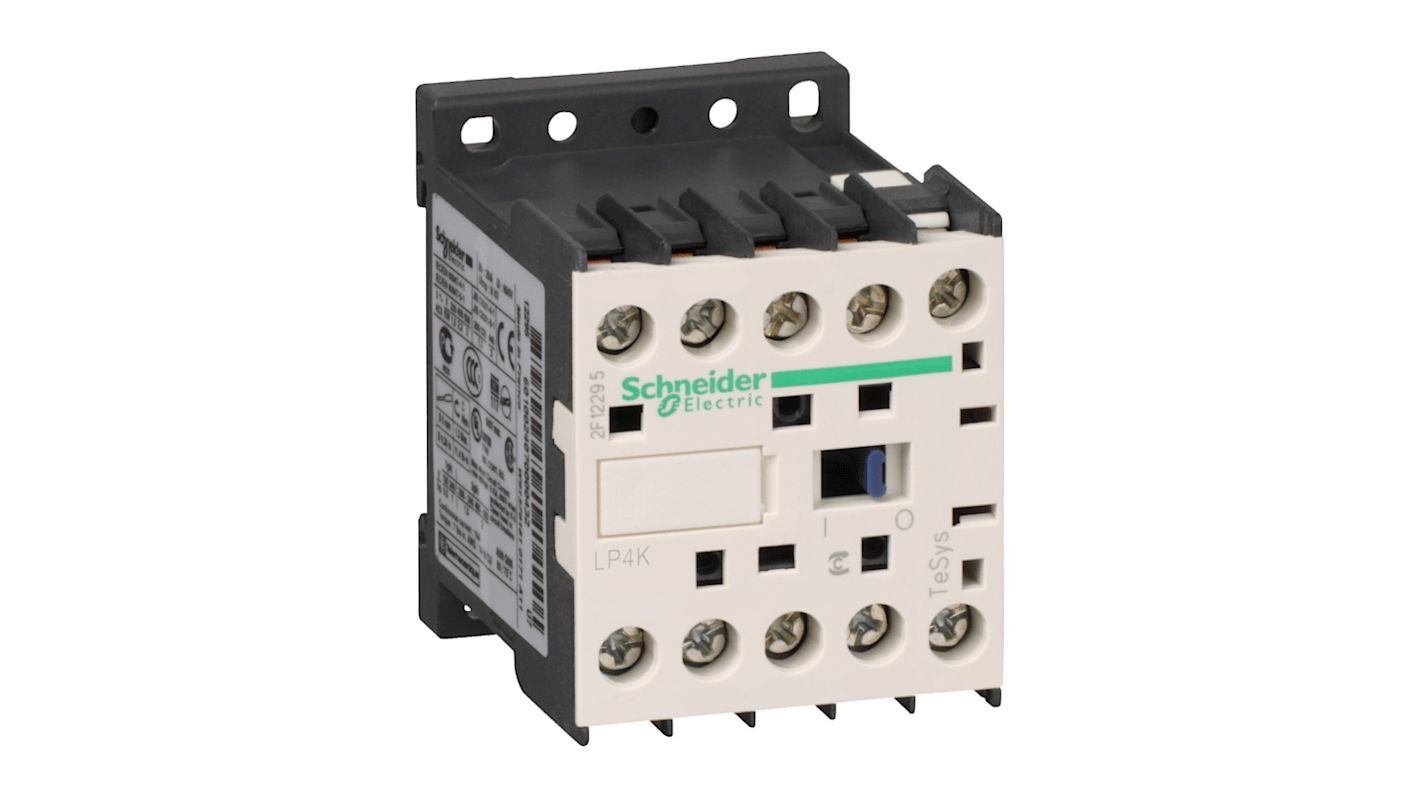

Schneider Electric TeSys K LP4K Contactor, 24 V dc Coil, 4-Pole, 20 A, 4 kW, 4NO, 690 V ac

TeSys K Silent Miniature Contactors from Schneider Electric combine long mechanical and electrical life to offer a high reliable contactor. The LP4K range are low consumption DC operated contactors recommended for use in areas sensitive to noise and high interference mains supplies. The TeSys K contactors offer quick simple setup while maintaining compliance with international standards. A special armature structure design allows all devices in the range to have the same physical size and panel footprint for convenience.

• Built-in auxiliary contacts for added switching capability

Contactor utilisation categories define the current making and breaking values, based on the type of load to be controlled and the operating cycle conditions.

The LP4K series is suitable up to a maximum of 440 V ac in category AC4.

Yes the TeSys K range uses linear translation movement that provides double breaking of the poles.

The LP4K09004BW3 is a miniature 4 pole low consumption contactor featuring a 24 V dc operating coil and an AC-3 full load current of 20 A.

The LPK4 lower power contactors can only be used with the 2 pole auxiliaries they will not work with the 4 pole auxiliaries.

Schneider Electric K Range Special Purpose
