Schneider Electric TeSys K LC1K Contactor, 230 V ac Coil, 3-Pole, 6 A, 2.2 kW, 3NO, 690 V ac

RS Stock No.:: 609-0122
Mfr. Part No.:: LC1K0610P7
Manufacturer:: Schneider Electric

Schneider Electric TeSys K LC1K Contactor, 230 V ac Coil, 3-Pole, 6 A, 2.2 kW, 3NO, 690 V ac

Price Each**

MYR163.24

19 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over MYR700.00

Units	Per Unit
1 +	MYR163.24

**price indicative

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS Stock No.:: 609-0122
Mfr. Part No.:: LC1K0610P7
Manufacturer:: Schneider Electric

Schneider Electric LC1K TeSys K Miniature Contactors

TeSys K Miniature Contactors from Schneider Electric combine long mechanical and electrical life to offer a high reliable contactor. The range has been designed for integration in control systems and for inductive motor applications. The TeSys K contactors offer quick simple setup while maintaining compliance with international standards. A special armature structure design allows all devices in the range, either AC or DC, to have the same physical size and panel footprint for convenience.

Features and Benefits

• Built-in auxiliary contacts for added switching capability
• Screw connections: IP20 finger-safe terminals with both North American and International terminal markings
• Can be panel mounted with screws or DIN Rail mounted
• Easily installed accessories
• Instantaneous auxiliary contact
• Flexible control circuit to suit a wide range of applications
• High-fault short circuit current ratings provide the flexibility to select any component

What does the utilisation category AC1 and AC3 mean for the TeSys contactors?

Contactor utilisation categories define the current making and breaking values, based on the type of load to be controlled and the operating cycle conditions.
AC-1: This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution.
AC-3: This applies to squirrel cage motors where breaking occurs while the motor is running.
Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units.

Are the TeSys K contactors suitable for applications in AC4 usage?

The LC1K series is suitable up to a maximum of 440 V ac in category AC4.

Is the TeSys K range a double break pole type contactor?

Yes the TeSys K range uses linear translation movement that provides double breaking of the poles.

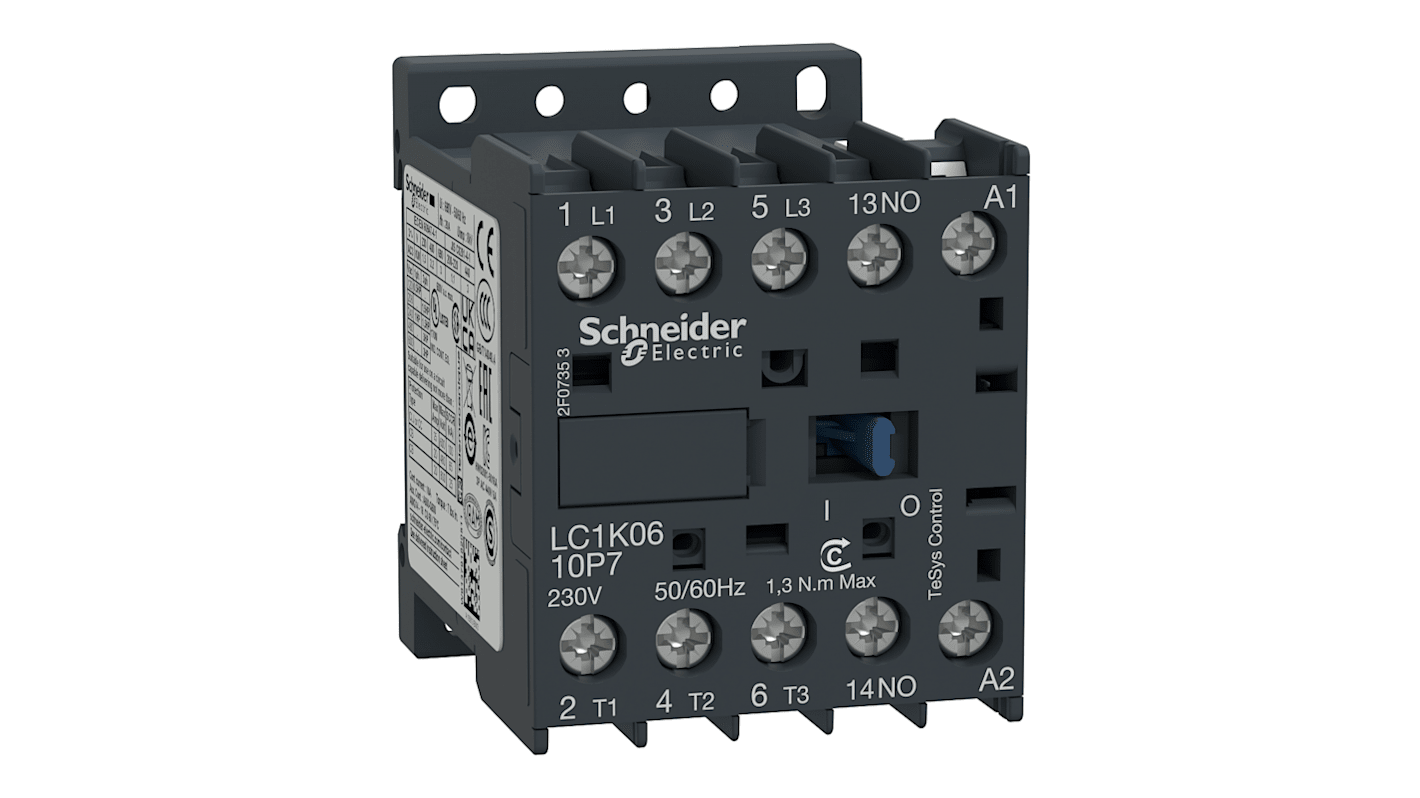

Schneider Electric LC1K0610P7 Miniature Contactor

The LC1K0610P7 is a miniature 3 pole contactor featuring a 230 V ac operating coil, an AC-3 full load current of 6 A and a normally open auxiliary contact.

Features & Benefits

• Compatible with control circuits at 50/60 Hz for flexibility
• Features 3 poles with 3 normally open contacts for efficient control
• Utilises screw clamp terminals for secure and easy connections
• Auxiliary contact included enhances operational versatility
• Rated at 6A, ideal for high voltage applications
• Operates reliably from -25°C to +50°C for wider usage

Applications

• Used in motor control systems for industrial applications
• Ideal for electrical automation processes
• Configured for high voltage switching tasks
• Utilised in various machinery for precise functionality

Can it handle high voltage applications?

Yes, it is rated for up to 690V AC.

Is it suitable for outdoor environments?

No, it operates best in controlled indoor settings.

Will it work seamlessly with electrical automation devices?

Yes, it integrates effectively with automation systems.

Can it withstand extreme temperatures?

It operates reliably between -25°C and +50°C.

Approvals

UL, CSA

Standards

BS 5424 IEC 60947 NF C 63-110 VDE 0660

Attribute	Value
Coil Voltage	230 V ac
Number of Poles	3
Contact Voltage Rating	690 V ac
Contact Current Rating	6 A
Power Rating	2.2 kW
Series	LC1K
Range	TeSys K
Normal State Configuration	3NO
Number Of Auxiliary Contacts	1
Auxiliary Contact Configuration	1NO
Terminal Type	Screw
Width	45mm
Length	58mm
Depth	57mm
Better World Verification	Green Premium
Better World Product	Yes
Pole and Throw Configuration	3P
Control Voltage	230 V ac
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+50°C
