Schneider Electric LC1D Series Contactor, 24 V dc Coil, 4-Pole, 40 A, 4NO, 690 V ac
- RS Stock No.:
- 608-9920
- Mfr. Part No.:
- LC1DT40BD
- Manufacturer:
- Schneider Electric
8 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
1 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
Was MYR793.25
You pay
MYR753.59
| Units | Per Unit |
| 1 + | MYR753.59 |
- RS Stock No.:
- 608-9920
- Mfr. Part No.:
- LC1DT40BD
- Manufacturer:
- Schneider Electric
Legislation and Compliance
- COO (Country of Origin):
- ID
Product Details

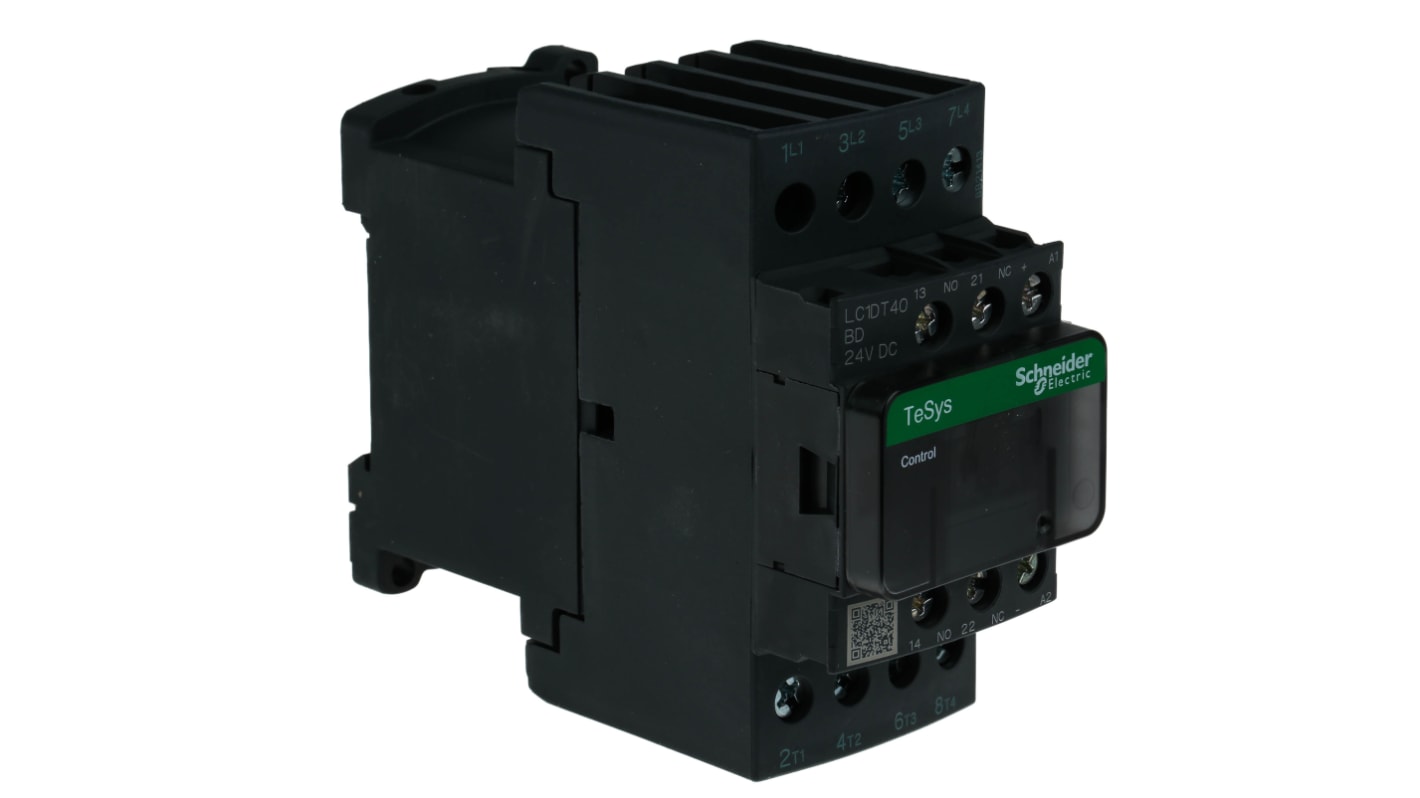

Schneider Electric LC1DT40BD Contactor
The Schneider Electric LC1DT40BD model is a 4 pole contactor featuring a 24 V dc operating coil, with an AC-3 full load current rating of 40 A
Features & Benefits
• Two auxiliary contacts for increased power capacity
• Built-in bidirectional peak-limiting diode suppressor to protect the coil from inrush current
• Optional DIN rail or panel mounting to best suit your application
• Fast opening time of 16 to 24ms, so has an almost instant switching capacity
• Built-in bidirectional peak-limiting diode suppressor to protect the coil from inrush current
• Optional DIN rail or panel mounting to best suit your application
• Fast opening time of 16 to 24ms, so has an almost instant switching capacity
Applications
• Shipyards and quarries
• Oil and gas industry
• Pharmaceutical manufacturing
• Oil and gas industry
• Pharmaceutical manufacturing
Does this contactor have a protective cover?
Yes, this contactor comes with a protective cover to help stop airborne contaminates from settling on the unit. It also protects the workings from human touch to minimise the risk of electric shocks.
Standards
CSA C22.2 No 14, EN 60947-4-1, EN 60947-5-1, IEC 60947-4-1, IEC 60947-5-1, UL 508, IEC 60335-1.
Certificate No.
LROS (Lloyds register of shipping), CSA, UL, GOST, DNV, CCC, GL, BV, RINA, UKCA.
Specifications
Attribute | Value |
|---|---|
| Coil Voltage | 24 V dc |
| Number of Poles | 4 |
| Contact Voltage Rating | 690 V ac |
| Contact Current Rating | 40 A |
| Series | LC1D |
| Range | TeSys D |
| Normal State Configuration | 4NO |
| Number Of Auxiliary Contacts | 2 |
| Terminal Type | Screw |
| Length | 91mm |
| Width | 45mm |
| Depth | 107mm |
| Better World Product | Yes |
| Better World Verification | Green Premium |
| Maximum Operating Temperature | +60°C |
| Minimum Operating Temperature | -40°C |
