Select all	Attribute	Value
	Brand	ABB
	Coil Voltage	110, 125V
	Product Type	Contactor
	Number of Poles	4
	Contact Voltage	690V
	Contact Current	20A
	Series	GJL121
	Power Rating	2.2kW
	Function	Mini Contactor
	Mount Type	DIN Rail, Wall
	Normal State Configuration	2 NO/2 NC
	Number of Auxiliary Contacts	0
	Auxiliary Contact Configuration	0 NO/0 NC
	Terminal Type	Screw
	Minimum Operating Temperature	-20°C
	Contactor Application	Control Unit
	Operational Current Ie	20A
	Control Circuit Voltage Uc	110, 125V
	Maximum Operating Temperature	55°C
	Depth	46.7mm
	Width	52.5mm
	Standards/Approvals	IEC/EN 60947-1, IEC/EN 60947-4-1, IEC/EN 60947-5-1, UL 60947-1, UL 60947-4-1
	Length	46.7mm
	Pole and Throw Configuration	4P

	Select all
	Brand ABB
	Coil Voltage 110, 125V
	Product Type Contactor
	Number of Poles 4
	Contact Voltage 690V
	Contact Current 20A
	Series GJL121
	Power Rating 2.2kW
	Function Mini Contactor
	Mount Type DIN Rail, Wall
	Normal State Configuration 2 NO/2 NC
	Number of Auxiliary Contacts 0
	Auxiliary Contact Configuration 0 NO/0 NC
	Terminal Type Screw
	Minimum Operating Temperature -20°C
	Contactor Application Control Unit
	Operational Current Ie 20A
	Control Circuit Voltage Uc 110, 125V
	Maximum Operating Temperature 55°C
	Depth 46.7mm
	Width 52.5mm
	Standards/Approvals IEC/EN 60947-1, IEC/EN 60947-4-1, IEC/EN 60947-5-1, UL 60947-1, UL 60947-4-1
	Length 46.7mm
	Pole and Throw Configuration 4P

Datasheet - GJL1213501R0004

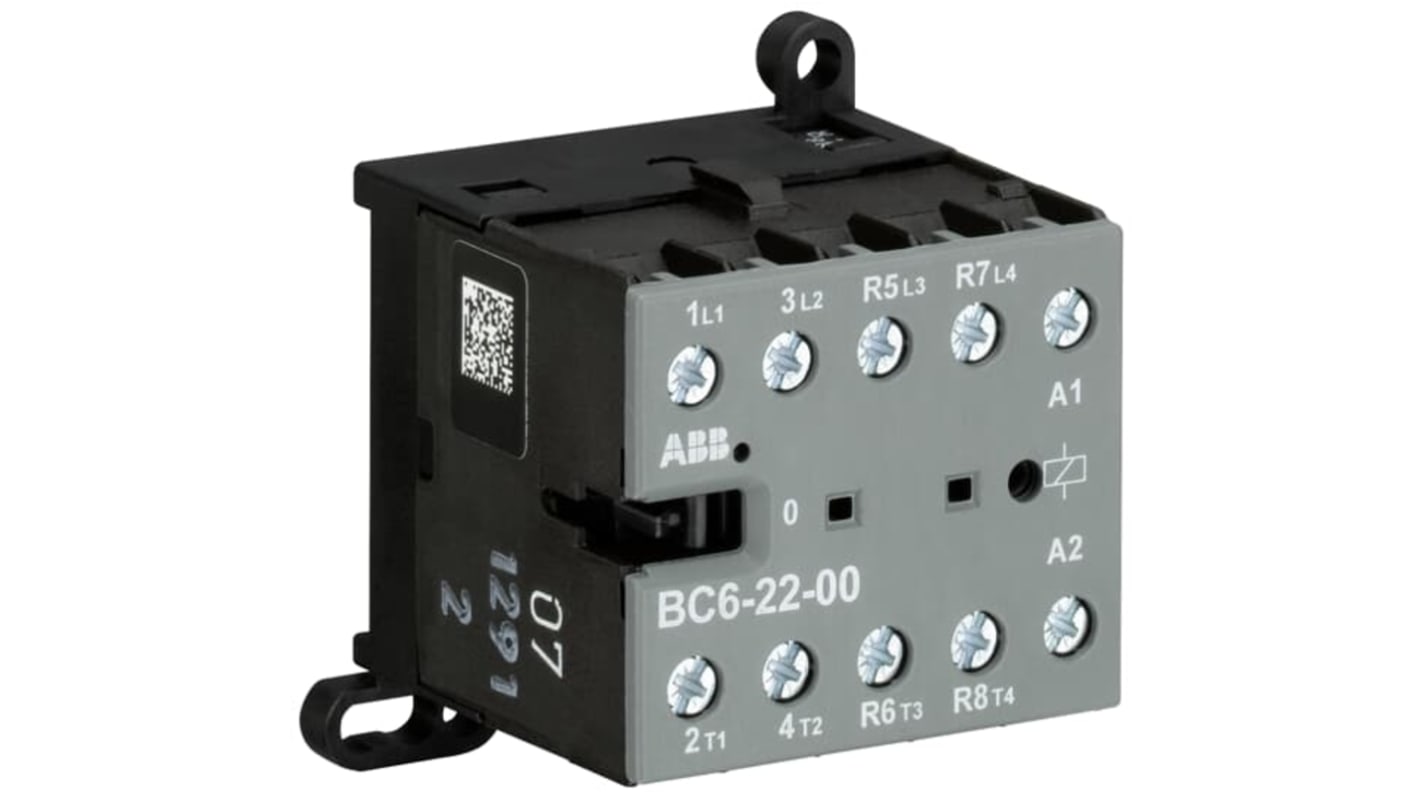

ABB GJL121 Series Contactor, 20A Contact Current, 110 to 125V Control Circuit Voltage - GJL1213501R0004

This contactor is a Compact switching device designed for control circuits in commercial, industrial and residential installations. It operates with a control circuit voltage in the 110–125V range and switches alternating loads up to 20 A at voltages as high as 690 V, providing a Compact solution for motor and load control where space is limited.

Features and Benefits:

• Four poles allowing switching of multi‑phase loads and improved isolation
• Screw terminals for secure, high‑integrity electrical connections
• Rated operational current 20 A enabling moderate power switching
• Power handling of 2.2 kW suitable for small motor drives and equipment
• Conforms to IEC and UL contactor standards for consistent performance
• DIN rail or wall mounting gives flexible installation options

Applications

• Suitable for control panels in light industrial automation systems
• Ideal for switching small three‑phase motors in workshops
• Used with HVAC equipment in commercial buildings
• Can be used for residential distribution and load control setups

What mounting methods are available for installation?

It supports both DIN‑rail and direct wall mounting to suit panel and enclosure arrangements.

How many poles does it provide and why does that matter?

It is a four‑pole device, which permits simultaneous switching of all conductors in multi‑phase circuits for coordinated control.

Which Terminal style is used and what is the benefit?

Screw‑type terminals are provided to ensure a robust mechanical and electrical connection for conductors.

What operating temperature range should be observed?

The device is designed to function between −20 °C and 55 °C, accommodating typical indoor industrial environments.

ABB GJL121 Contactor, 110V, 125 V Coil, 4-Pole, 20 A, 2.2 kW 110V, 125 V, 2 NO/2 NC, 690V
