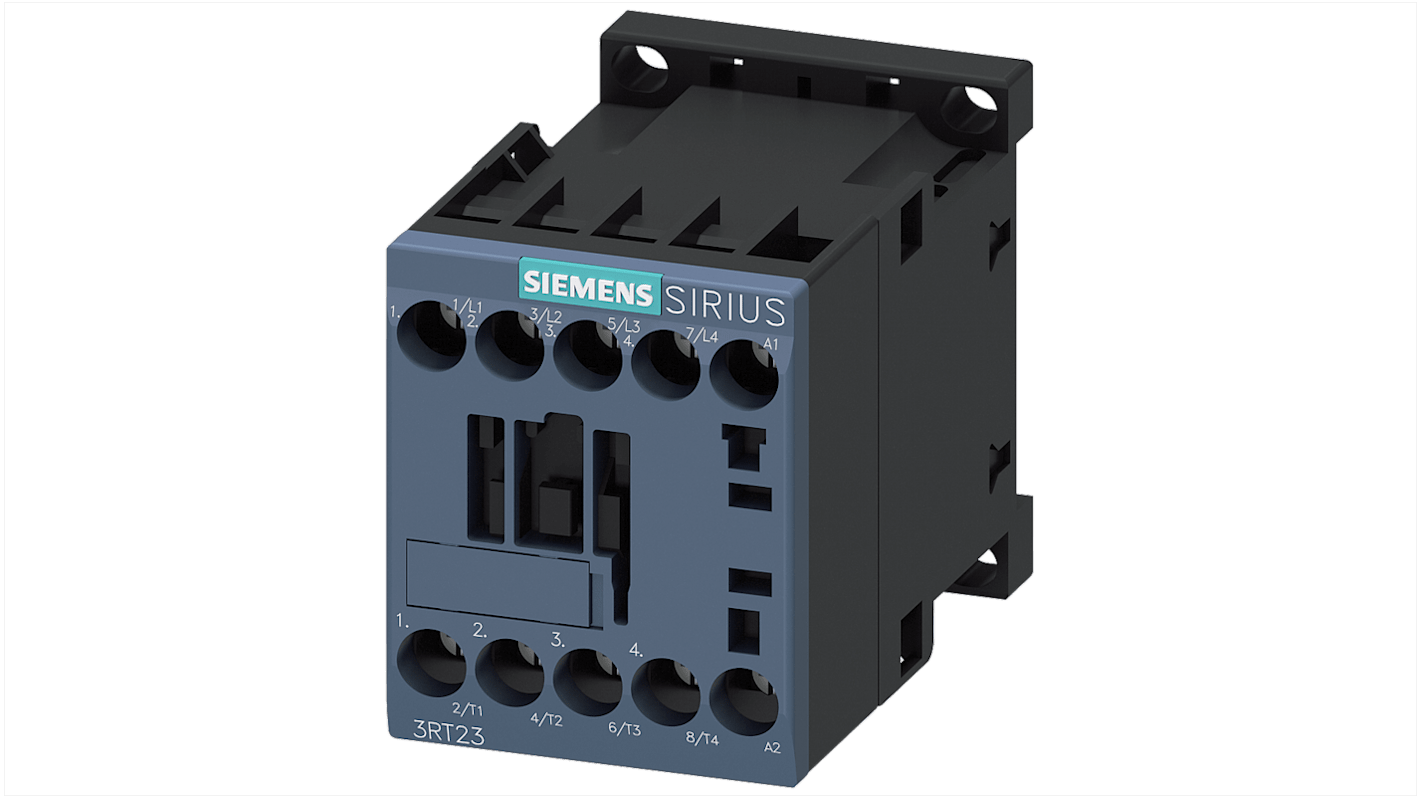

Siemens SIRIUS 3RT.3 Size S00, 3RT23 Contactor, 24 V ac Coil, 4-Pole, 18 A, 4 kW, 2NC, 400 V ac
- RS Stock No.:
- 216-2878
- Mfr. Part No.:
- 3RT2316-1AB00
- Manufacturer:
- Siemens
Subtotal (1 unit)**
MYR295.46
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Units | Per Unit |
---|---|
1 + | MYR295.46 |
**price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 216-2878
- Mfr. Part No.:
- 3RT2316-1AB00
- Manufacturer:
- Siemens
Select all | Attribute | Value |
---|---|---|
Brand | Siemens | |
Coil Voltage | 24 V ac | |
Number of Poles | 4 | |
Contact Voltage Rating | 400 V ac | |
Contact Current Rating | 18 A | |
Power Rating | 4 kW | |
Range | SIRIUS 3RT.3 | |
Series | Size S00, 3RT23 | |
Normal State Configuration | 2NC | |
Auxiliary Contact Configuration | 2NO + 2NC | |
Number Of Auxiliary Contacts | 4 | |
Terminal Type | Screw | |
Length | 58mm | |
Width | 45mm | |
Depth | 73mm | |
Better World Claim | Low carbon manufacture | |
Better World Product | Yes | |
Maximum Operating Temperature | +60°C | |
Load Voltage | 400V ac | |
Load Current | 18A | |
Minimum Operating Temperature | -25°C | |
Control Voltage | 24 V ac | |
Mounting Style | DIN Rail | |
Select all | ||
---|---|---|
Brand Siemens | ||
Coil Voltage 24 V ac | ||
Number of Poles 4 | ||
Contact Voltage Rating 400 V ac | ||
Contact Current Rating 18 A | ||
Power Rating 4 kW | ||
Range SIRIUS 3RT.3 | ||
Series Size S00, 3RT23 | ||
Normal State Configuration 2NC | ||
Auxiliary Contact Configuration 2NO + 2NC | ||
Number Of Auxiliary Contacts 4 | ||
Terminal Type Screw | ||
Length 58mm | ||
Width 45mm | ||
Depth 73mm | ||
Better World Claim Low carbon manufacture | ||
Better World Product Yes | ||
Maximum Operating Temperature +60°C | ||
Load Voltage 400V ac | ||
Load Current 18A | ||
Minimum Operating Temperature -25°C | ||
Control Voltage 24 V ac | ||
Mounting Style DIN Rail | ||
