Select all	Attribute	Value
	Brand	Siemens
	Coil Voltage	110 V ac
	Contact Voltage Rating	690 V ac
	Contact Current Rating	3 A
	Range	SIRIUS
	Series	3RH2
	Normal State Configuration	2NC + 2NO
	Number Of Auxiliary Contacts	4
	Auxiliary Contact Configuration	2NO + 2NC
	Terminal Type	Screw
	Length	57.5mm
	Width	45mm
	Depth	73mm
	Mounting Style	DIN Rail
	Control Voltage	110 Vac
	Load Voltage	690V ac
	Minimum Operating Temperature	-25°C
	Maximum Operating Temperature	+60°C

	Select all
	Brand Siemens
	Coil Voltage 110 V ac
	Contact Voltage Rating 690 V ac
	Contact Current Rating 3 A
	Range SIRIUS
	Series 3RH2
	Normal State Configuration 2NC + 2NO
	Number Of Auxiliary Contacts 4
	Auxiliary Contact Configuration 2NO + 2NC
	Terminal Type Screw
	Length 57.5mm
	Width 45mm
	Depth 73mm
	Mounting Style DIN Rail
	Control Voltage 110 Vac
	Load Voltage 690V ac
	Minimum Operating Temperature -25°C
	Maximum Operating Temperature +60°C

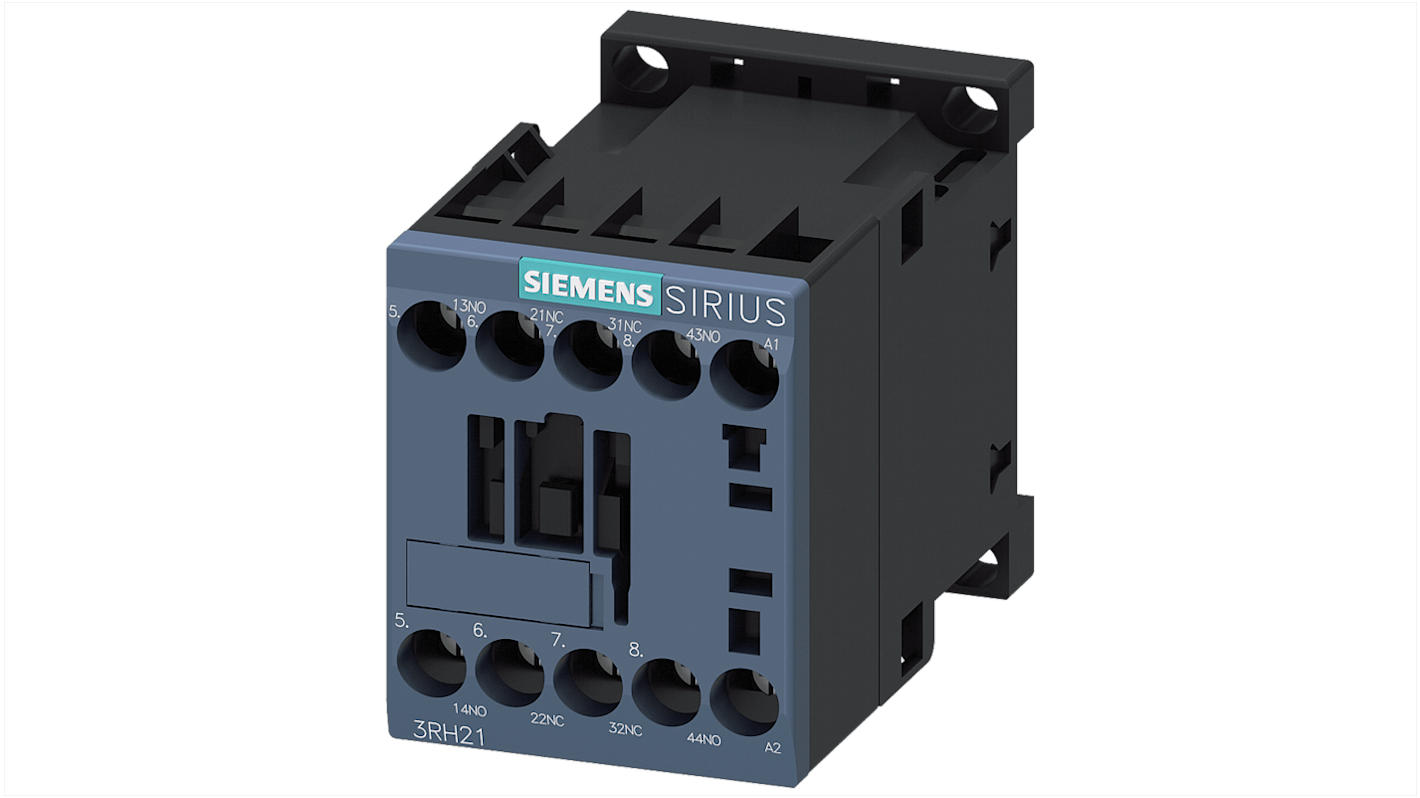

Siemens SIRIUS 3RH2 Contactor Relay, 110 V ac Coil, 3 A, 2NC + 2NO, 690 V ac

FREE delivery for orders over MYR500.00

Siemens 3RH2 Series Contactor Relay, 110V AC Coil Voltage, 3A Current Rating - 3RH2122-1AK60

Features & Benefits

Applications

What is the operational current at different voltage ratings?

How does this device perform in extreme temperatures?

Can this relay be mounted in various orientations?

What are the safety features incorporated into the design?

How many auxiliary contacts can be used simultaneously?
