Select all	Attribute	Value
	Brand	ABB Jokab
	Coil Voltage	24 → 60 V ac
	Number of Poles	3
	Contact Voltage Rating	600 V ac
	Contact Current Rating	25 A
	Power Rating	5.5 kW
	Range	AFS09-30-22-11
	Series	AFS
	Function	Safety
	Normal State Configuration	3NO
	Auxiliary Contact Configuration	2NO + 2NC
	Number Of Auxiliary Contacts	4
	Terminal Type	Screw
	Width	110.5mm
	Length	45mm
	Depth	80mm
	Control Voltage	220 → 240 V ac
	Mounting Style	DIN Rail Mount
	Load Voltage	690V ac
	Load Current	25A
	Minimum Operating Temperature	-40 °C, -25°C
	Pole and Throw Configuration	3P
	Maximum Operating Temperature	+60 °C, +70°C

	Select all
	Brand ABB Jokab
	Coil Voltage 24 → 60 V ac
	Number of Poles 3
	Contact Voltage Rating 600 V ac
	Contact Current Rating 25 A
	Power Rating 5.5 kW
	Range AFS09-30-22-11
	Series AFS
	Function Safety
	Normal State Configuration 3NO
	Auxiliary Contact Configuration 2NO + 2NC
	Number Of Auxiliary Contacts 4
	Terminal Type Screw
	Width 110.5mm
	Length 45mm
	Depth 80mm
	Control Voltage 220 → 240 V ac
	Mounting Style DIN Rail Mount
	Load Voltage 690V ac
	Load Current 25A
	Minimum Operating Temperature -40 °C, -25°C
	Pole and Throw Configuration 3P
	Maximum Operating Temperature +60 °C, +70°C

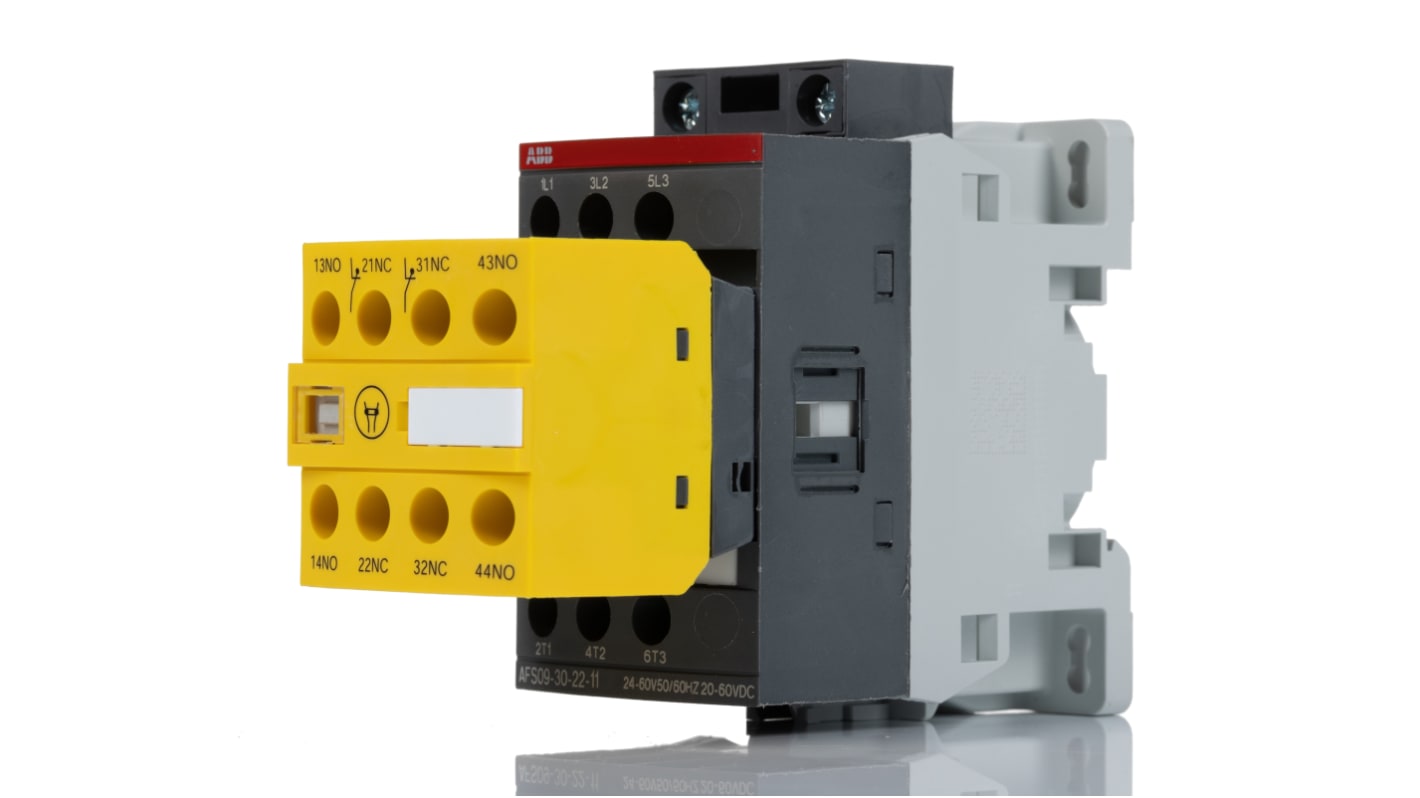

ABB Jokab AFS09-30-22-11 AFS Contactor, 24 → 60 V ac Coil, 3-Pole, 25 A, 5.5 kW, 3NO, 600 V ac

FREE delivery for orders over MYR500.00

ABB Jokab Contactor, 4 Auxiliary Contacts, Screw Terminals - AFS Series - 1SBL137082R1122 AFS09-30-22-11

Features & Benefits

Applications

Do I need to use a surge protector with this contactor?

Related links
