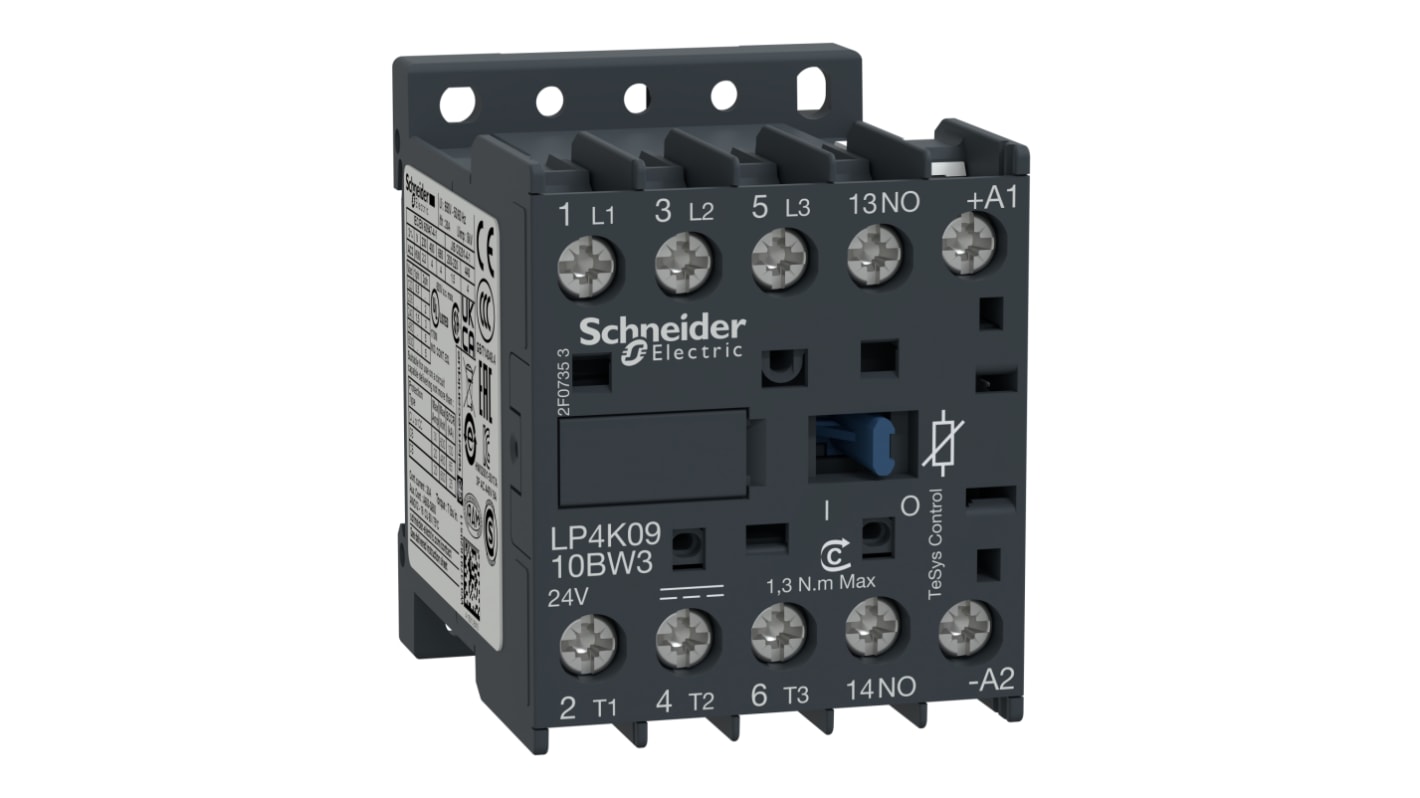

Schneider Electric TeSys K LP4K Contactor, 24 V dc Coil, 3-Pole, 9 A, 4 kW, 3NO, 600 V ac

RS Stock No.:: 759-077
Mfr. Part No.:: LP4K0910BW3
Manufacturer:: Schneider Electric

Schneider Electric TeSys K LP4K Contactor, 24 V dc Coil, 3-Pole, 9 A, 4 kW, 3NO, 600 V ac

Price Each**

MYR241.53

47 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over MYR700.00

Units	Per Unit
1 +	MYR241.53

**price indicative

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS Stock No.:: 759-077
Mfr. Part No.:: LP4K0910BW3
Manufacturer:: Schneider Electric

Schneider Electric LP4K TeSys K Miniature Contactors

TeSys K Silent Miniature Contactors from Schneider Electric combine long mechanical and electrical life to offer a high reliable contactor. The LP4K range are low consumption DC operated contactors recommended for use in areas sensitive to noise and high interference mains supplies. The TeSys K contactors offer quick simple setup while maintaining compliance with international standards. A special armature structure design allows all devices in the range to have the same physical size and panel footprint for convenience.

Features and Benefits

• Built-in auxiliary contacts for added switching capability

• Screw connections: IP20 finger-safe terminals with both North American and International terminal markings

• Can be panel mounted with screws or DIN Rail mounted

• Coil with rectifier incorporated

• Easily installed accessories

• Instantaneous auxiliary contact

• Flexible control circuit to suit a wide range of applications

• High-fault short circuit current ratings provide the flexibility to select any component

What does the utilisation category AC1 and AC3 mean for the TeSys contactors?

Contactor utilisation categories define the current making and breaking values, based on the type of load to be controlled and the operating cycle conditions.

AC-1: This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution.

AC-3: This applies to squirrel cage motors where breaking occurs while the motor is running.

Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units.

Are the TeSys K contactors suitable for applications in AC4 usage?

The LP4K series is suitable up to a maximum of 440 V ac in category AC4.

Is the TeSys K range a double break pole type contactor?

Yes the TeSys K range uses linear translation movement that provides double breaking of the poles.

Schneider Electric LP4K0910BW3 Miniature Contactor

The LP4K0910BW3 is a miniature 3 pole low consumption contactor featuring a 24 V dc operating coil, an AC-3 full load current of 9 A and a normally open auxiliary contact.

Features & Benefits

• Auxiliary contact configuration of 1NO ensures versatility in control options.
• Screw terminal type for easy and secure connections.
• 3 pole contact configuration for efficient power distribution.
• Green Premium verification ensures environmentally friendly operation.
• Compact design with dimensions of 57.91mm x 45mm x 56.8mm for space-saving installation.

Applications

• Ideal for use in motor control applications.
• Suitable for automation, electronics, electrical, and mechanical industries.
• Used with TeSys K series components for seamless integration.

Can it be used for controlling multiple motors simultaneously?

Yes, this contactor is equipped with 3 pole contact configuration, allowing for control of multiple motors with ease.

Will it support different coil voltages other than 24V DC?

No, this contactor is specifically designed for use with a 24V DC coil voltage for optimal performance.

Is it compatible with other contactor series from Schneider Electric?

This contactor is part of the TeSys K series and is fully compatible with other components within the same series for comprehensive control solutions.

Can it be used in outdoor applications?

While this contactor has an IP20 degree of protection, it is recommended for indoor use in normal environmental conditions.

Does it have any mercury content?

No, this contactor is mercury-free and complies with environmental regulations for safe operation.

Schneider Electric K Range Special Purpose

Attribute	Value
Coil Voltage	24 V dc
Number of Poles	3
Contact Voltage Rating	600 V ac
Contact Current Rating	9 A
Power Rating	4 kW
Series	LP4K
Range	TeSys K
Function	Motor Control
Normal State Configuration	3NO
Number Of Auxiliary Contacts	1
Auxiliary Contact Configuration	1NO
Terminal Type	Screw
Width	45mm
Length	58mm
Depth	57mm
Better World Verification	Green Premium
Better World Product	Yes
Pole and Throw Configuration	3P
Mounting Style	Rail
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+50°C
