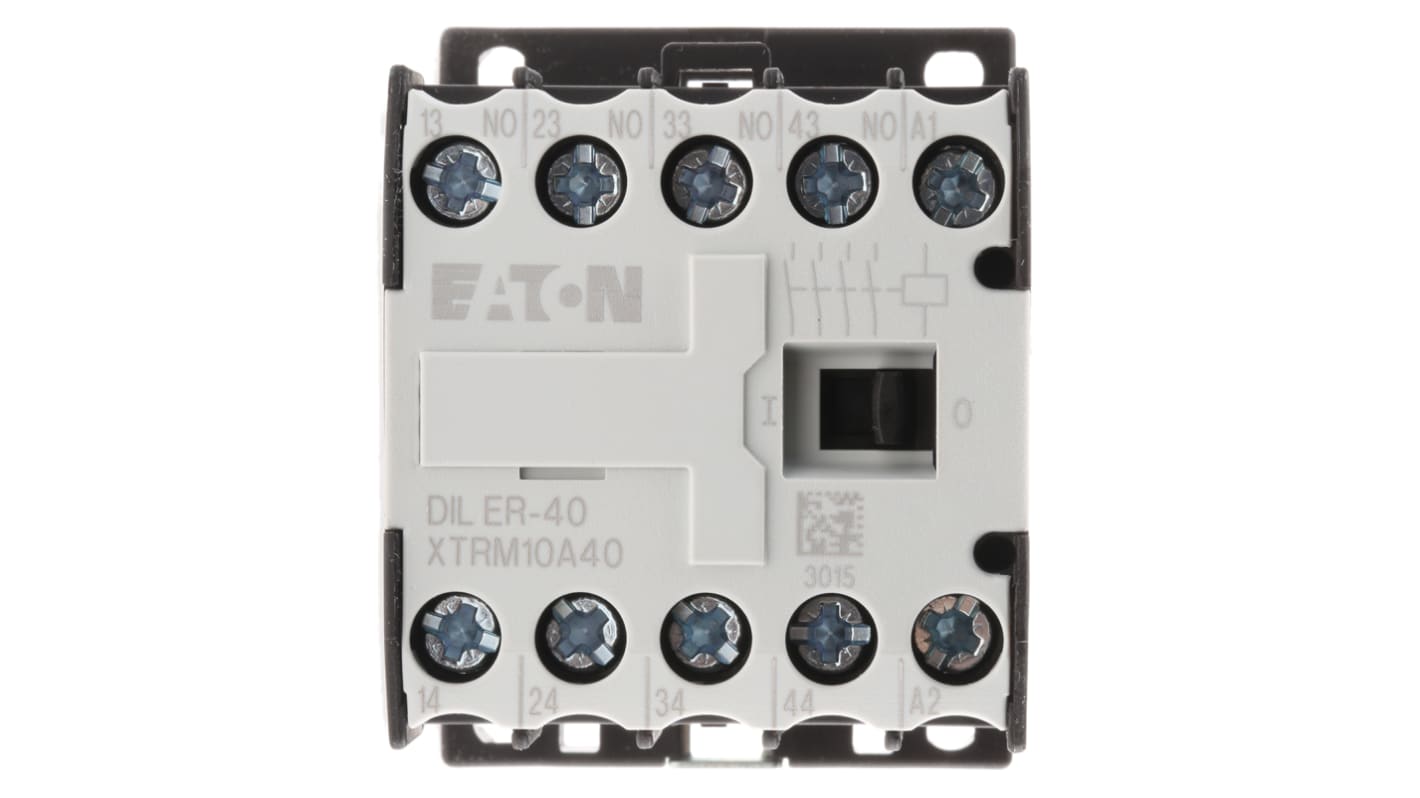

Eaton DILER Contactor, 24V dc Coil, 4-Pole, 3 A 24V dc, 4 NO, 400V ac

RS Stock No.:: 323-072
Distrelec Article No.:: 136-22-426
Mfr. Part No.:: 010094 DILER-40(24V50HZ)
Manufacturer:: Eaton

Eaton DILER Contactor, 24V dc Coil, 4-Pole, 3 A 24V dc, 4 NO, 400V ac

Subtotal (1 unit)*

MYR290.32

Stock information currently inaccessible - Please check back later

Units	Per Unit
1 +	MYR290.32

*price indicative

RS Stock No.:: 323-072
Distrelec Article No.:: 136-22-426
Mfr. Part No.:: 010094 DILER-40(24V50HZ)
Manufacturer:: Eaton

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Eaton
	Product Type	Contactor
	Coil Voltage	24V dc
	Number of Poles	4
	Contact Voltage	400V ac
	Contact Current	3A
	Series	DILER
	Function	Motor Switching, Power Switching
	Mount Type	DIN Rail
	Normal State Configuration	4 NO
	Terminal Type	Screw
	Contactor Application	Power Switching, Motor Switching
	Operational Current Ie	10A
	Control Circuit Voltage Uc	24V dc
	Minimum Operating Temperature	-25°C
	Maximum Operating Temperature	50°C
	Depth	52mm
	Width	45mm
	Length	58mm
	Standards/Approvals	VDE 0660, UL, IEC/EN 60947, EN 60947-5-1, CSA
	Pole and Throw Configuration	4

	Select all
	Brand Eaton
	Product Type Contactor
	Coil Voltage 24V dc
	Number of Poles 4
	Contact Voltage 400V ac
	Contact Current 3A
	Series DILER
	Function Motor Switching, Power Switching
	Mount Type DIN Rail
	Normal State Configuration 4 NO
	Terminal Type Screw
	Contactor Application Power Switching, Motor Switching
	Operational Current Ie 10A
	Control Circuit Voltage Uc 24V dc
	Minimum Operating Temperature -25°C
	Maximum Operating Temperature 50°C
	Depth 52mm
	Width 45mm
	Length 58mm
	Standards/Approvals VDE 0660, UL, IEC/EN 60947, EN 60947-5-1, CSA
	Pole and Throw Configuration 4

COO (Country of Origin):: DE

Eaton DILER Series Contactor, 3A Contact Current Rating, 4 Poles - 010094 DILER-40(24V50HZ)

This Eaton DILER series control relay operates at a coil voltage of 24V DC with a compact design of 52mm depth, suitable for various installations. It features a rated operational voltage of up to 600V AC and a current of 10A. The relay has a mechanical endurance of 10 million operations under specified conditions, ensuring reliability and longevity.

Features & Benefits

• Positive operating contacts for reliable performance

• Interlocked opposing contacts for enhanced safety

• Rated operational current of 10A for flexibility

• IP20 protection against direct contact

• DIN rail mounting for space-saving installation

• 10 million operations lifespan for durability

Applications

• Motor control in industrial settings

• Automation and control systems

• Switching loads in electrical panels

Can it handle environments with varying temperatures?

Yes, it operates efficiently between -25°C and +50°C.

What is the rated control supply voltage for this device?

The rated control supply voltage is 24 V at AC, 50 Hz.
