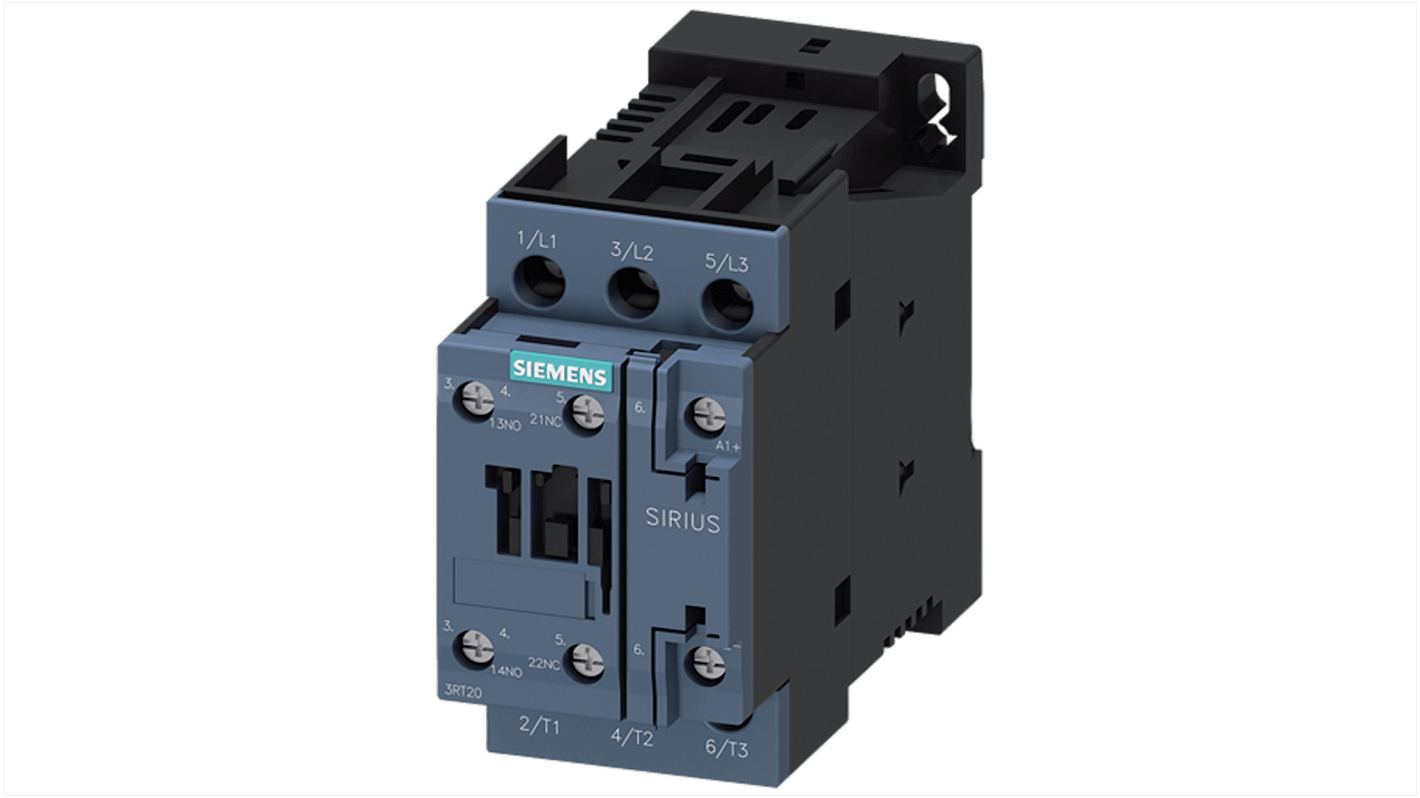

Siemens 3RT Contactor, 12V dc Coil, 3-Pole, 13 A, 11 kW 12V dc, 1 NO/1 NC, 690V

View all Contactors

Subtotal (1 unit)*

MYR791.31

Add to Basket
Select or type quantity
Stocked by manufacturer
  • Ready to ship from 26 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per Unit
1 +MYR791.31

*price indicative

RS Stock No.:
159-778
Mfr. Part No.:
3RT2025-1BA40
Manufacturer:
Siemens
Find similar products by selecting one or more attributes.
Select all

Brand

Siemens

Coil Voltage

12V dc

Product Type

Contactor

Number of Poles

3

Contact Voltage

690V

Contact Current

13A

Series

3RT

Power Rating

11kW

Mount Type

DIN Rail

Function

Multifunction

Normal State Configuration

1 NO/1 NC

Auxiliary Contact Configuration

1 NO/1 NC

Number of Auxiliary Contacts

2

Terminal Type

Screw

Control Circuit Voltage Uc

12V dc

Contactor Application

Power Contactor

Minimum Operating Temperature

-25°C

Operational Current Ie

13A

Maximum Operating Temperature

60°C

Standards/Approvals

IEC 61508-2, IP20, ISO 13849-1, PRS, RCM, RMRS, UKCA, UL, ABS, CCC, CE, CSA, DNV, EAC, IEC 60529, IEC 60947-4-1, IEC61508

Width

45mm

Depth

107mm

Length

85mm

Pole and Throw Configuration

3

The Siemens Power Contactor offers exceptional performance in controlling electrical loads with reliability and efficiency. With a robust construction and advanced technical features, it is adept in applications requiring frequent on/off cycles, making it ideal for both industrial and commercial use. This device boasts a long mechanical service life, ensuring minimal disruptions in operations. Furthermore, its compact size facilitates easy integration into existing installations.

High ambient temperature operation

Long service life

Secure screw terminal connections

Wide voltage range

Auxiliary contacts

IP20 protection

DIN rail mounting

Safety standard compliant
