제조사부품번호

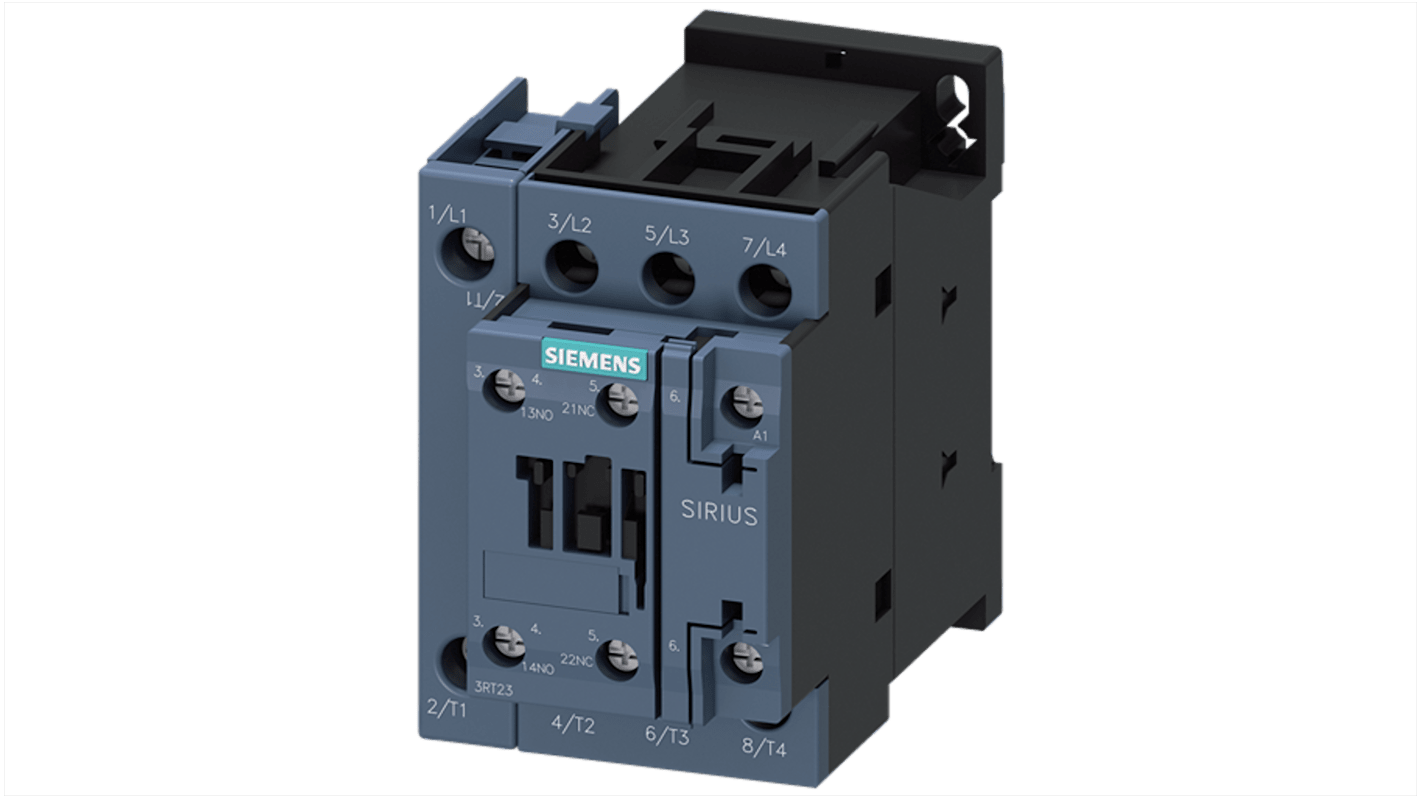

Siemens 3RT23 Contactor, 110V ac, 120 V ac Coil, 4-Pole, 35 A, 7.5 kW 120V ac, 1 NO/1 NC, 690V

RS 제품 번호:: 154-562
제조사 부품 번호:: 3RT2325-1AK60
제조업체:: Siemens

Siemens 3RT23 Contactor, 110V ac, 120 V ac Coil, 4-Pole, 35 A, 7.5 kW 120V ac, 1 NO/1 NC, 690V

Subtotal (1 unit)*

₩334,420.00

제조사가 재고 비축중

2026년 10월 01일 부터 배송 준비 완료

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩334,420.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 154-562
제조사 부품 번호:: 3RT2325-1AK60
제조업체:: Siemens

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Siemens
	Coil Voltage	110, 120V ac
	Product Type	Contactor
	Number of Poles	4
	Contact Voltage	690V
	Contact Current	35A
	Series	3RT23
	Power Rating	7.5kW
	Mount Type	DIN Rail
	Function	Mirror Contact
	Normal State Configuration	1 NO/1 NC
	Auxiliary Contact Configuration	1 NO/1 NC
	Number of Auxiliary Contacts	2
	Terminal Type	Screw
	Operational Current Ie	35A
	Contactor Application	Contactor
	Minimum Operating Temperature	-25°C
	Control Circuit Voltage Uc	120V ac
	Maximum Operating Temperature	60°C
	Width	60mm
	Depth	97mm
	Length	85mm
	Standards/Approvals	UKCA, UL, CCC, IEC 60947-4-1, IEC61508, IP20, PRS, RCM, RMRS, IEC 60529, CE, CSA, DNV, EAC
	Pole and Throw Configuration	4

	모두 선택
	브랜드 Siemens
	Coil Voltage 110, 120V ac
	Product Type Contactor
	Number of Poles 4
	Contact Voltage 690V
	Contact Current 35A
	Series 3RT23
	Power Rating 7.5kW
	Mount Type DIN Rail
	Function Mirror Contact
	Normal State Configuration 1 NO/1 NC
	Auxiliary Contact Configuration 1 NO/1 NC
	Number of Auxiliary Contacts 2
	Terminal Type Screw
	Operational Current Ie 35A
	Contactor Application Contactor
	Minimum Operating Temperature -25°C
	Control Circuit Voltage Uc 120V ac
	Maximum Operating Temperature 60°C
	Width 60mm
	Depth 97mm
	Length 85mm
	Standards/Approvals UKCA, UL, CCC, IEC 60947-4-1, IEC61508, IP20, PRS, RCM, RMRS, IEC 60529, CE, CSA, DNV, EAC
	Pole and Throw Configuration 4

Datasheet - 3RT2325-1AK60

COO (Country of Origin):: DE

The Siemens contactor is engineered for high performance and reliability in various industrial applications. Its robust design ensures it can handle operational currents of up to 35 A while maintaining superior efficiency and durability. Ideal for both AC and DC control circuits, this device integrates advanced features to ensure safety and compliance with international standards. With optimal ambient temperature ranges and humidity specifications, this contactor excels in diverse environmental conditions, making it a key component in industrial automation systems. Its compact size and versatile installation options further enhance its usability, allowing for seamless integration into existing setups. Through rigorous testing and adherence to safety certifications, this contactor guarantees long-lasting performance and operational excellence.

High shock resistance ensures structural integrity

Multiple auxiliary contact options available

Meets environmental compliance standards

Optimised energy efficiency with low power loss

Easily mounts on standard DIN rails
